Description
Clip And Fastener: Description
Clips and fasteners correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

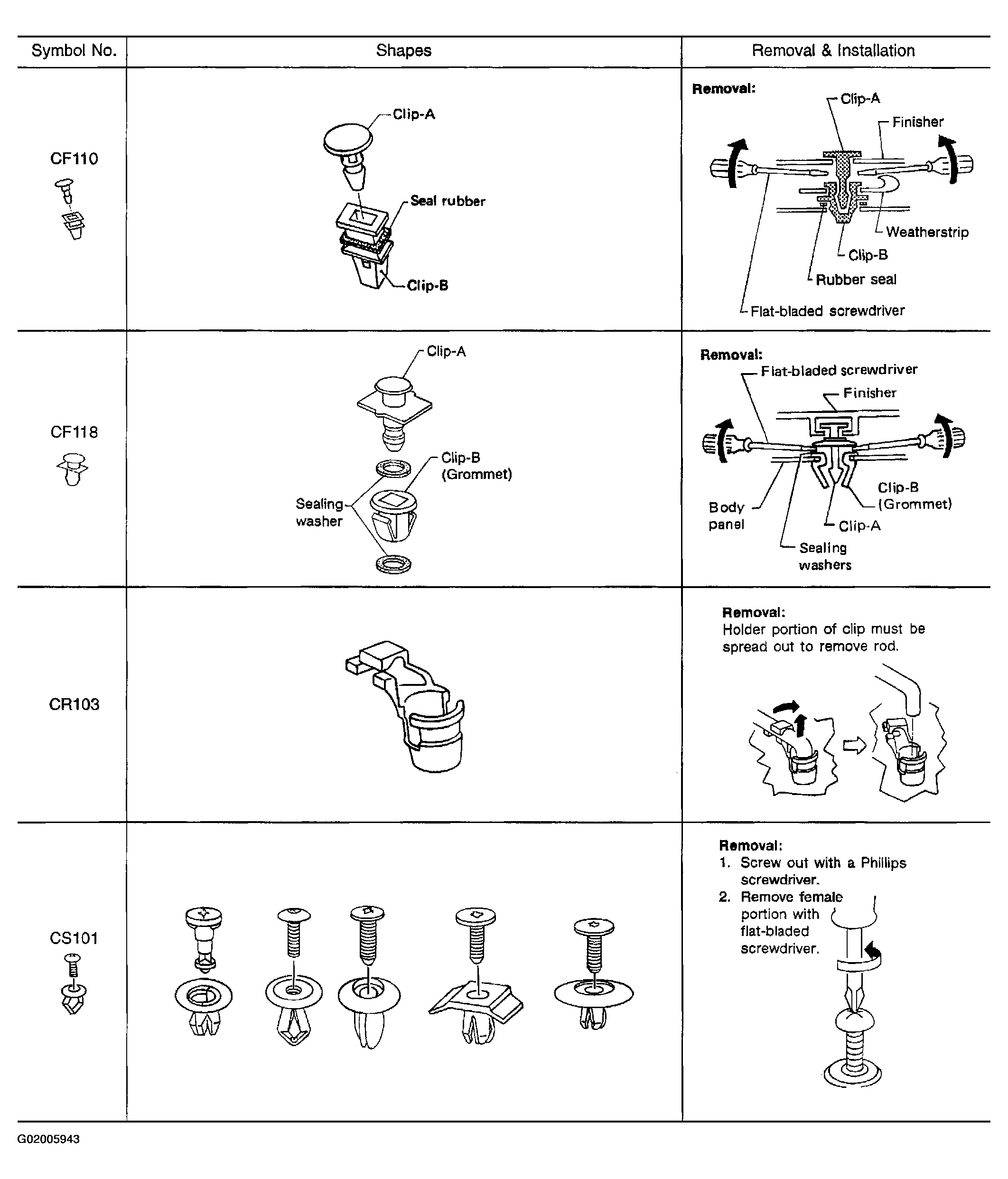

Fig 1: Identifying Clips And Fasteners Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

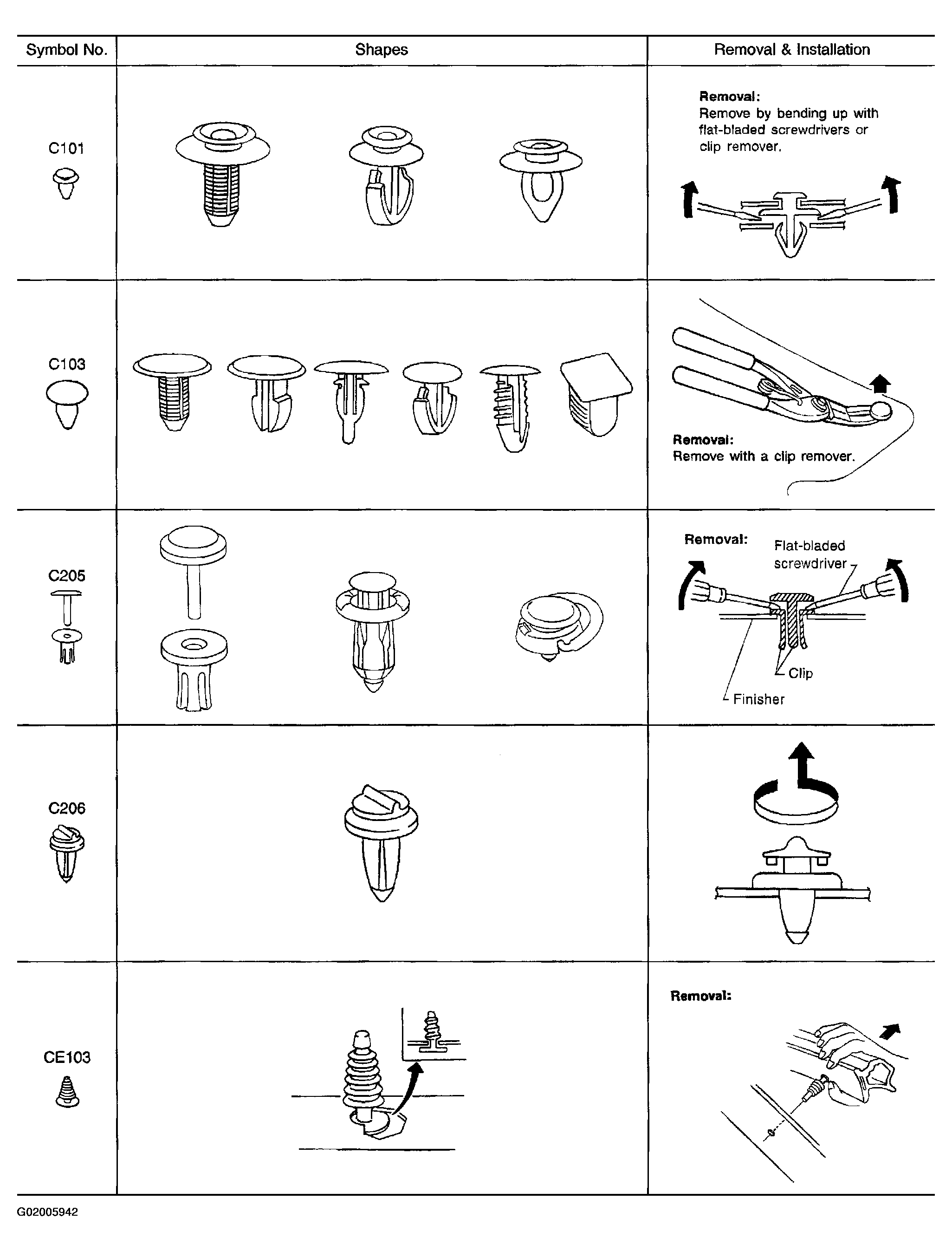

Fig 2: Identifying Clips And Fasteners Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
