Rear Bumper Assembly

  1. Remove screws securing left and right rear fenders to bumper fascia. A
  2. Remove screws securing left and right rear fenders to bumper fascia lower side. B
  3. Remove trunk room trim. Refer to "TRUNK ROOM TRIM  ".
  4. Working from inside trunk, remove nuts securing rear combination lamp assembly, then disconnect harness connectors. D
  5. Working from inside trunk, remove jack then remove nuts securing jack bracket. E
  6. Working from inside trunk, remove bolts securing left and right rear fenders to bumper fascia. F
  7. Working from inside trunk, remove nuts securing left and right rear fenders to bumper fascia. G
  8. Remove clips securing left and right rear bumper bracket assembly to bumper fascia. H
  9. Extract rear bumper fascia assembly after removing the clamps securing it, and then disconnect side marker lamp harness connectors. J
  10. Remove energy absorber.
  11. Remove nuts securing bumper reinforcement to left and right bumper stays. K
  12. Extract bumper reinforcement.
  13. Remove nuts securing bumper stays, then remove the bumper stays. L

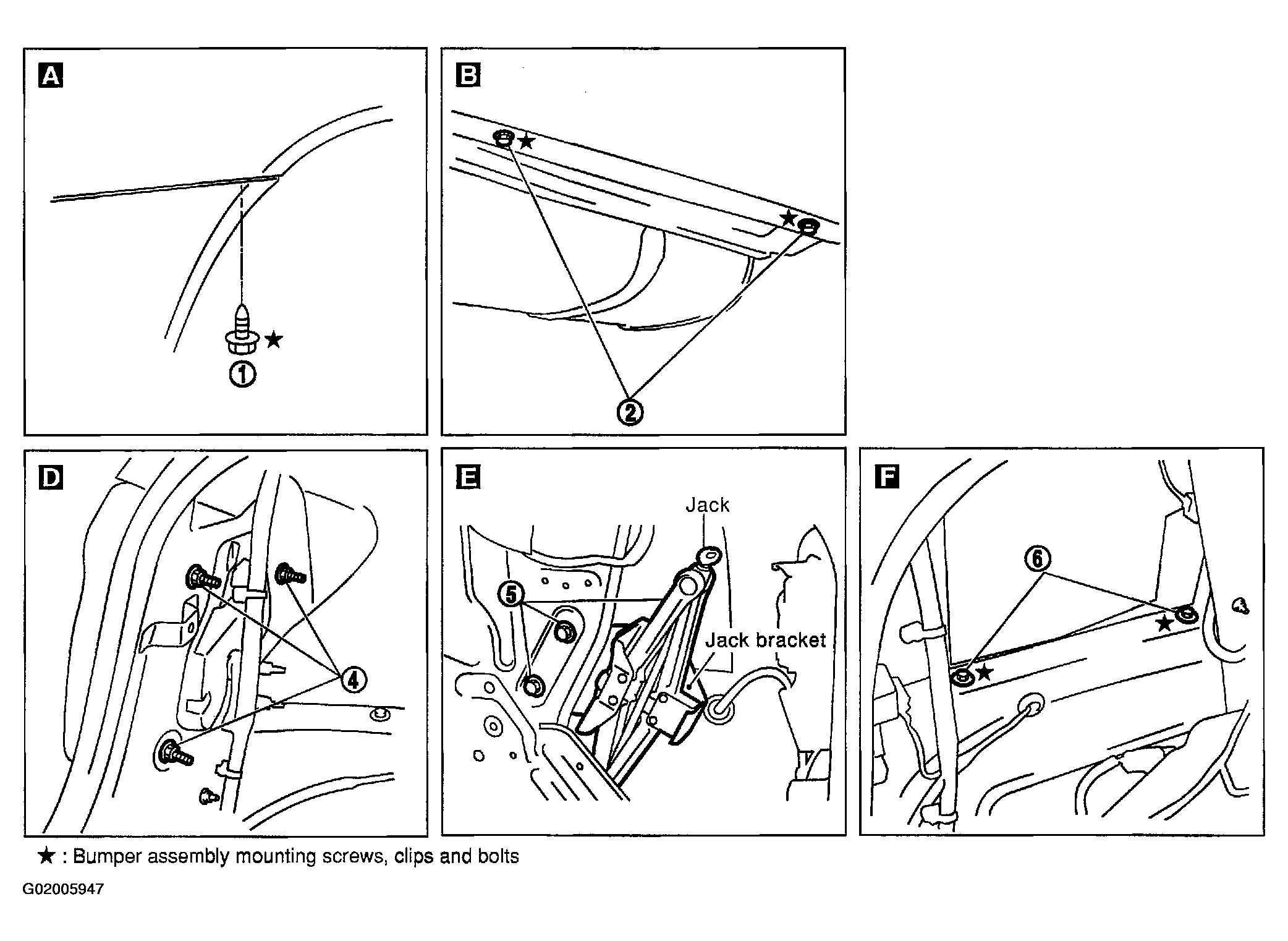

    Fig 1: Removing And Installing Body Rear End And Opener Assembly (1 Of 5)
    G02005947Courtesy of NISSAN MOTOR CO., U.S.A.

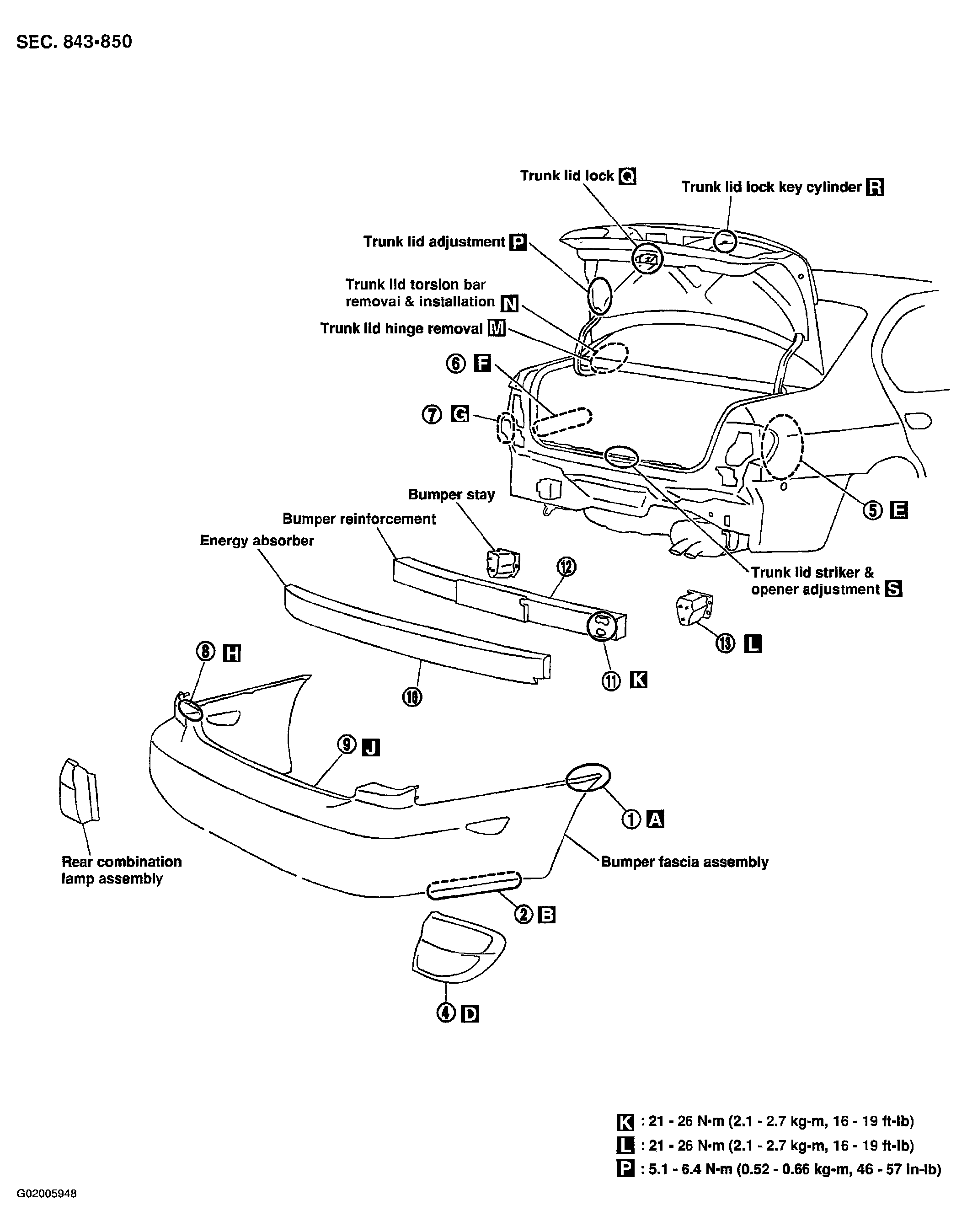

    Fig 2: Removing And Installing Body Rear End And Opener Assembly (2 Of 5)
    G02005948Courtesy of NISSAN MOTOR CO., U.S.A.

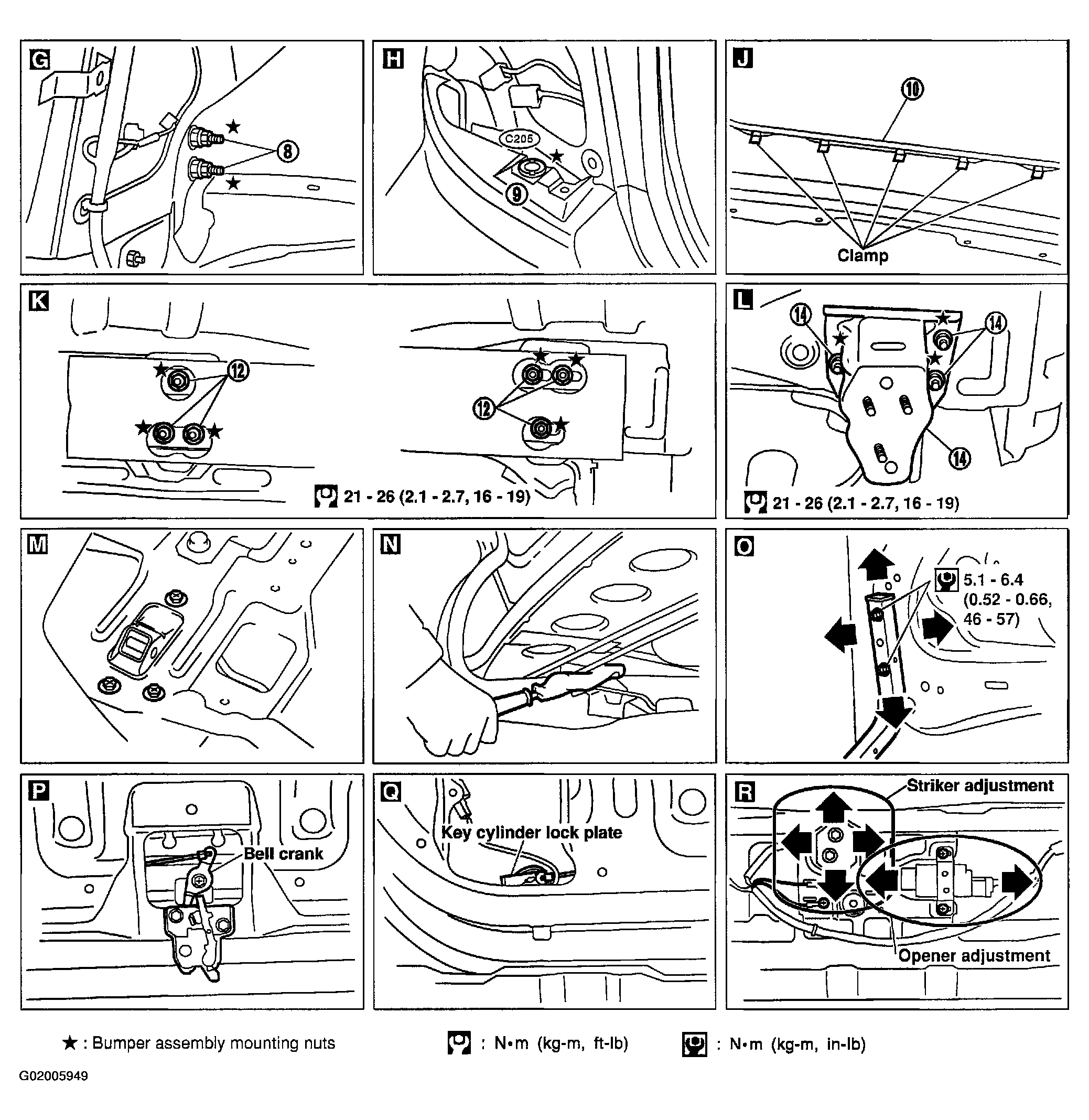

    Fig 3: Removing And Installing Body Rear End And Opener Assembly (3 Of 5)
    G02005949Courtesy of NISSAN MOTOR CO., U.S.A.
