Front Bumper Assembly

  1. Remove clips securing engine undercover to bumper fascia. A
  2. Remove clips and bolts securing left and right sides of front fender protectors. B
  3. Remove screws and clips securing left and right sides of front fender protectors. C
  4. Remove clips and screws securing left and right sides of front fender protectors in wheelhouse. D
  5. Remove screws securing left and right front fenders to bumper fascia. E
  6. Remove clips securing bumper fascia. F
  7. Extract bumper fascia assembly, then disconnect fog lamp assembly and side marker lamp harness connectors.
  8. Remove energy absorber.
  9. Remove bolts and hook securing headlamp assembly, then disconnect harness connectors. G
  10. Remove nuts securing bumper reinforcement to left and right bumper stays. H
  11. Extract bumper reinforcement.
  12. Remove bolts and nuts securing front bumper bracket. J
  13. Remove bolts and nut securing bumper stays, then remove the bumper stays. K

    Fog lamp assembly

  14. Remove bolt securing fog lamp assembly. L
  15. Extract fog lamp assembly. L

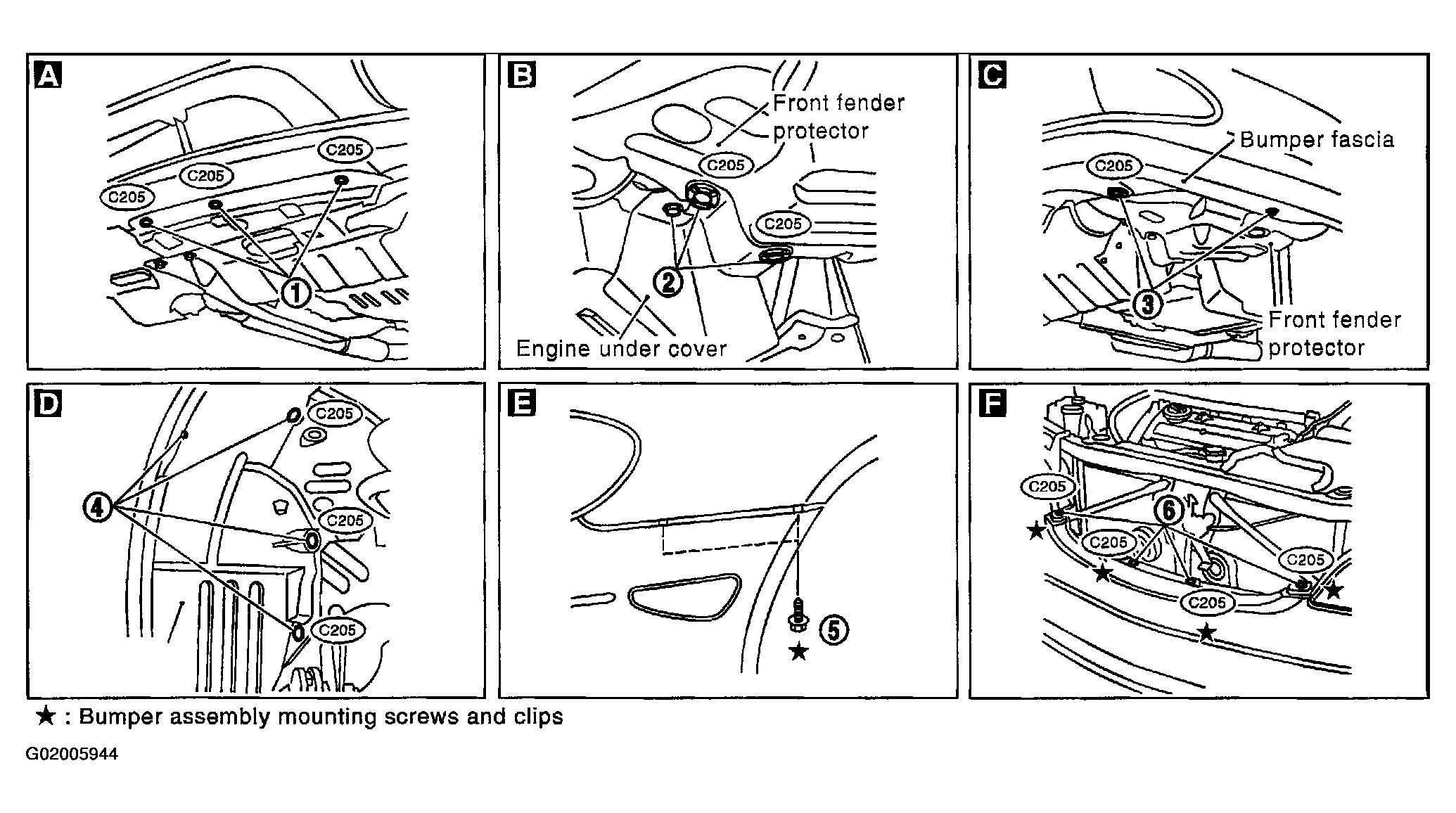

    Fig 1: Removing And Installing Front Bumper Assembly (1 Of 3)
    G02005944Courtesy of NISSAN MOTOR CO., U.S.A.

    *: Bumper assembly mounting screws and clips

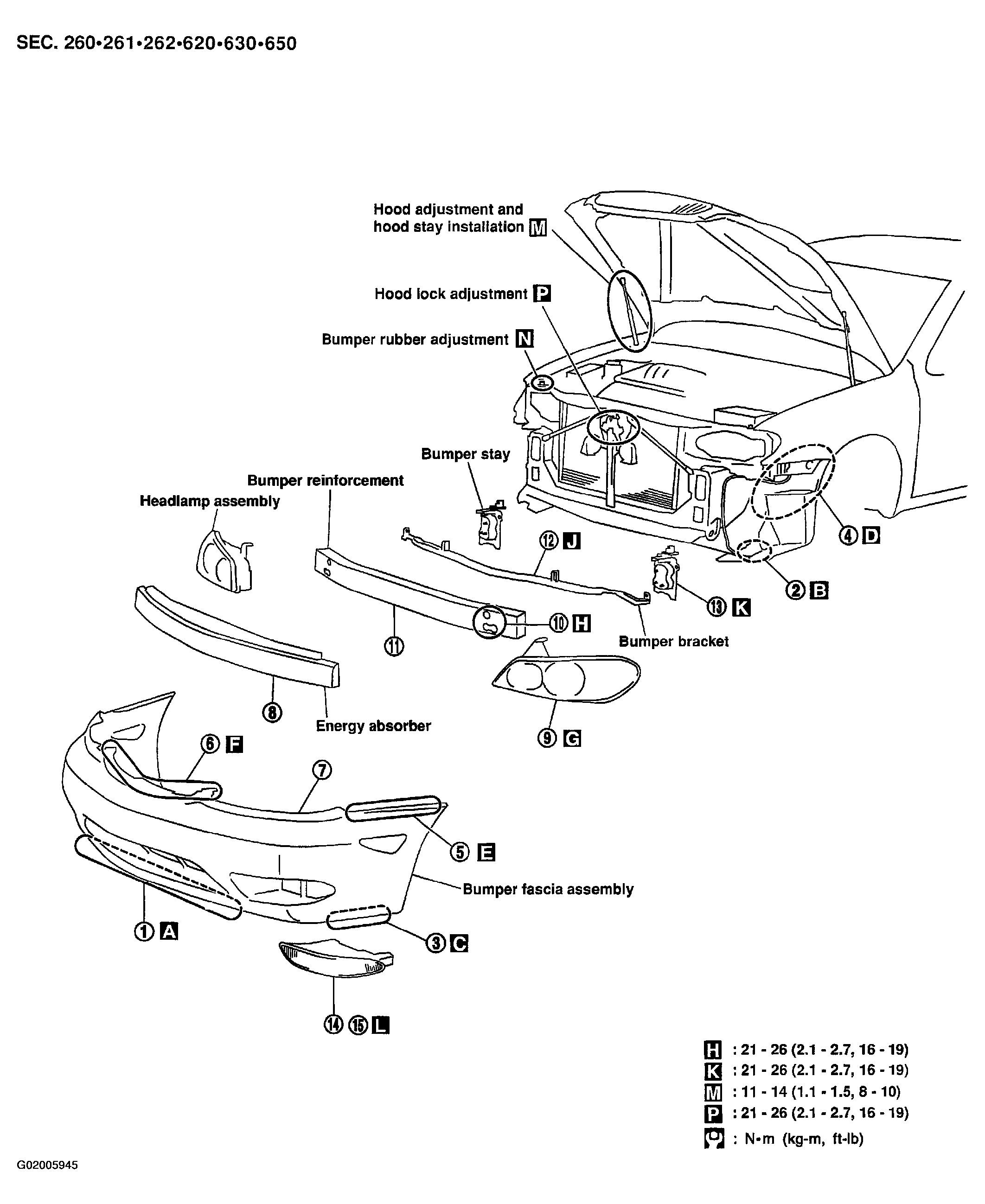

    Fig 2: Removing And Installing Front Bumper Assembly (2 Of 3)
    G02005945Courtesy of NISSAN MOTOR CO., U.S.A.

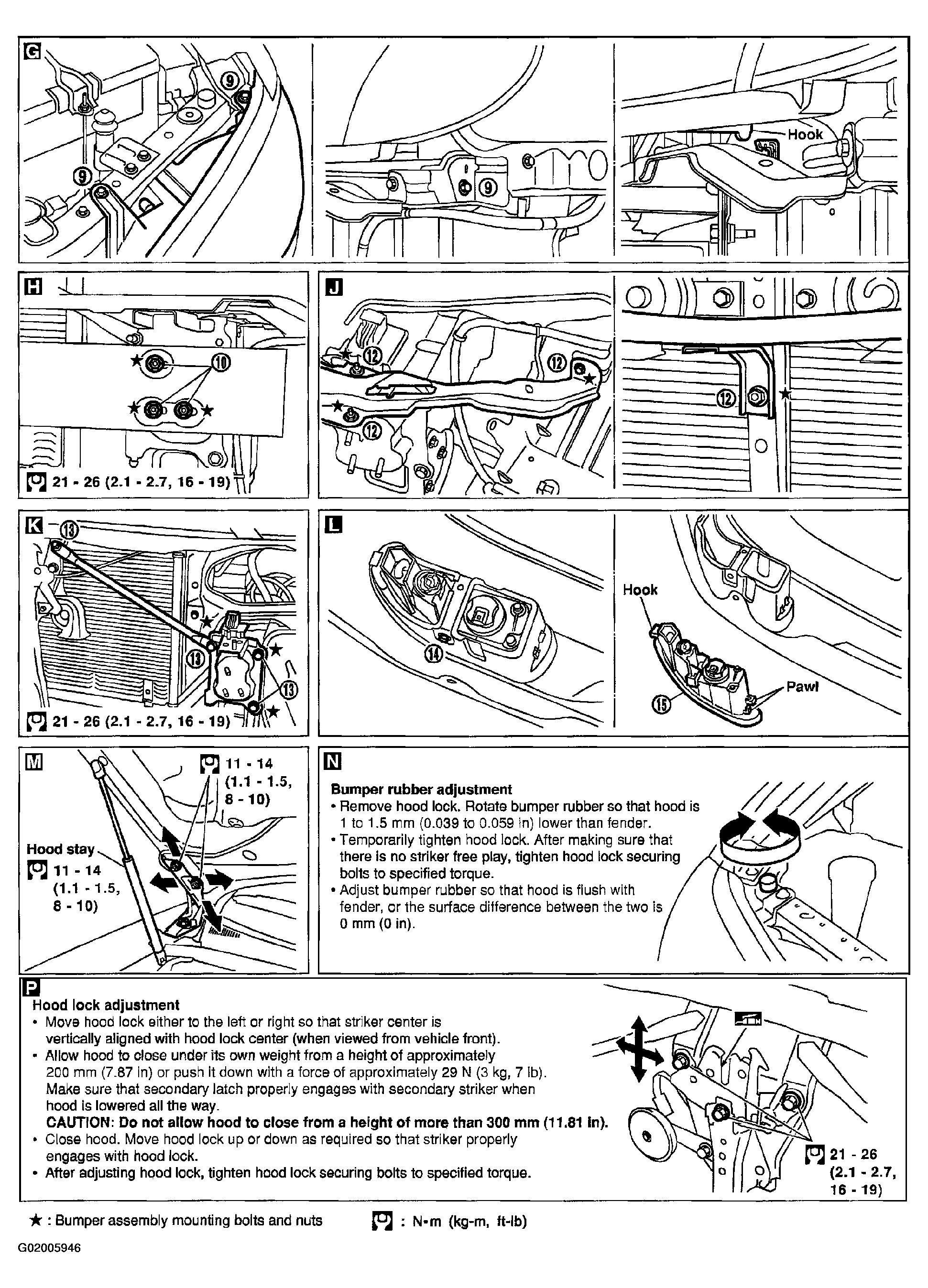

    Fig 3: Removing And Installing Front Bumper Assembly (3 Of 3)
    G02005946Courtesy of NISSAN MOTOR CO., U.S.A.
