Rear Suspension Parts

Check rear axle and rear suspension parts for excessive play, wear and damage.

1. Shake each rear wheel to check for excessive play.
2. Retighten all nuts and bolts to the specified torque.

   Tightening torque: Refer to "Coil Spring and Shock Absorber"  .

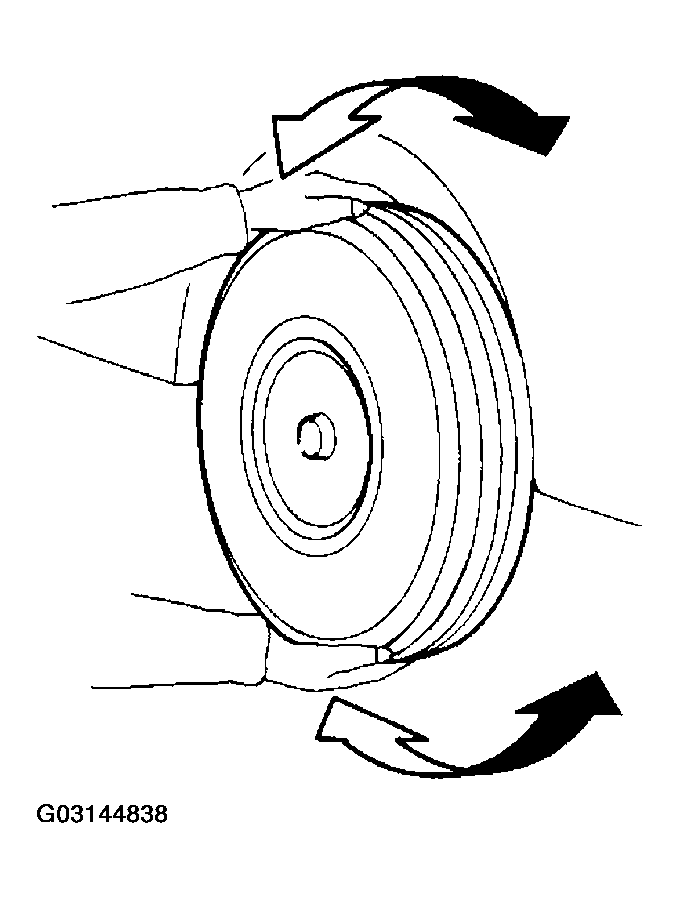

   Fig 1: Checking Rear Suspension Parts For Excessive Play


3. Check shock absorber for oil leakage and other damage.
4. Check shock absorber bushing for excessive wear and other damage.
5. Check wheelarch height.

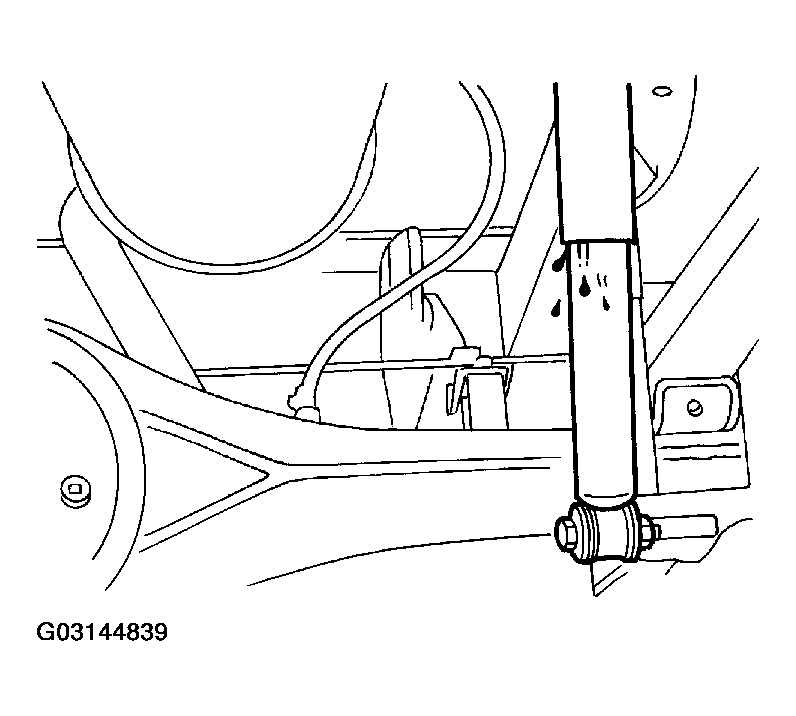

Fig 2: Checking Shock Absorber For Oil Leakage
