Bushing Replacement

Check for cracks and other damage. Replace with suitable tool if necessary.

Remove bushing with suitable tool.

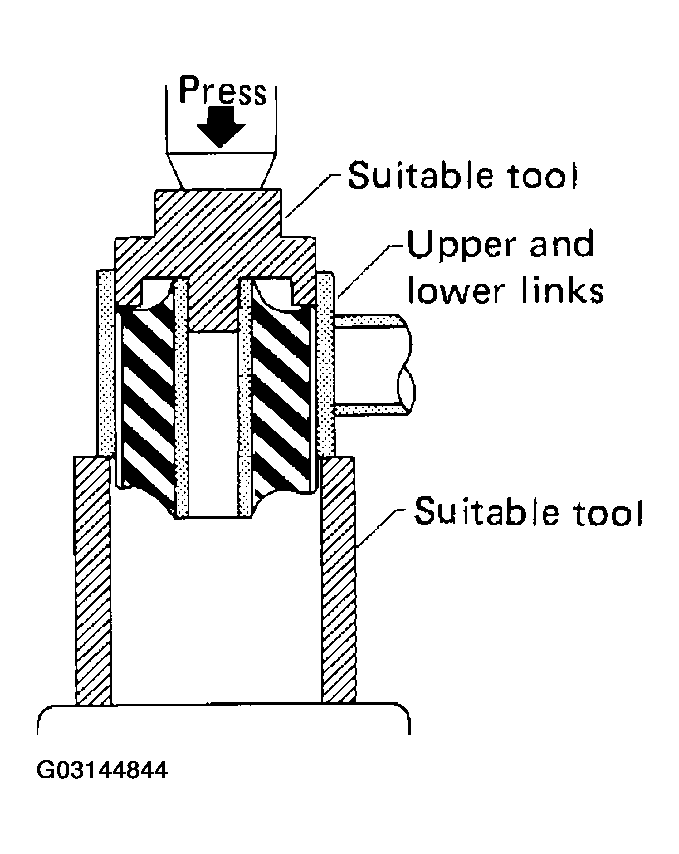

Fig 1: Removing Bushing

When installing bushing, apply a coat of 1% soapy water to outer wall of bushing. Always install new bushing. Do not tap end face of bushing directly with a hammer.

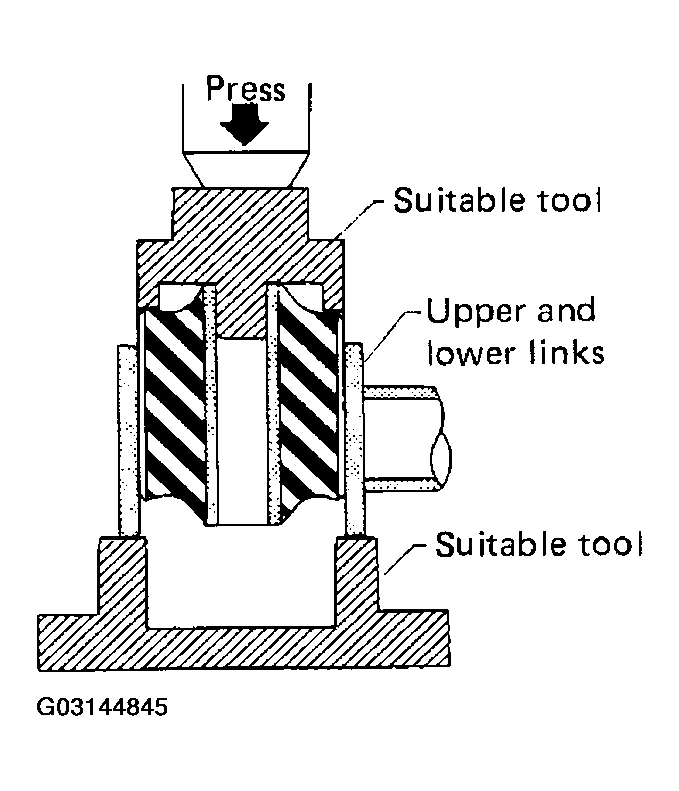

Fig 2: Installing Bushing
