Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

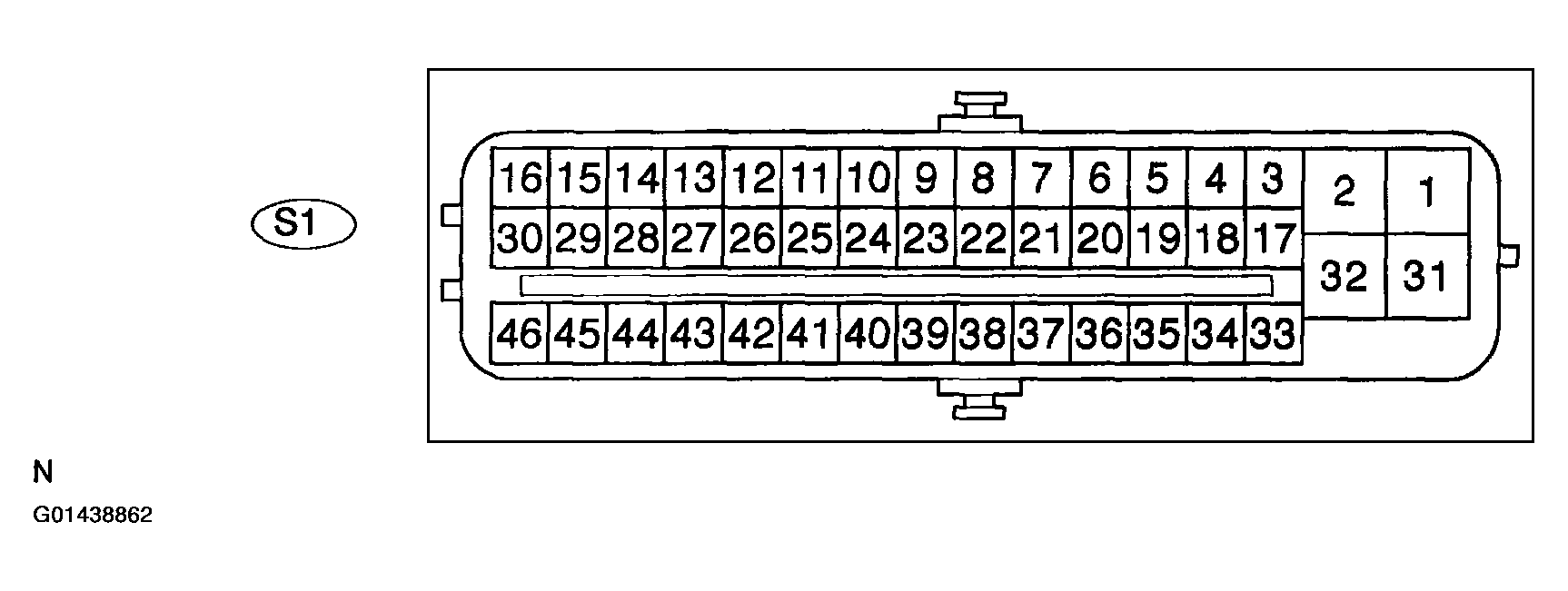

Fig 1: Identifying ABS W/EBD & BA & TRAC & VSC Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

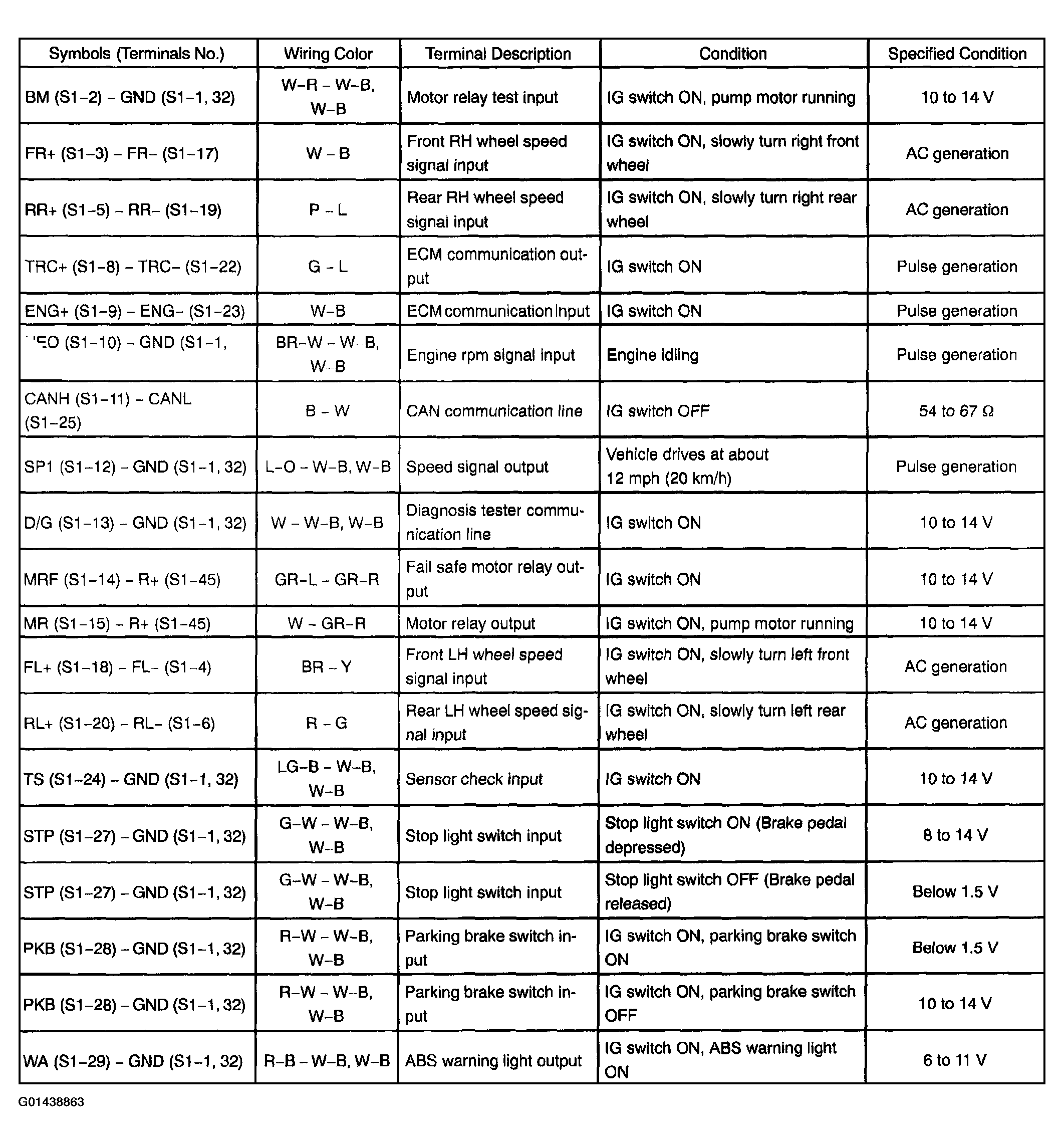

Fig 2: ABS W/EBD & BA & TRAC & VSC Specifications Chart (1 Of 2)

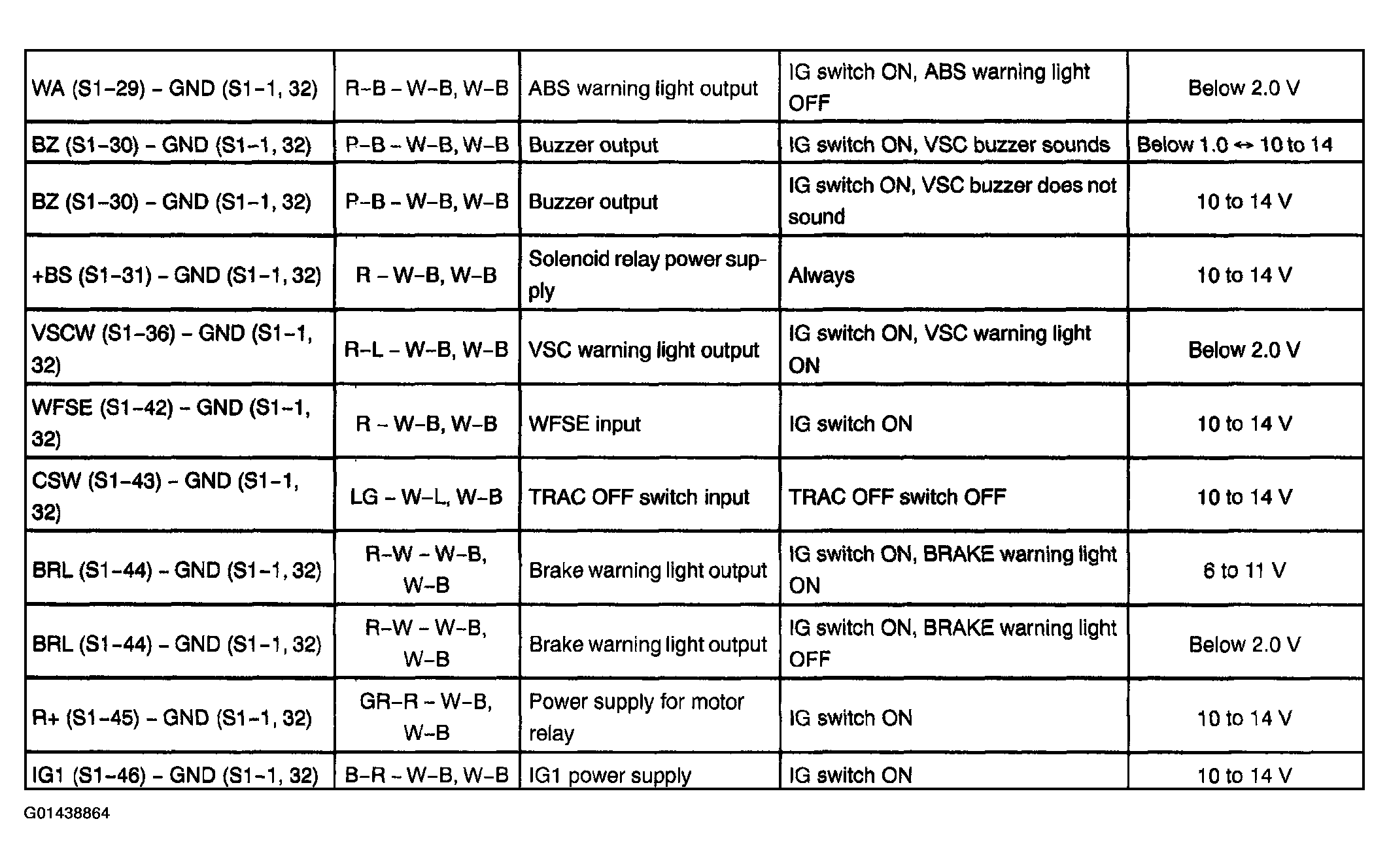

Fig 3: ABS W/EBD & BA & TRAC & VSC Specifications (2 Of 2)
