Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, see the respective "DTC No." in Fig 1 and Fig 2 .

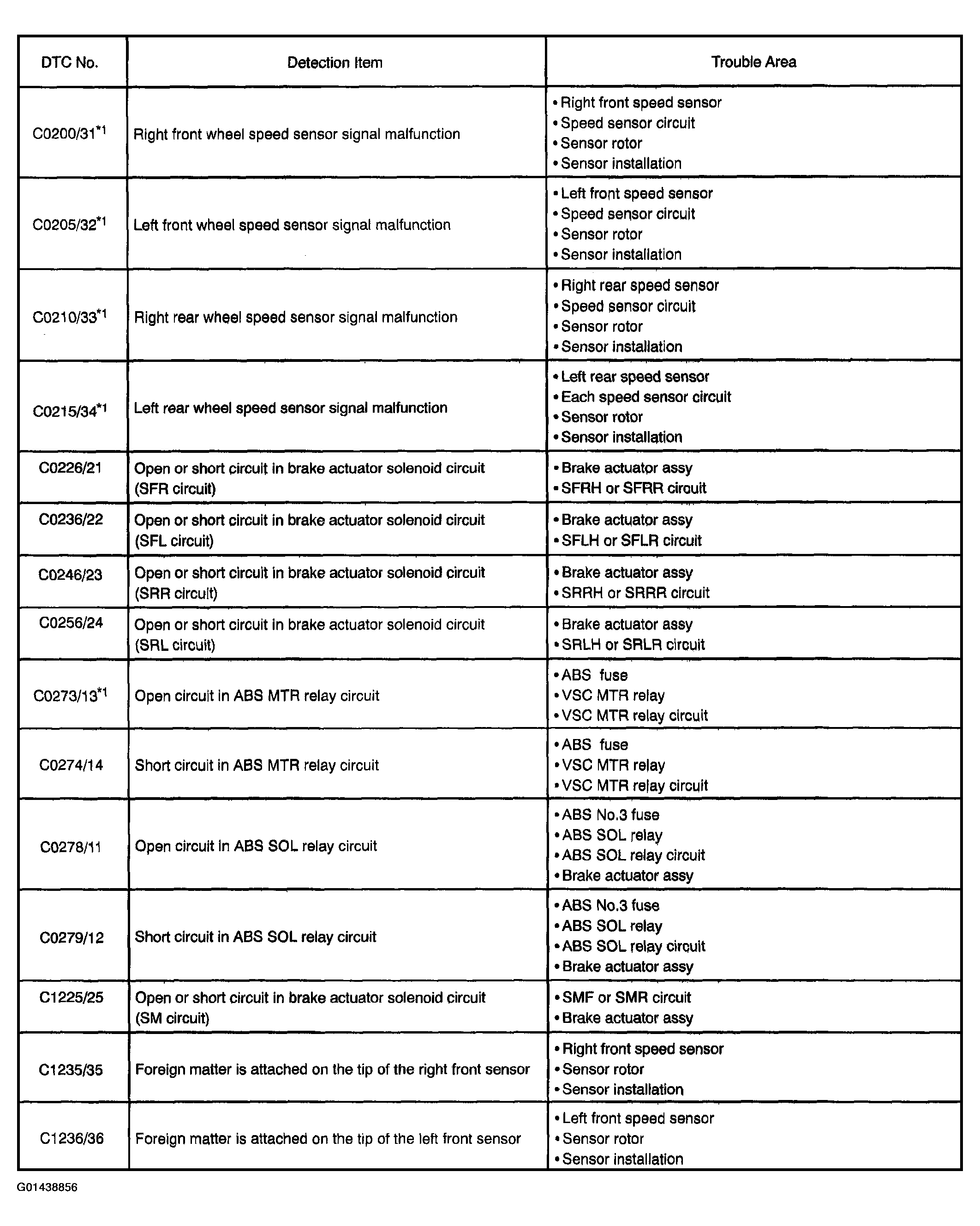

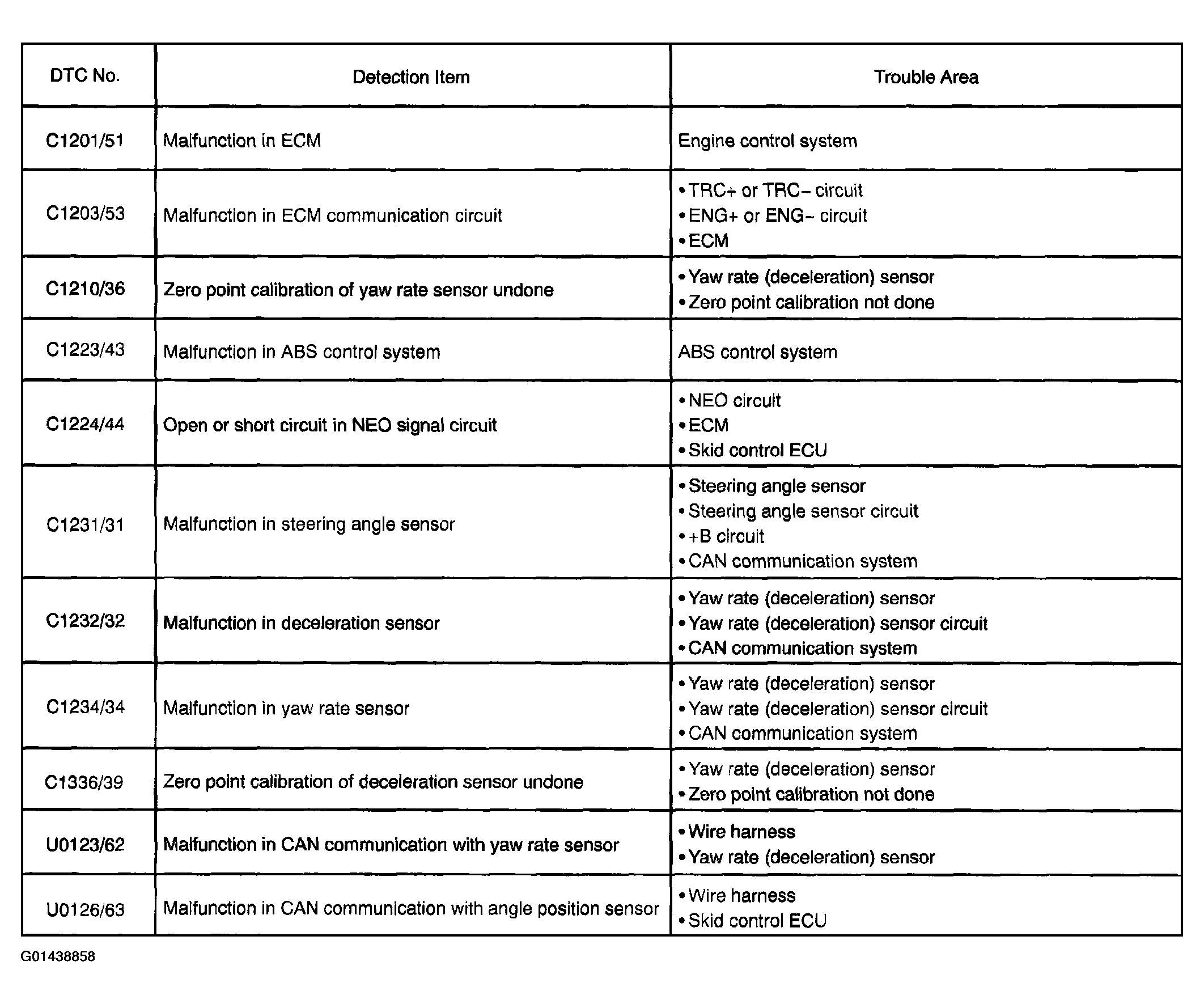

Fig 1: Identifying DTC Chart Of ABS (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying DTC Chart Of ABS (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In some cases, the hand-held tester cannot be used when ABS warning light remains on.

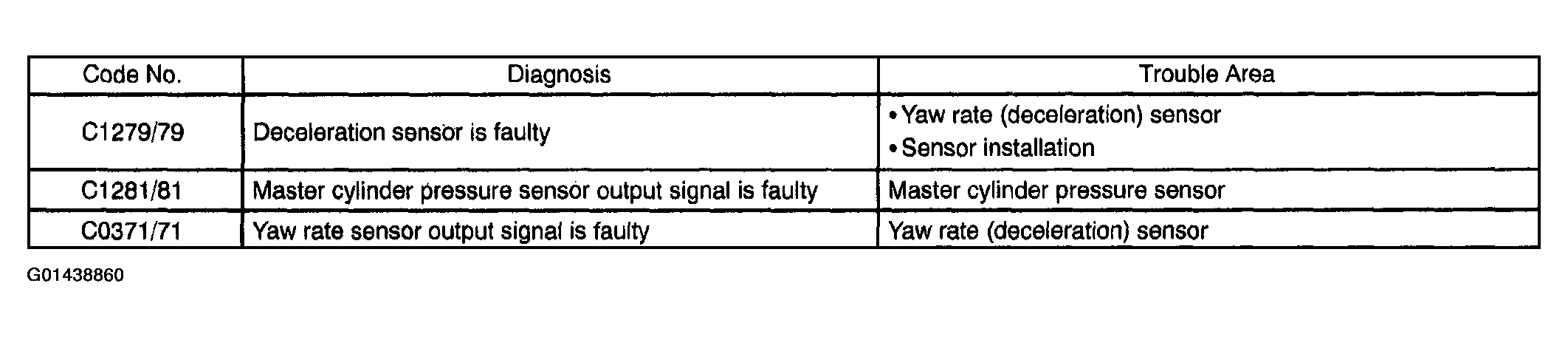

Fig 3: Identifying DTC Chart Of VSC

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In some cases, the hand-held tester cannot be used when VSC warning light is always on.

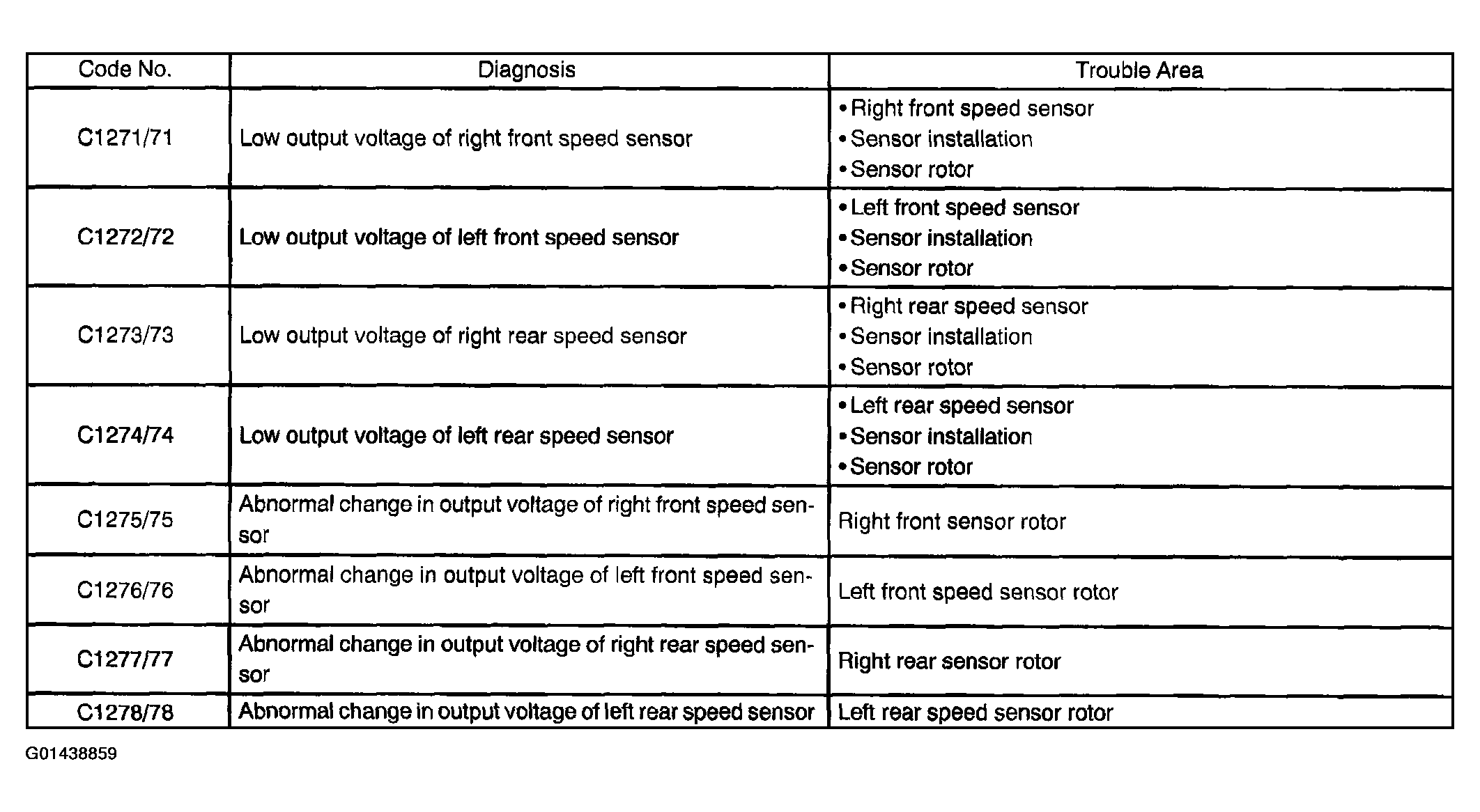

Fig 4: DTC Of Sensor Check Function Chart (1 Of 2)

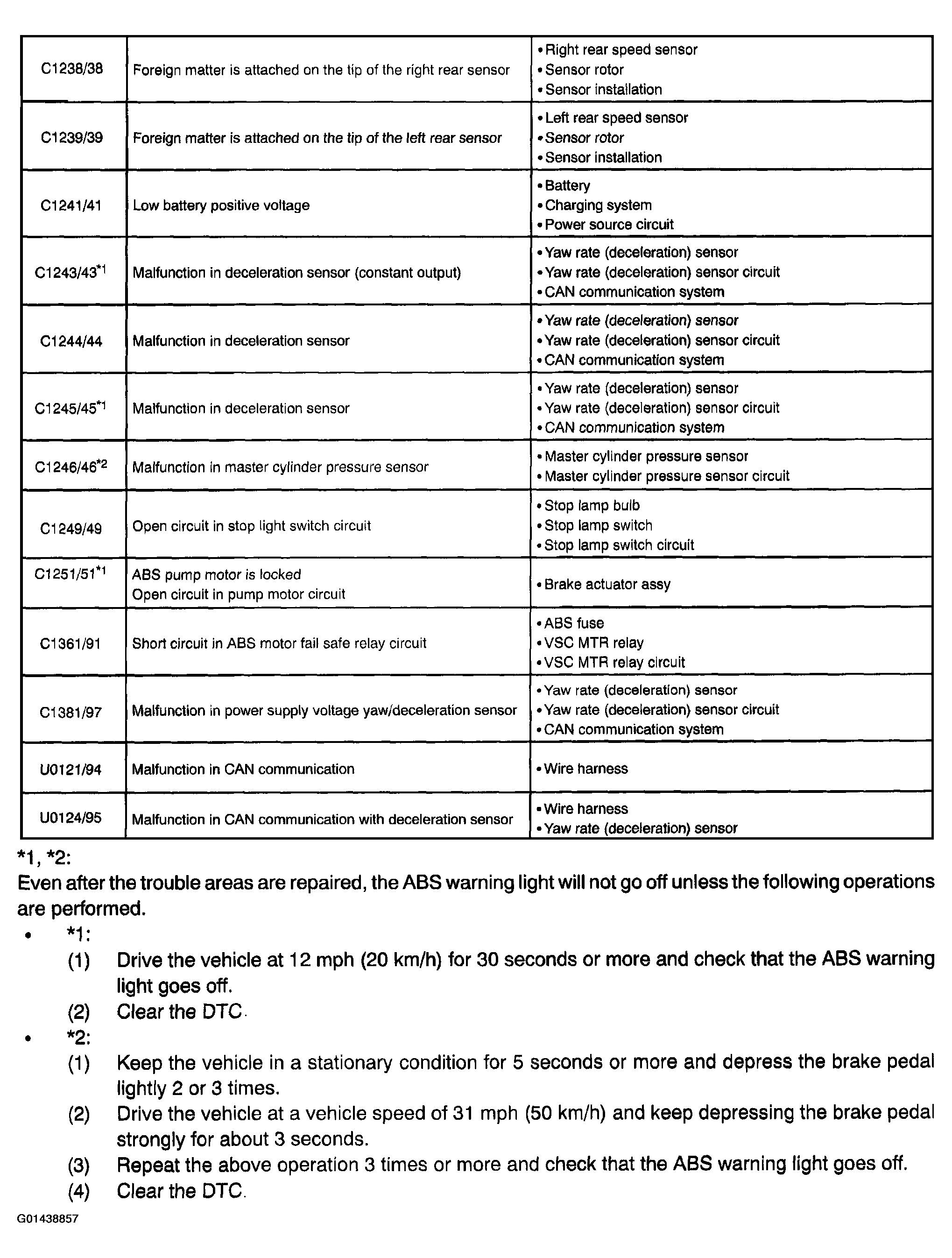

Fig 5: DTC Of Sensor Check Function Chart (2 Of 2)
