Section 300 (Abs W/EBD & BA & TRAC & VSC System - Diagnosis)
>>
DTC C1249/49: Open Circuit In Stop Light Switch Circuit
>>
Circuit Description
Circuit Description
WARNING:
This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

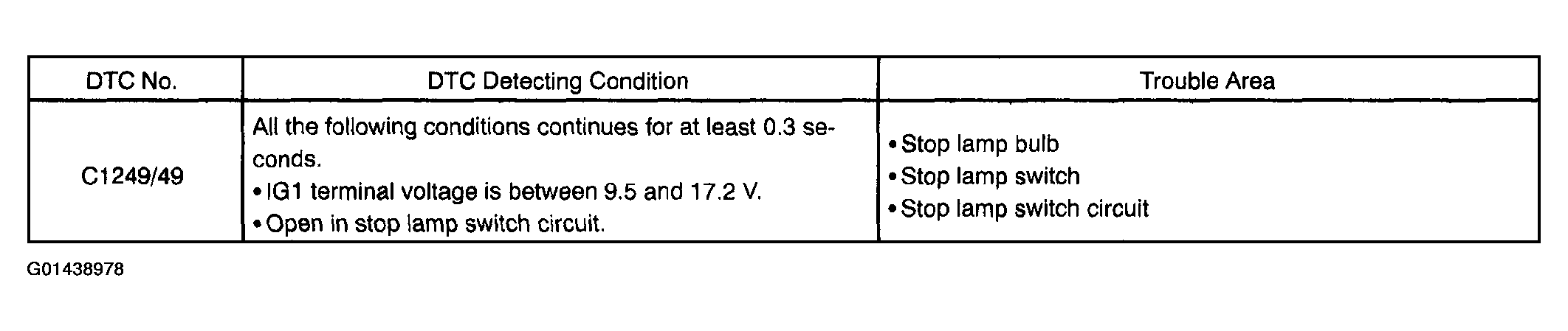

Fig 1: Open Circuit In Stop Light Switch Circuit Description
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
