Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Master cylinder pressure sensor is connected to the skid control ECU in the actuator.

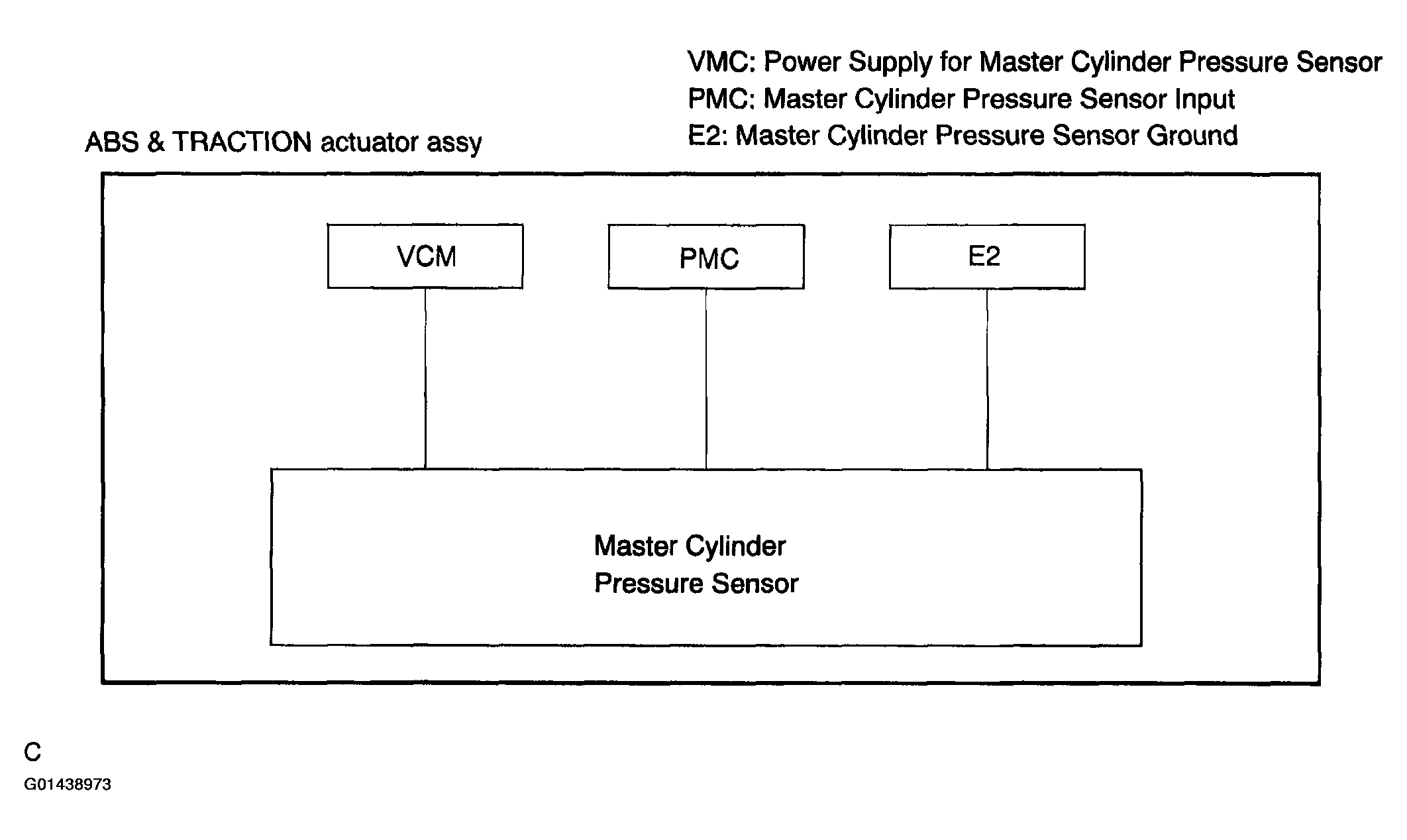

Fig 1: Master Cylinder Pressure Sensor Circuit Description (1 Of 2)
G01438973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

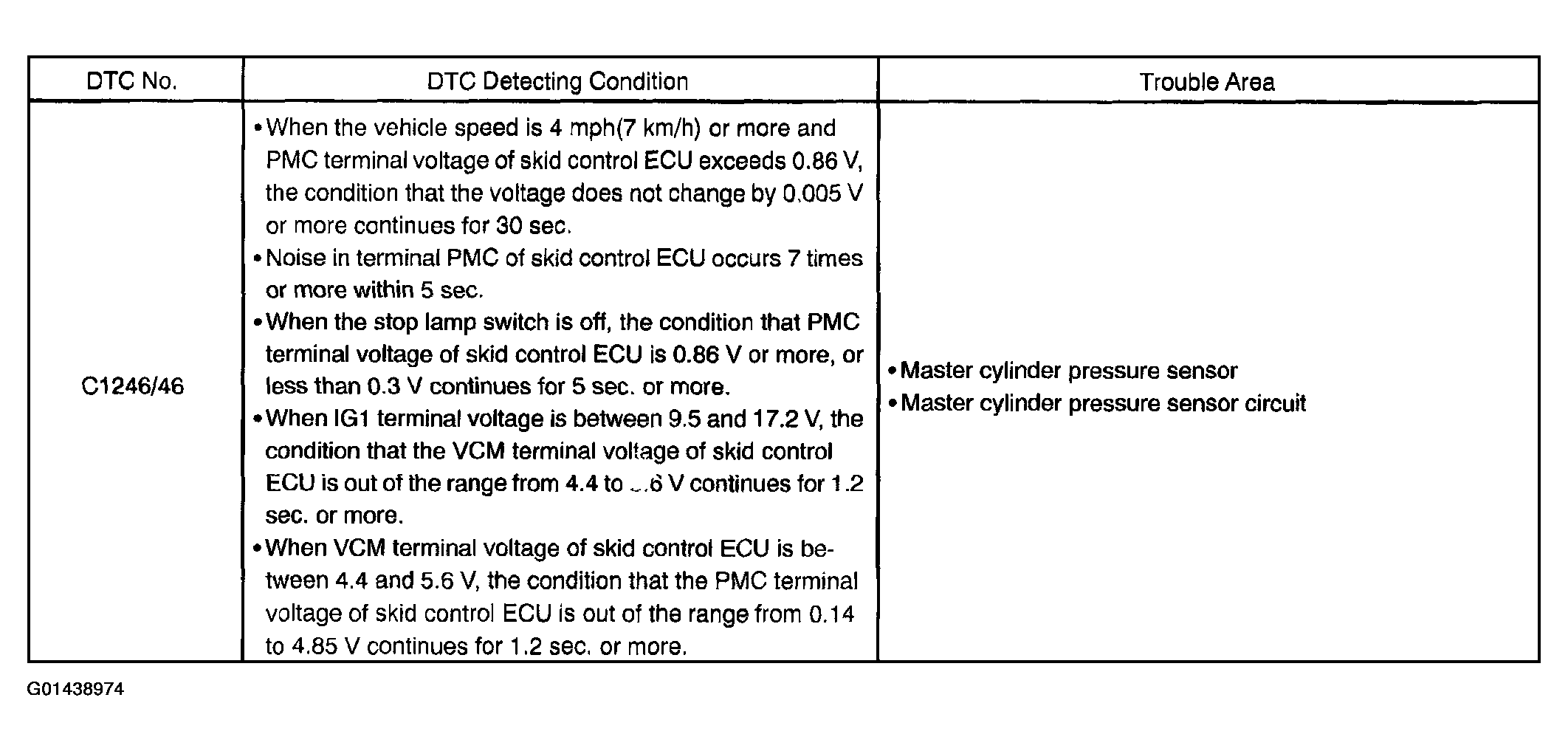

Fig 2: Master Cylinder Pressure Sensor Circuit Description (2 Of 2)
G01438974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
