Circuit Description
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

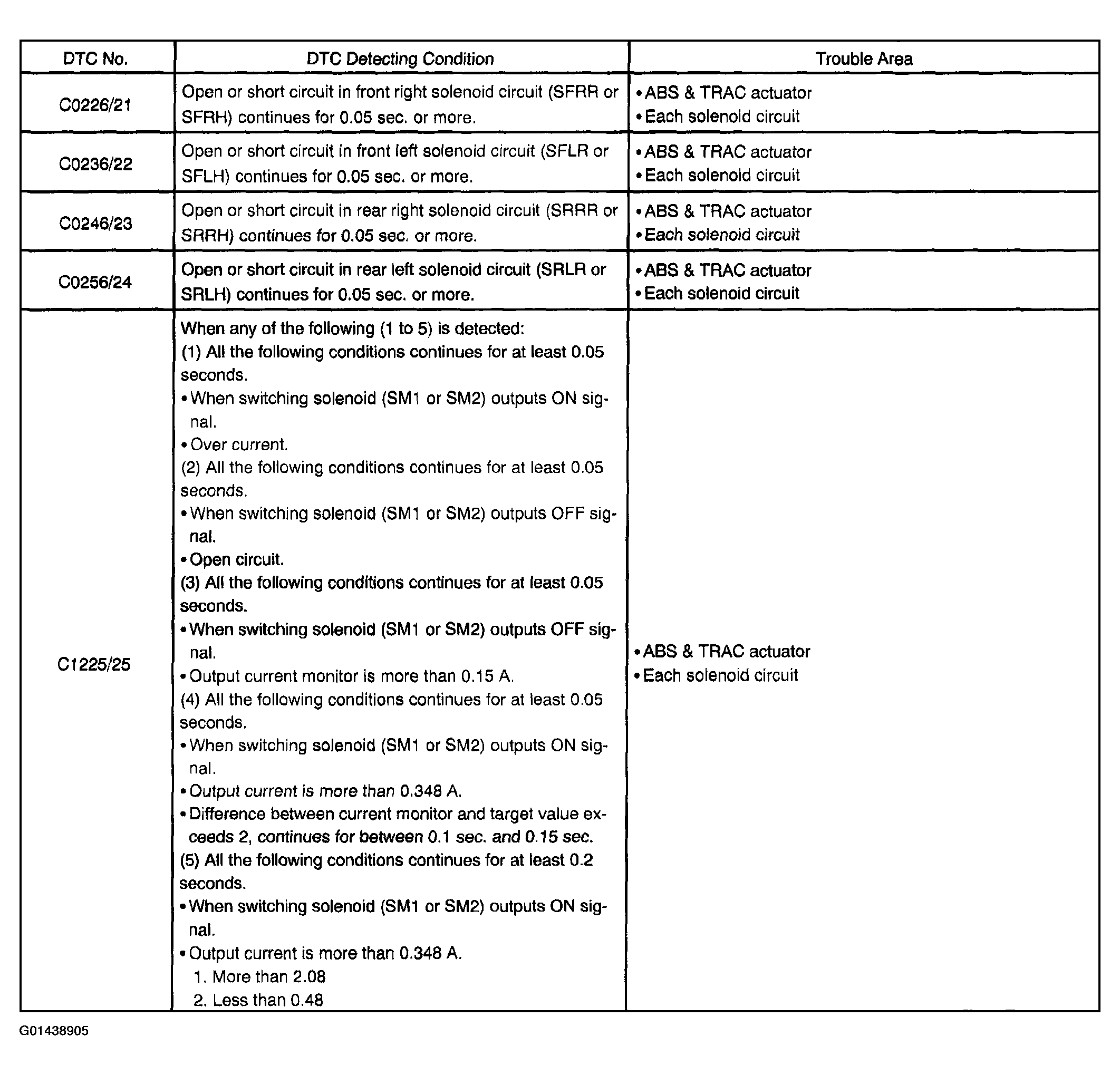

This solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders to control the braking force.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
