CONSULT-II Inspection Procedure: "Headlamp"

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

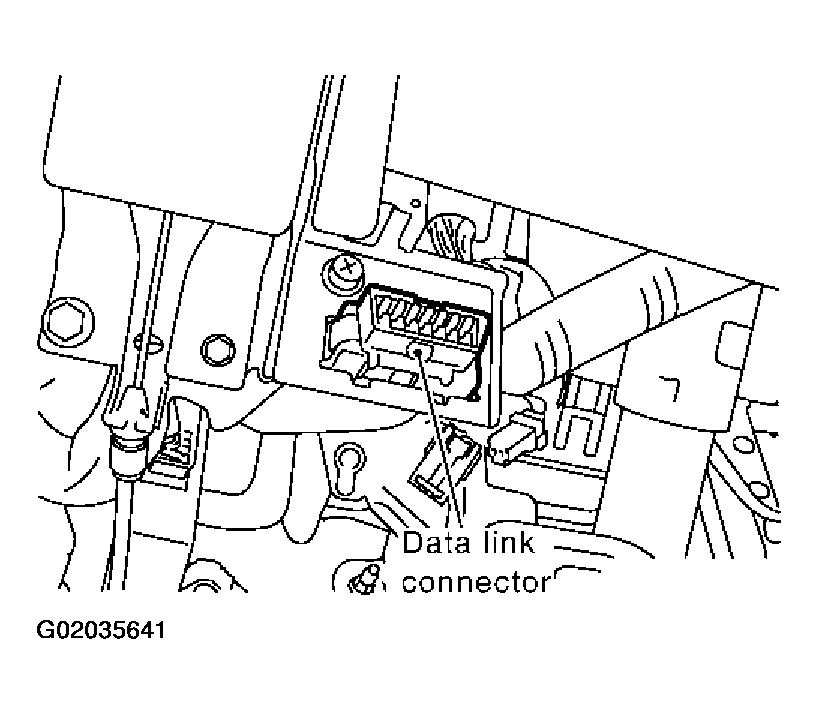

    Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
    G02035641Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

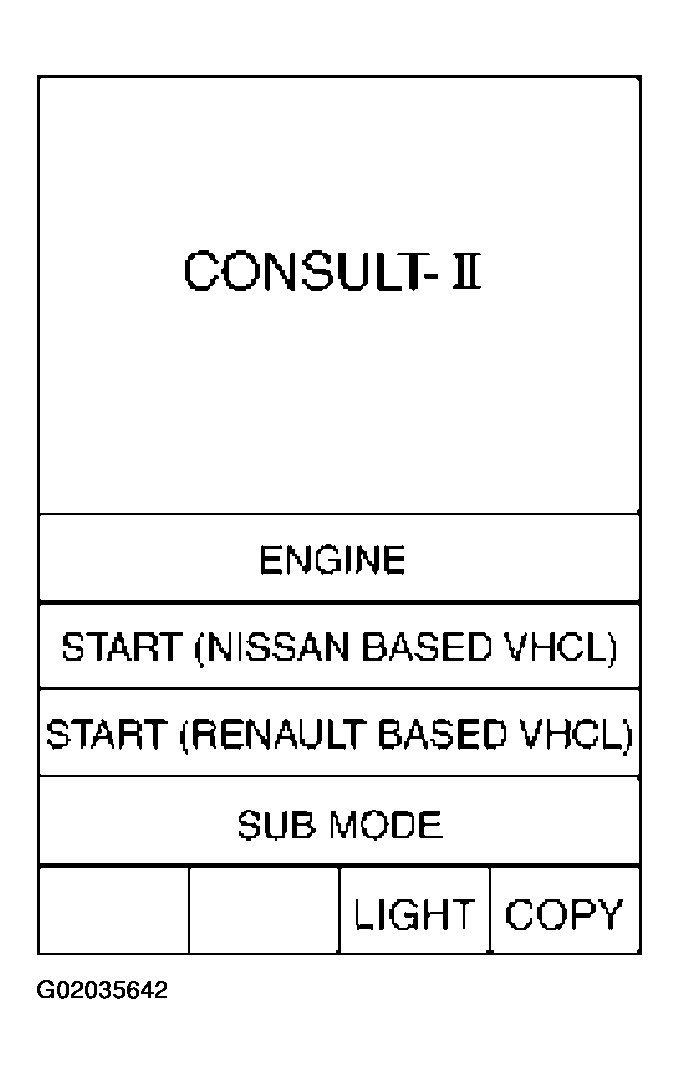

    Fig 2: CONSULT-II Display - Touch "START (NISSAN BASED VHCL)"
    G02035642Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "SMART ENTRANCE".

    If "SMART ENTRANCE" is not indicated, go to CONSULT-II .

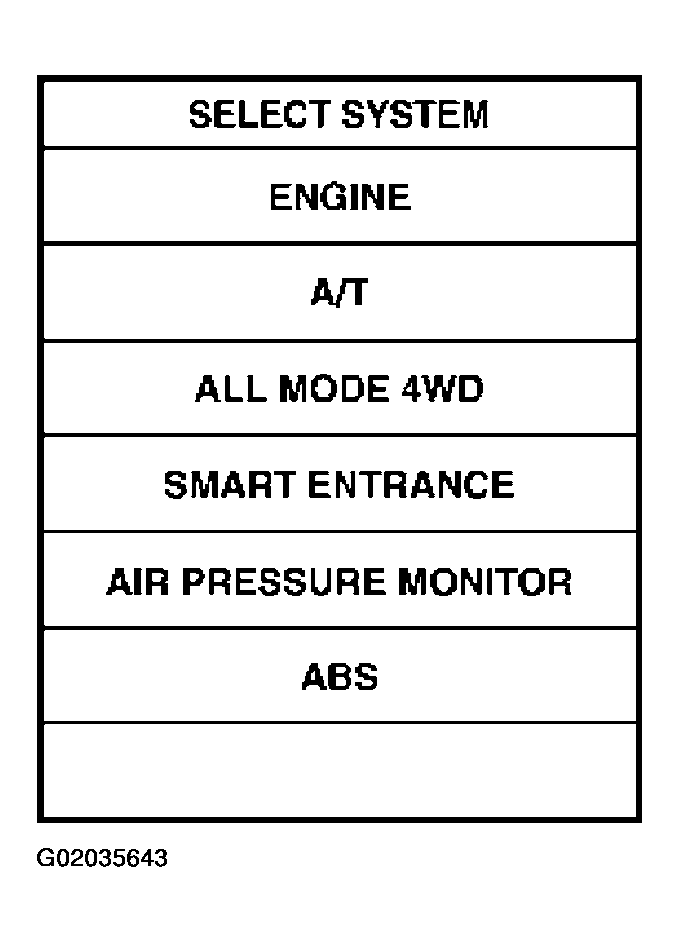

    Fig 3: CONSULT-II Display - Touch "SMART ENTRANCE"
    G02035643Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "HEADLAMP".

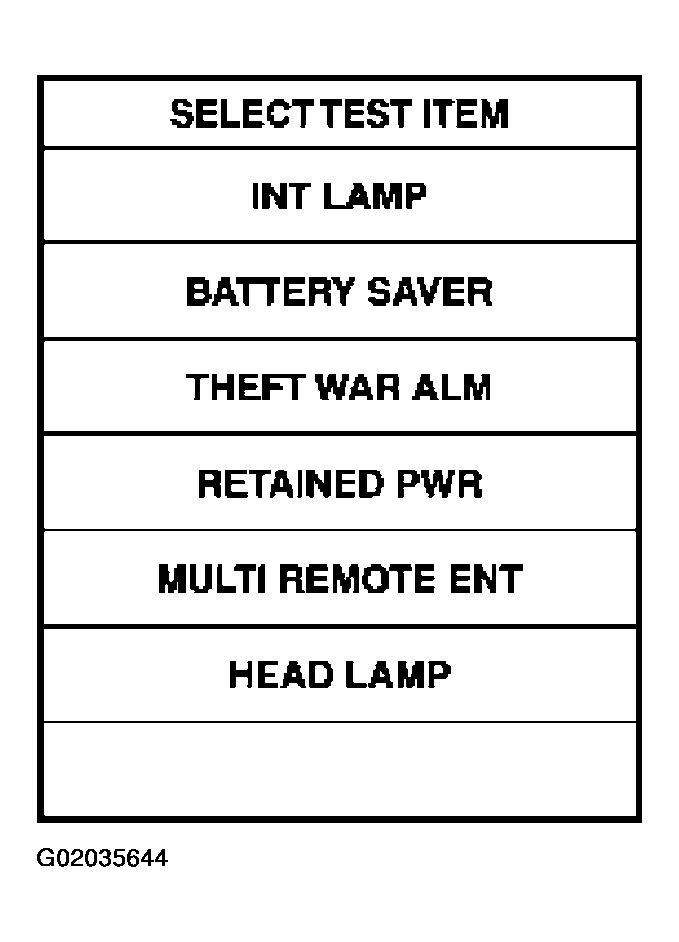

    Fig 4: CONSULT-II Display - Touch "HEADLAMP"
    G02035644Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode.

    "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

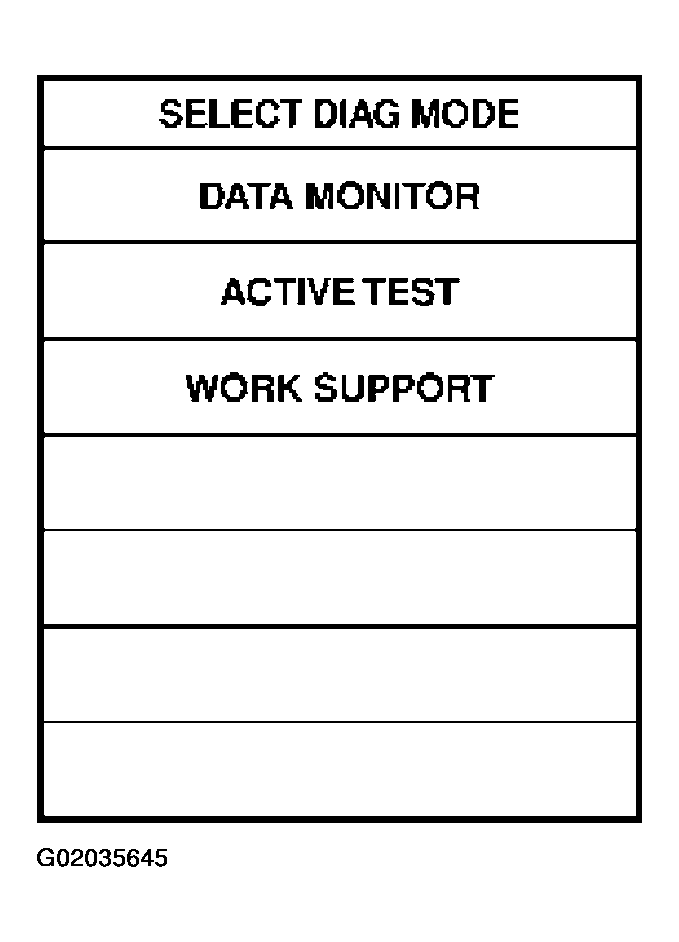

    Fig 5: CONSULT-II Display - Select Diagnosis Mode
    G02035645Courtesy of NISSAN MOTOR CO., U.S.A.
