Wiring Diagram - WARN -

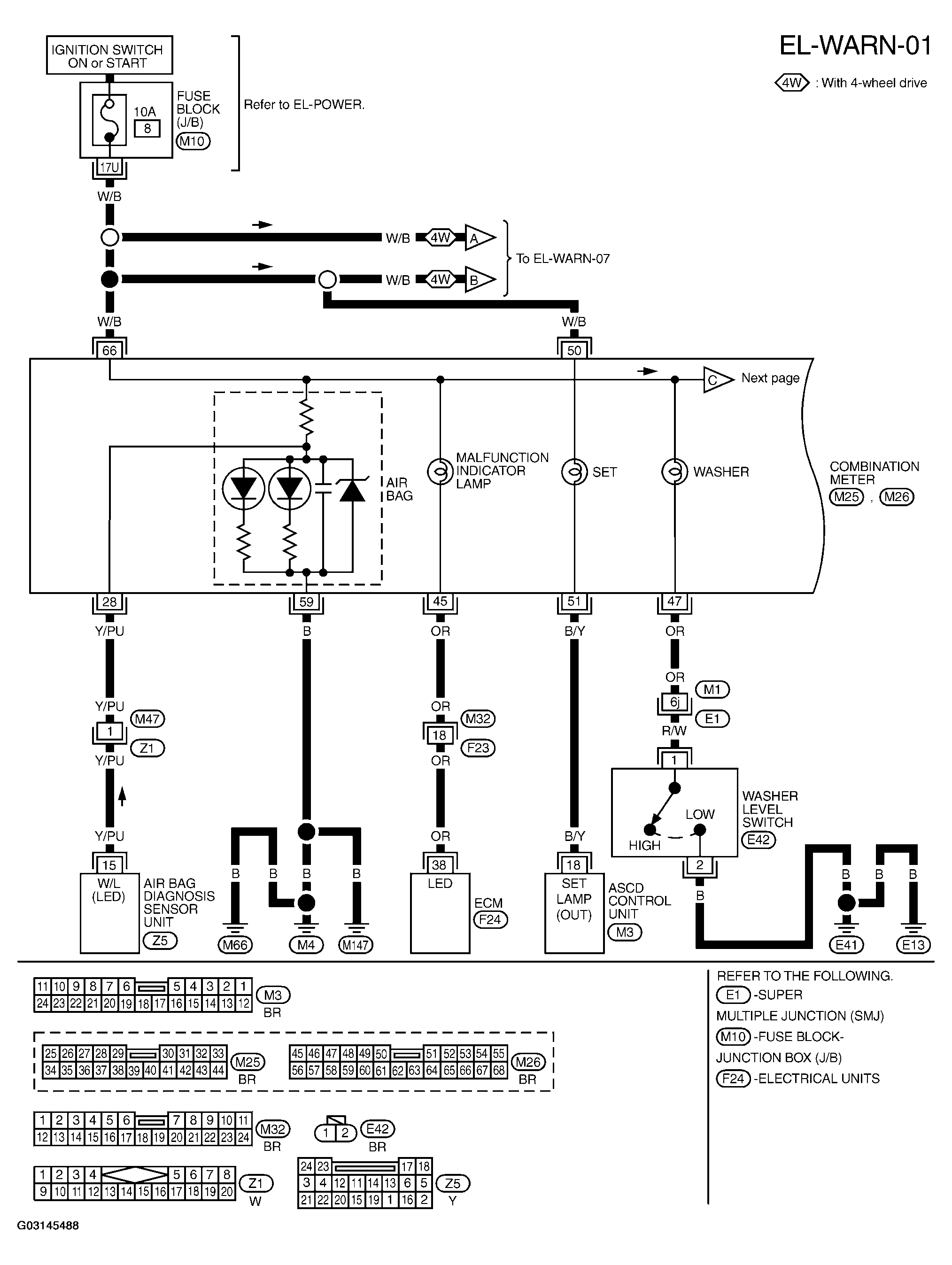

Fig 1: Wiring Diagram - Warn (1 Of 7)

G03145488

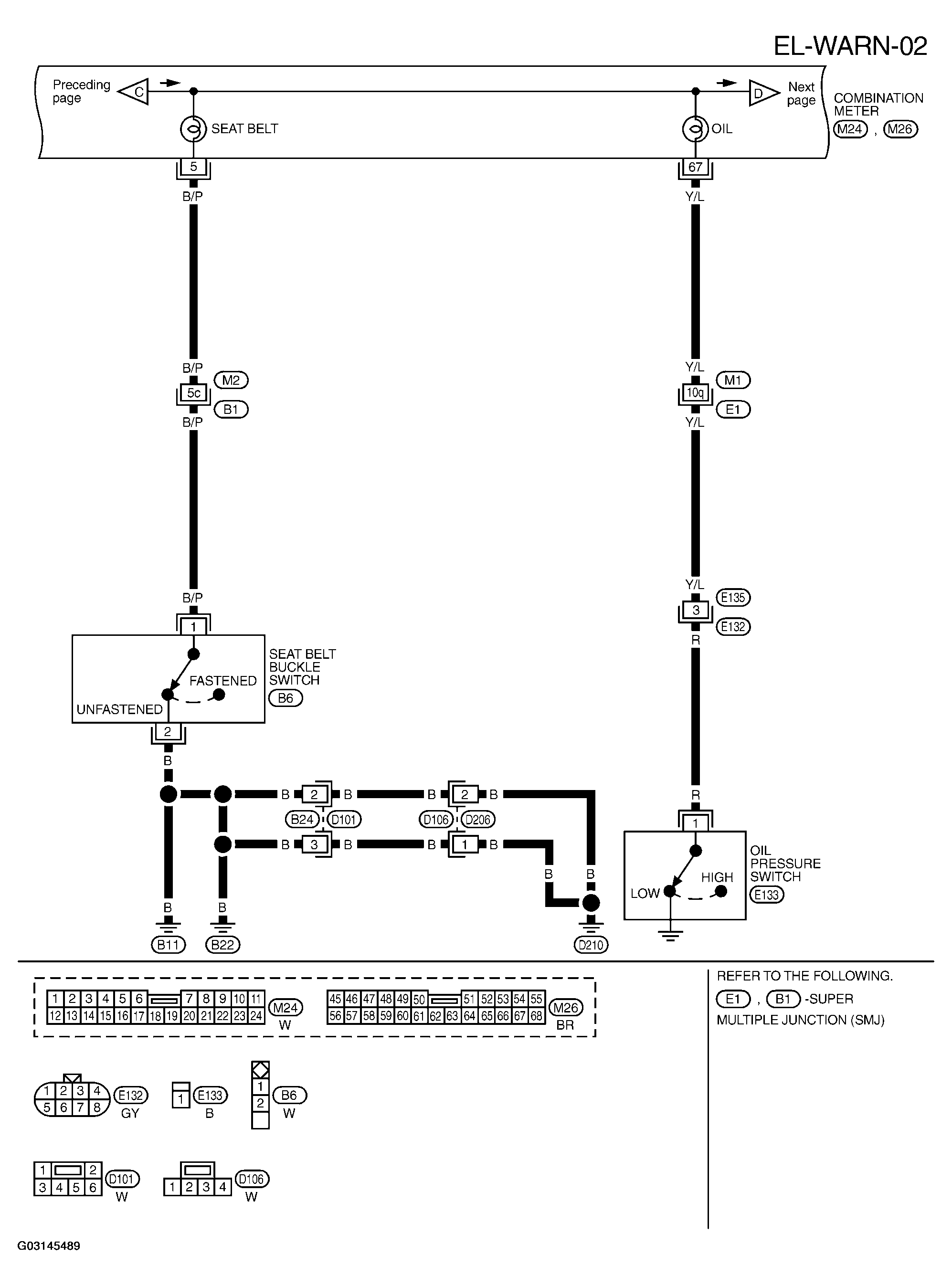

Fig 2: Wiring Diagram - Warn (2 Of 7)

G03145489

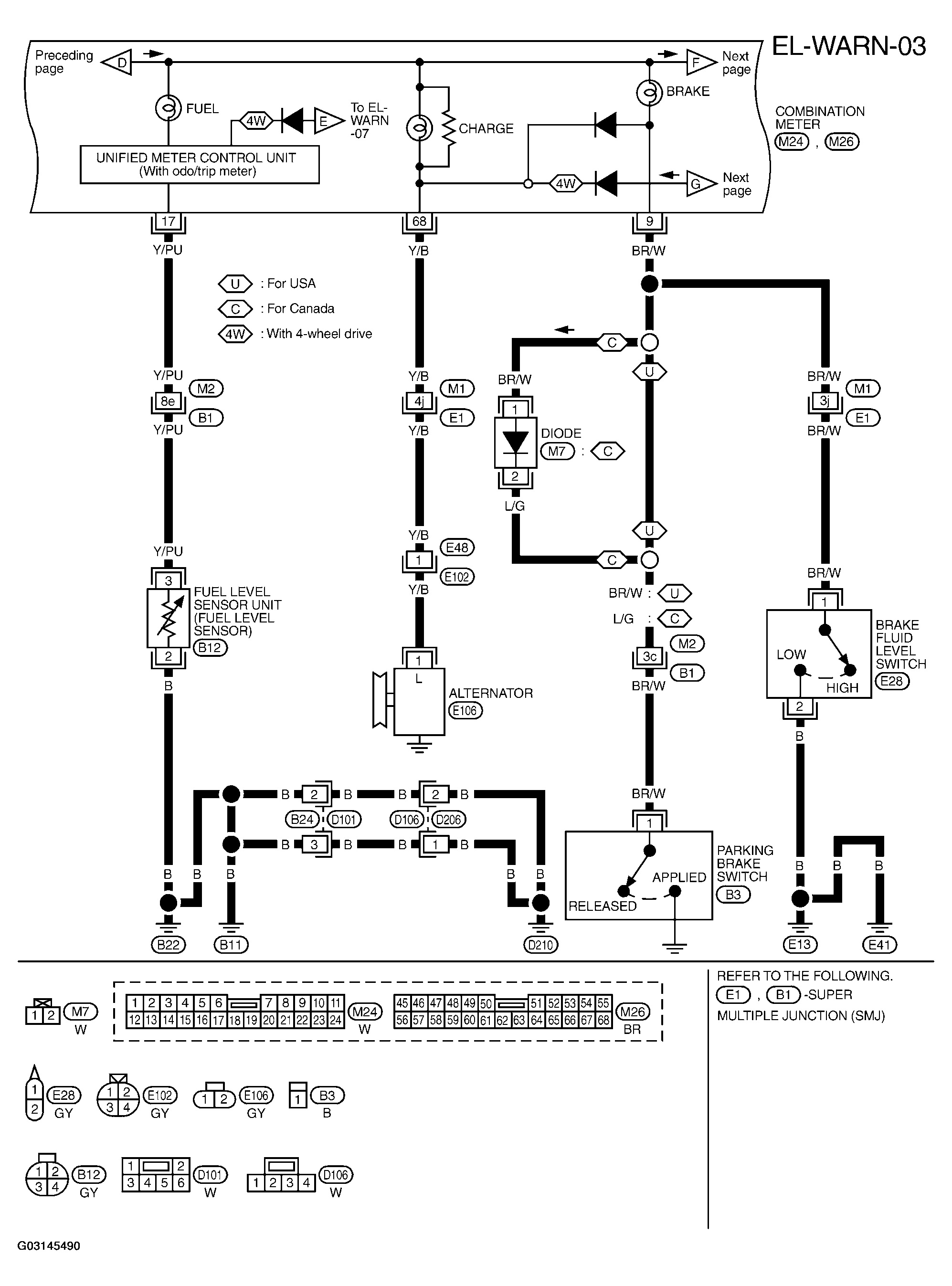

Fig 3: Wiring Diagram - Warn (3 Of 7)

G03145490

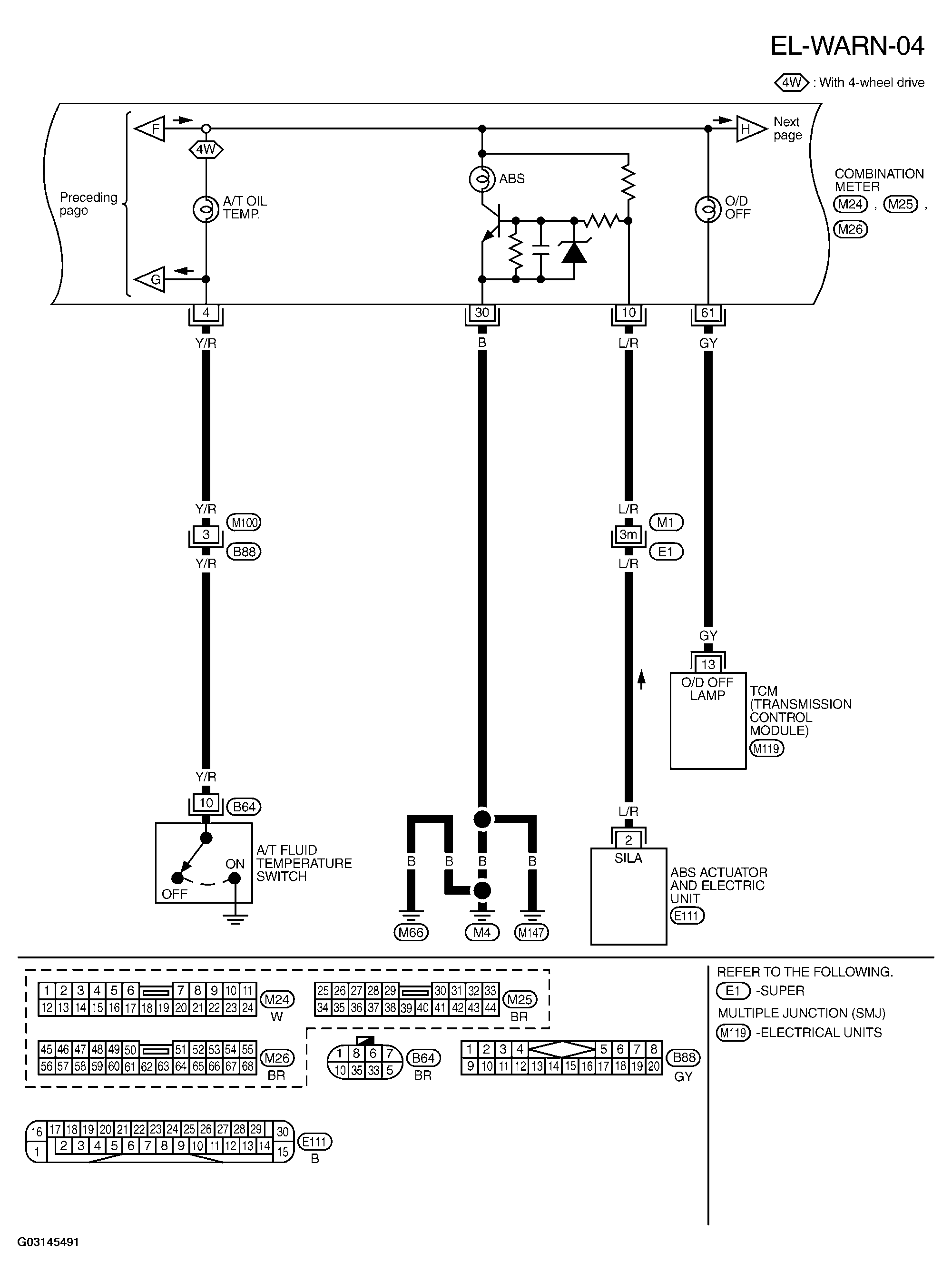

Fig 4: Wiring Diagram - Warn (4 Of 7)

G03145491

Fig 5: Wiring Diagram - Warn (5 Of 7)

G03145492

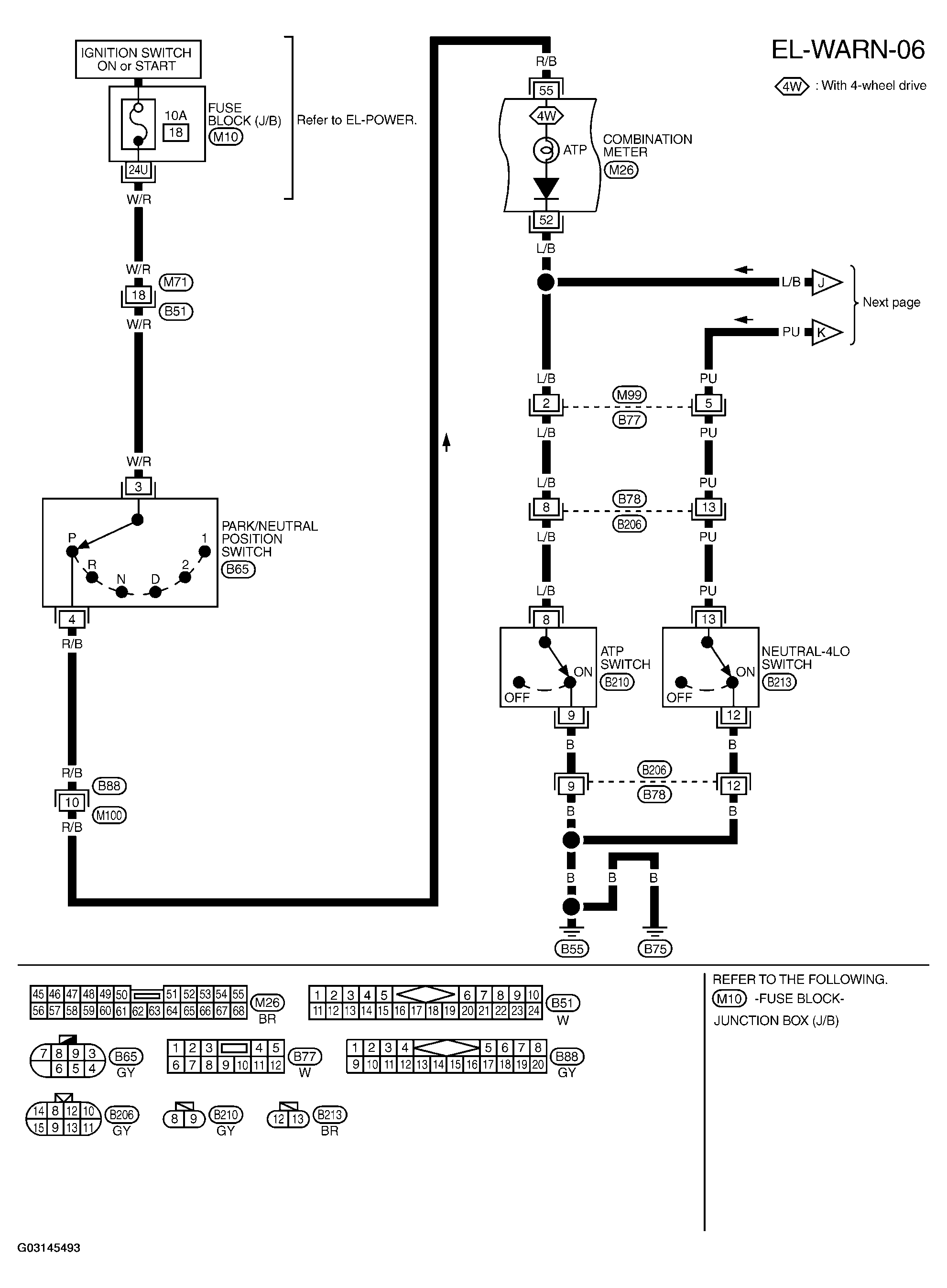

Fig 6: Wiring Diagram - Warn (6 Of 7)

G03145493

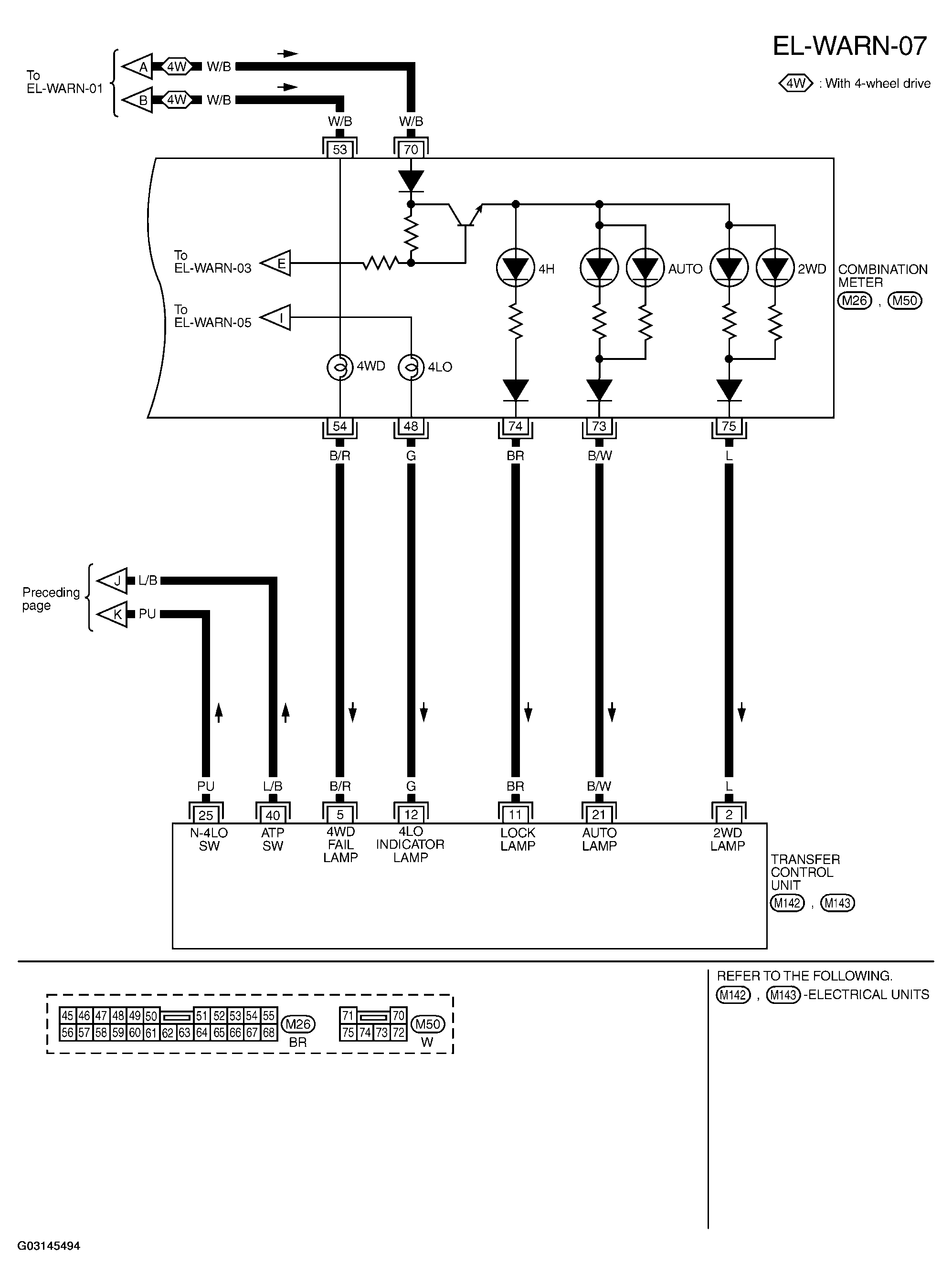

Fig 7: Wiring Diagram - Warn (7 Of 7)

G03145494
