Wiring Diagram - WARN -

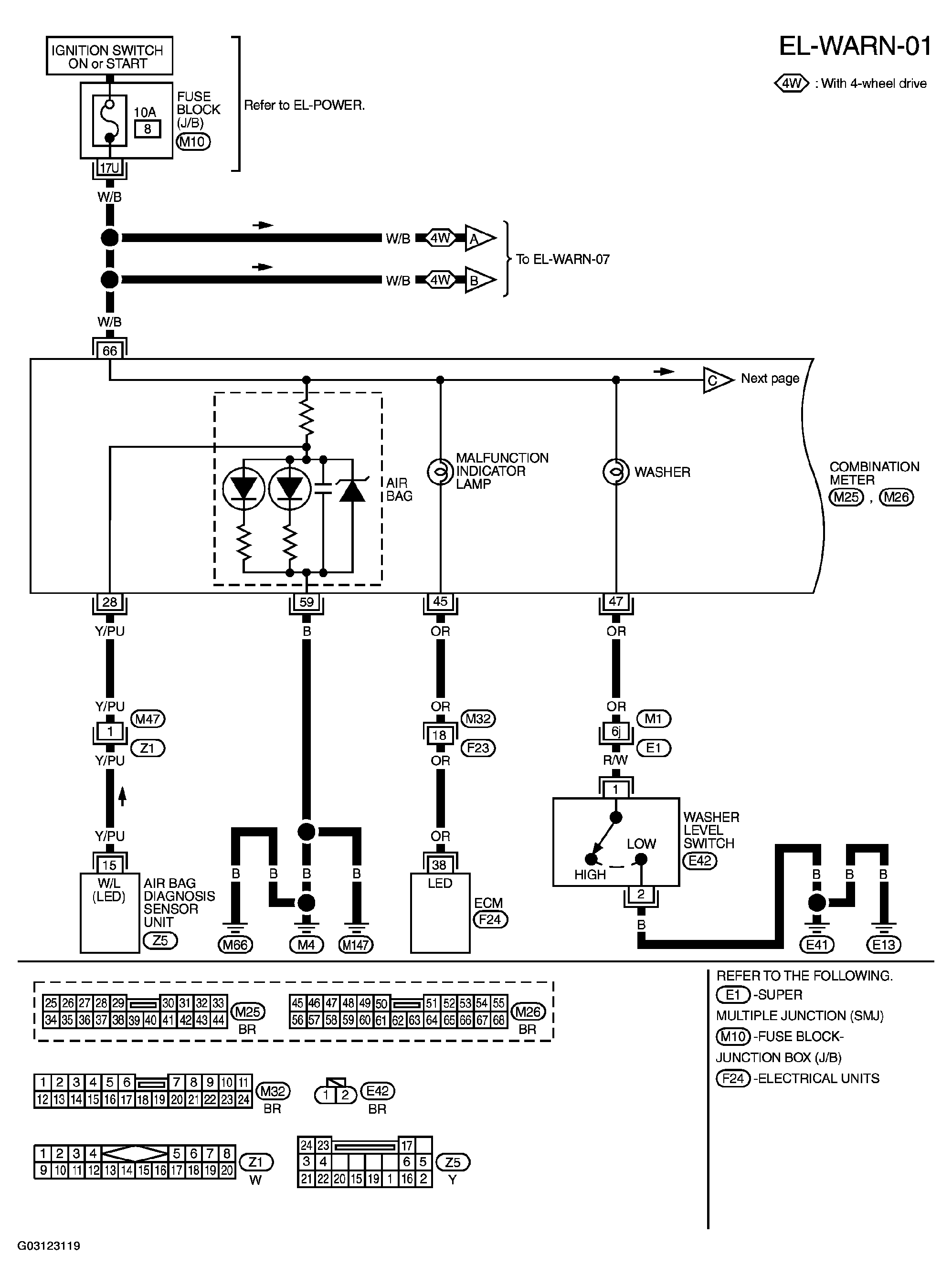

Fig 1: Wiring Diagram - Warning Lamps (1 Of 7)
G03123119

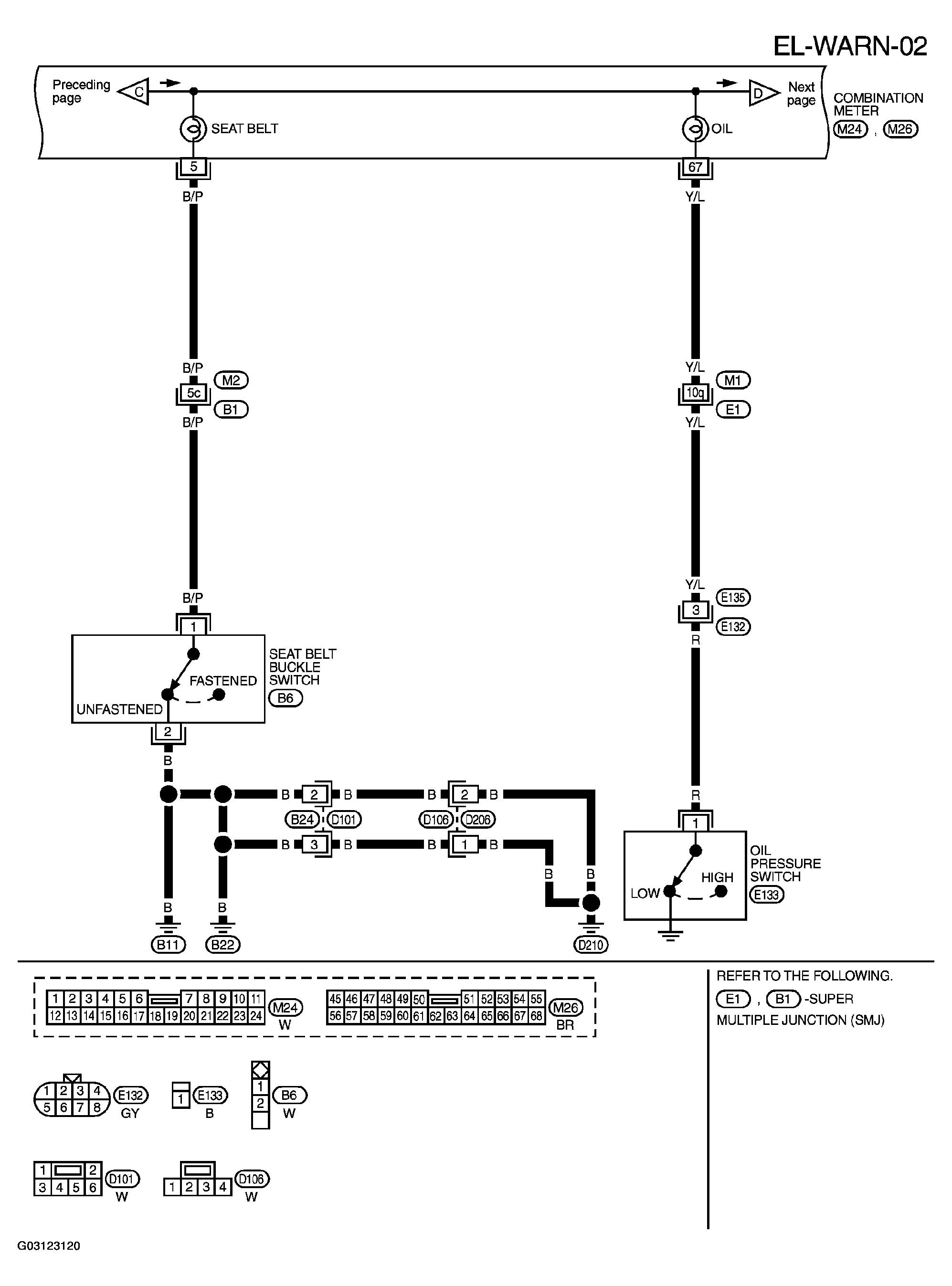

Fig 2: Wiring Diagram - Warning Lamps (2 Of 7)
G03123120

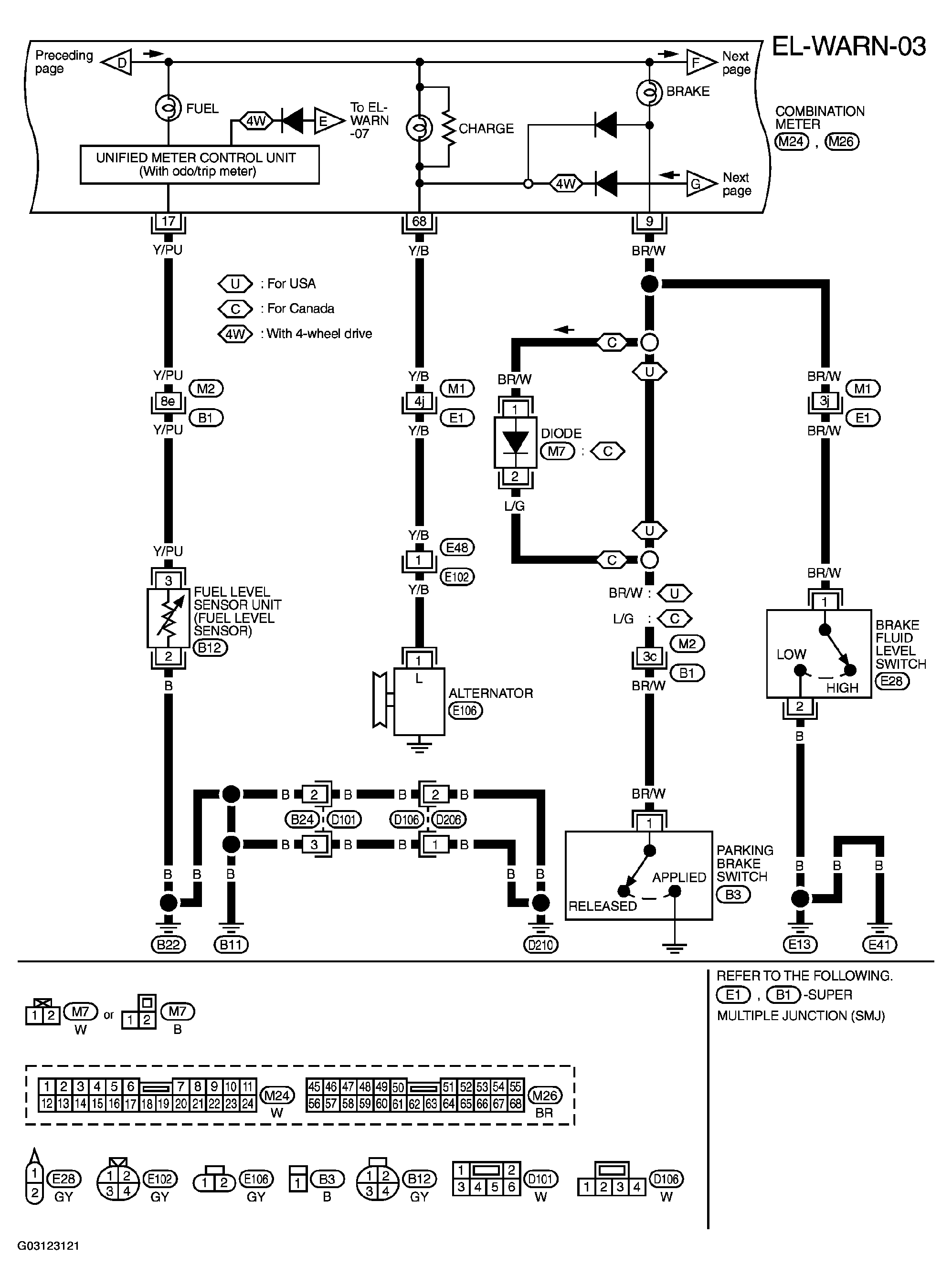

Fig 3: Wiring Diagram - Warning Lamps (3 Of 7)
G03123121

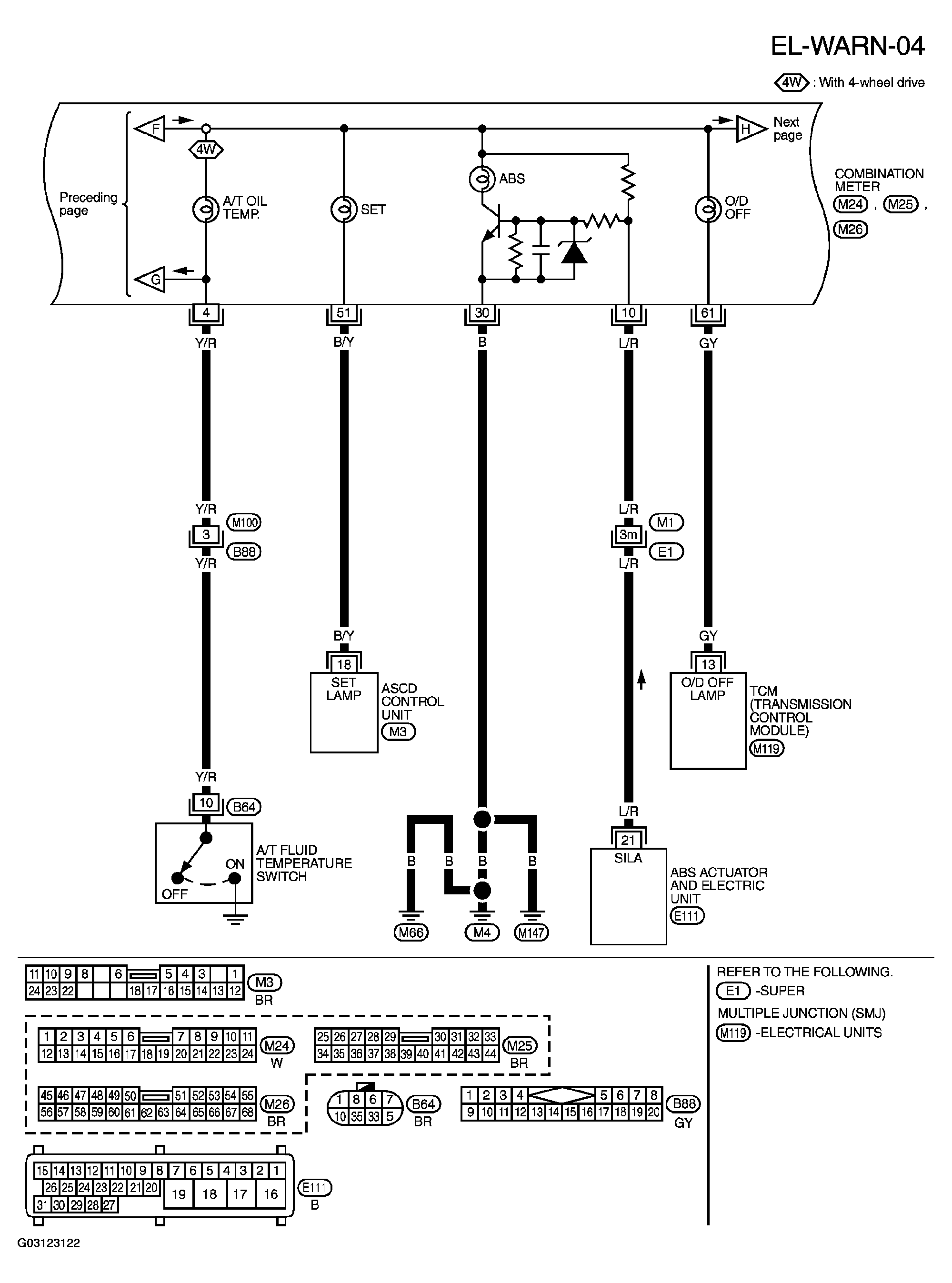

Fig 4: Wiring Diagram - Warning Lamps (4 Of 7)
G03123122

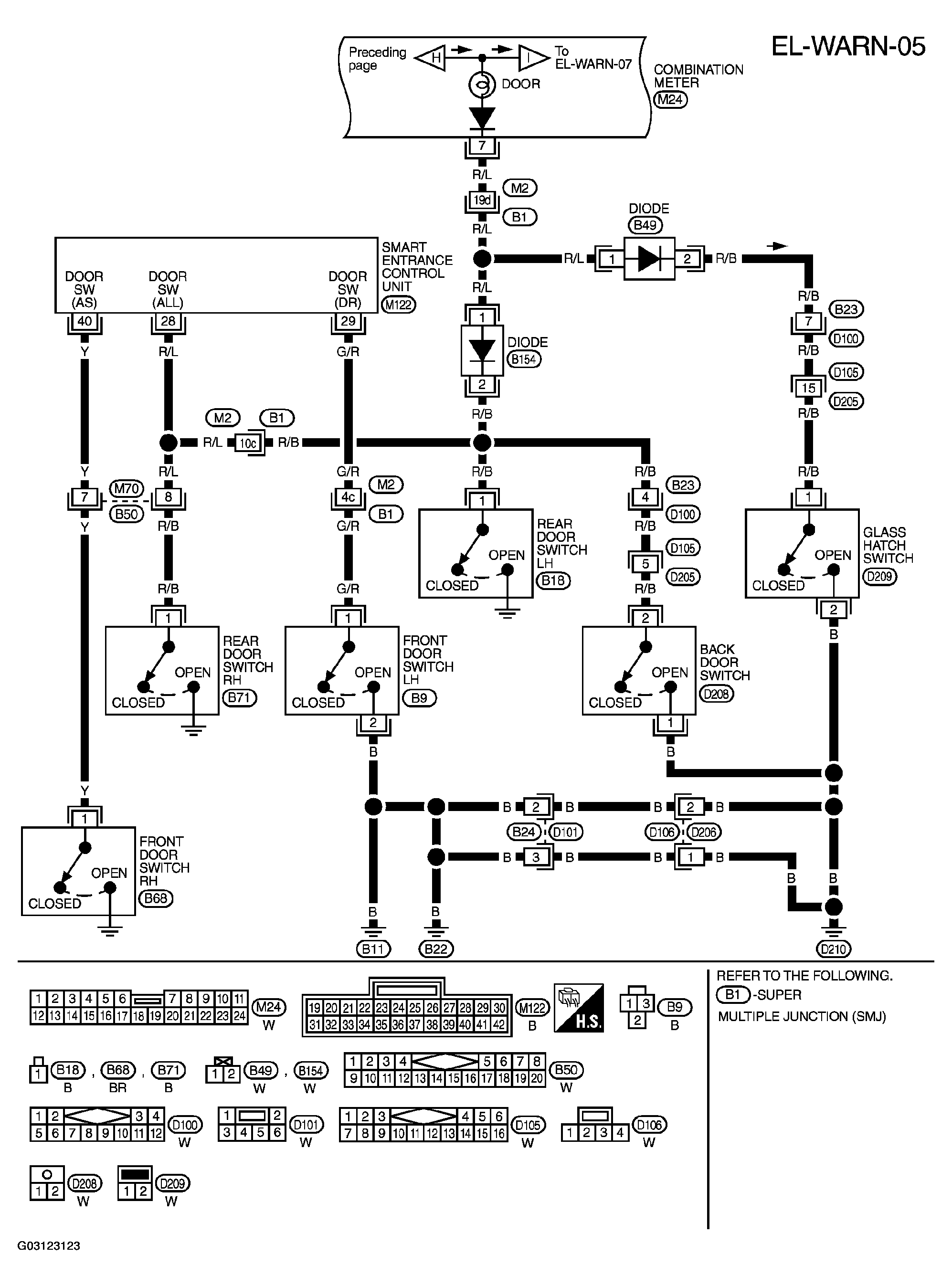

Fig 5: Wiring Diagram - Warning Lamps (5 Of 7)
G03123123

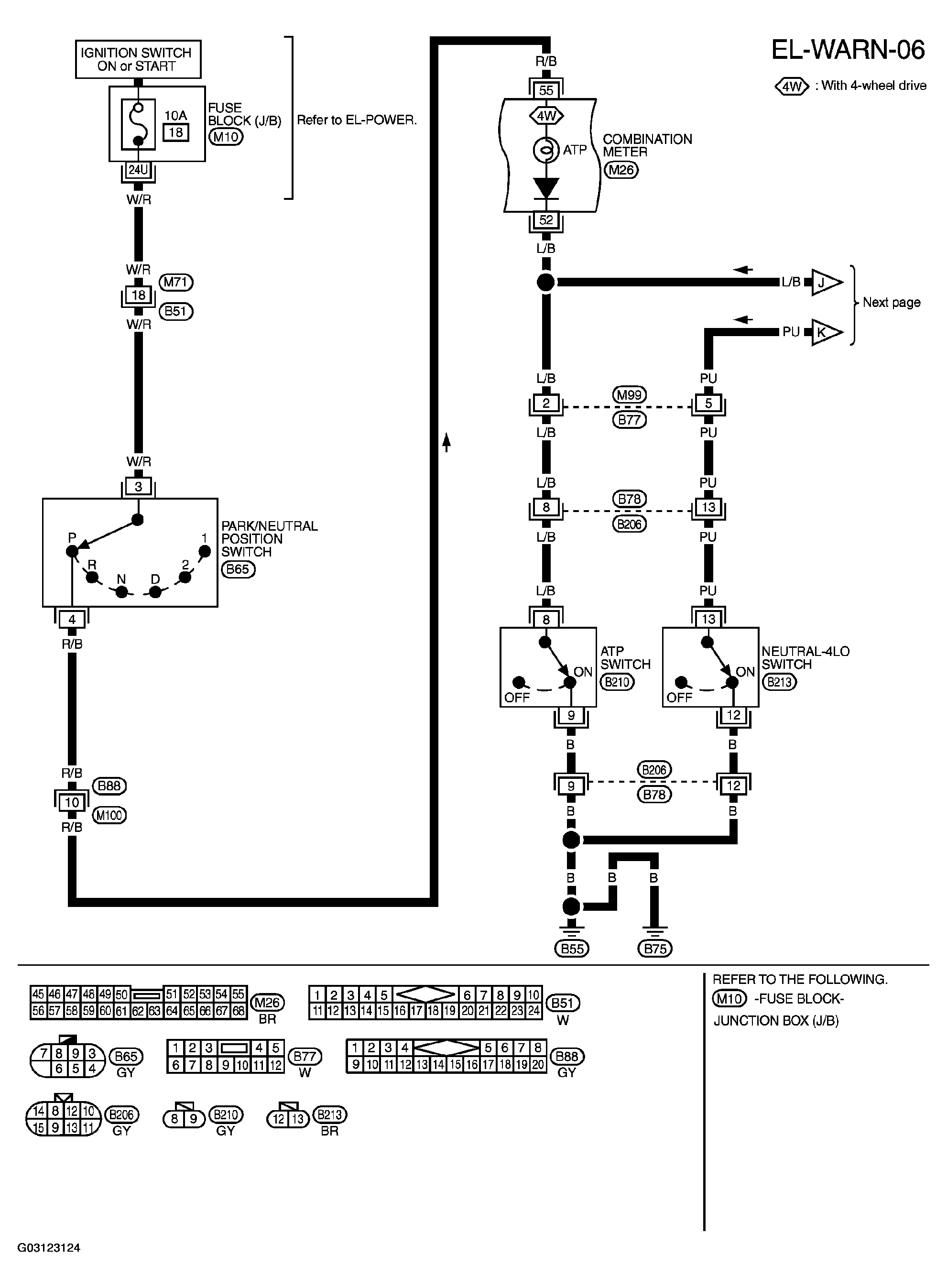

Fig 6: Wiring Diagram - Warning Lamps (6 Of 7)
G03123124

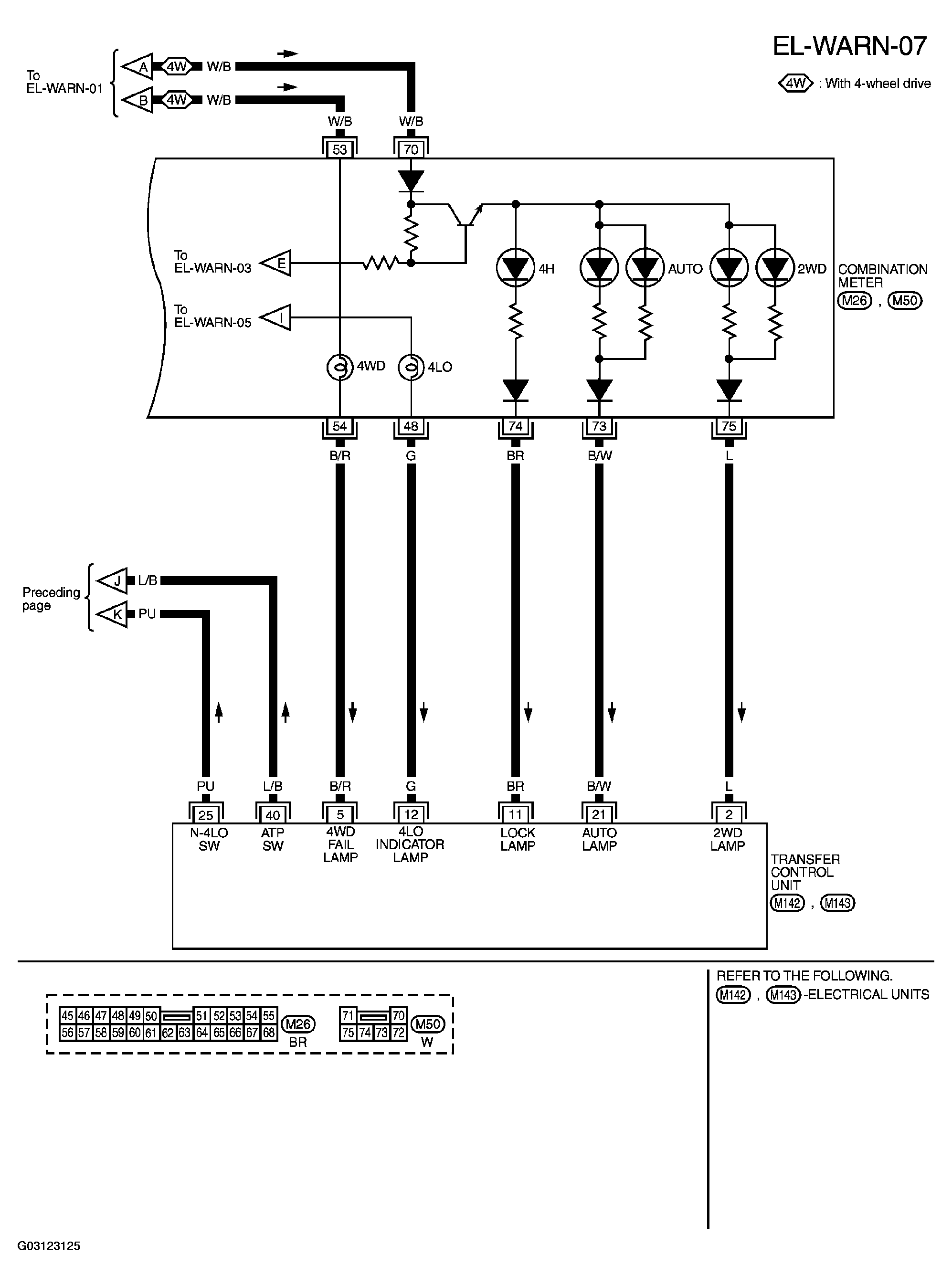

Fig 7: Wiring Diagram - Warning Lamps (7 Of 7)
G03123125
