Inspection/Vehicle Speed Signal

With CONSULT-II

1. Lift up drive wheels.
2. Start engine.
3. Check signal between combination meter harness connector M24 terminal 15 (G/Y) and ground when rotating wheels with engine at idle. (Use "SIMPLE OSCILLOSCOPE" in "SUB MODE" with CONSULT-II.)

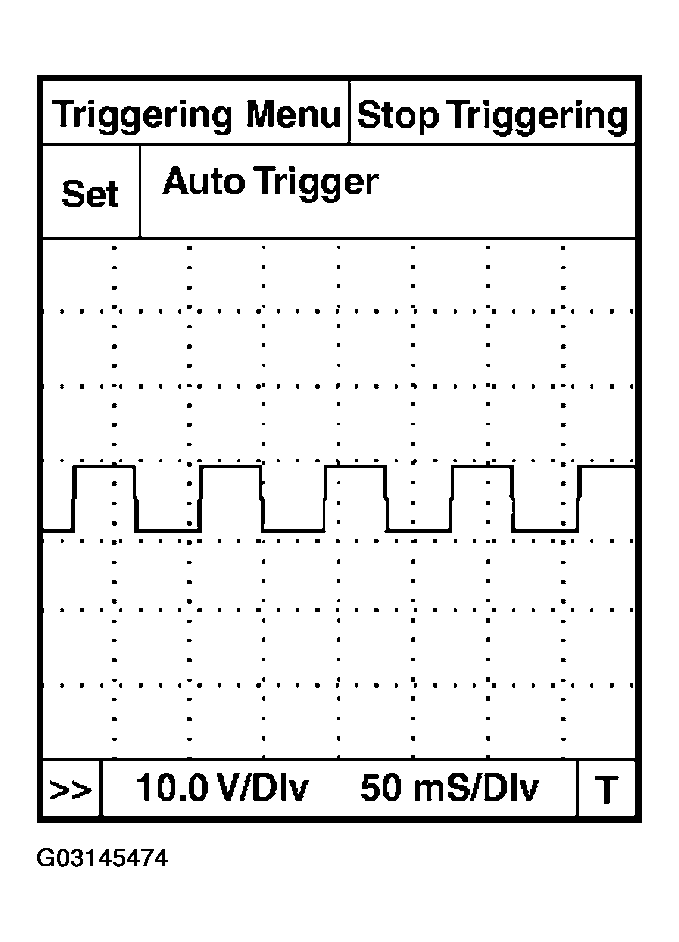

Fig 1: Checking ABS Control Unit Output Signal

Without CONSULT-II

1. Lift up drive wheels.
2. Start engine.
3. Check voltage between combination meter harness connector M24 terminal 15 (G/Y) and ground when rotating wheels with engine at idle.

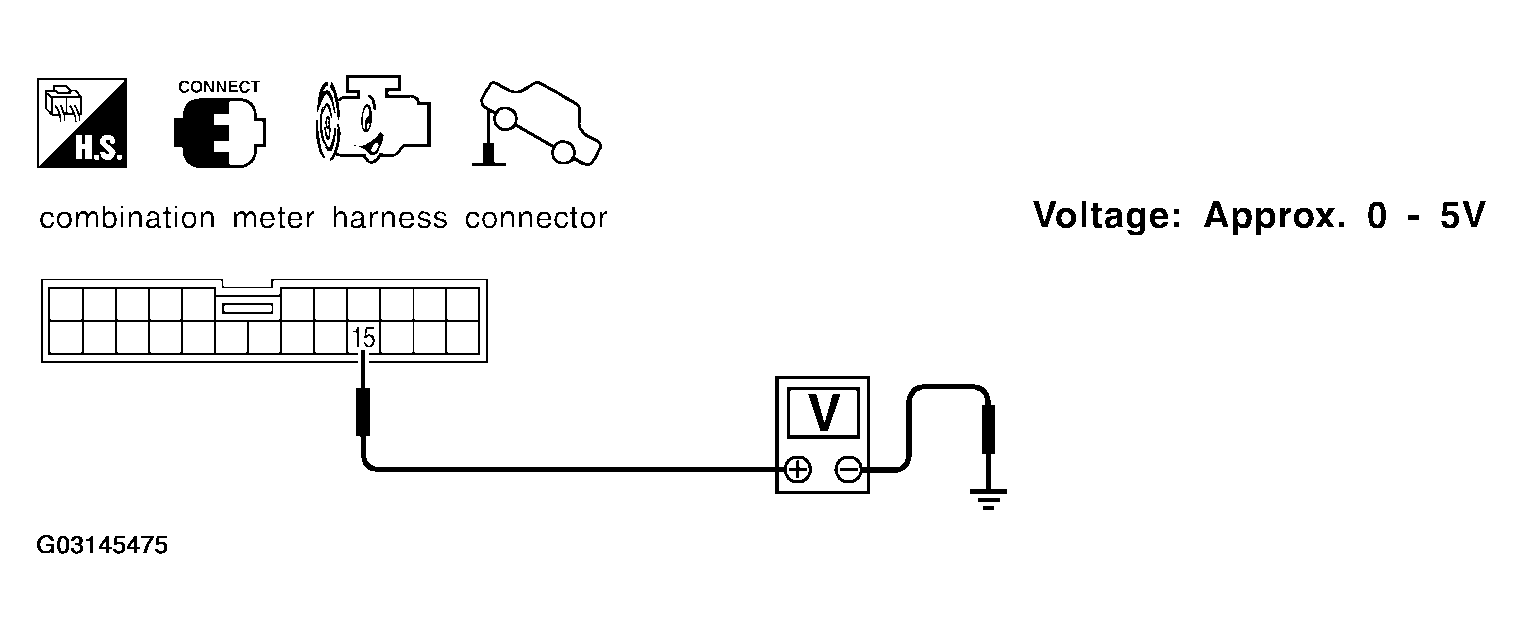

Fig 2: Checking Voltage Between Terminal 15 (G/Y) And Ground

OK or NG

1. OK: ABS control unit is OK.
2. NG: Check the following.

   Harness for open or short between ABS actuator and electric unit and combination meter.

   ABS actuator and electric unit. Refer to WHEEL SENSOR OR ROTOR .
