Sensor Spring Adjustment (Frontier 2.4L, Pathfinder 4WD & QX4 4WD)

Ensure vehicle is in unladen condition and parked on a level surface. Press lever to stopper bolt and adjust sensor spring length "L" to 8.56" (217.4 mm). See Fig 1.

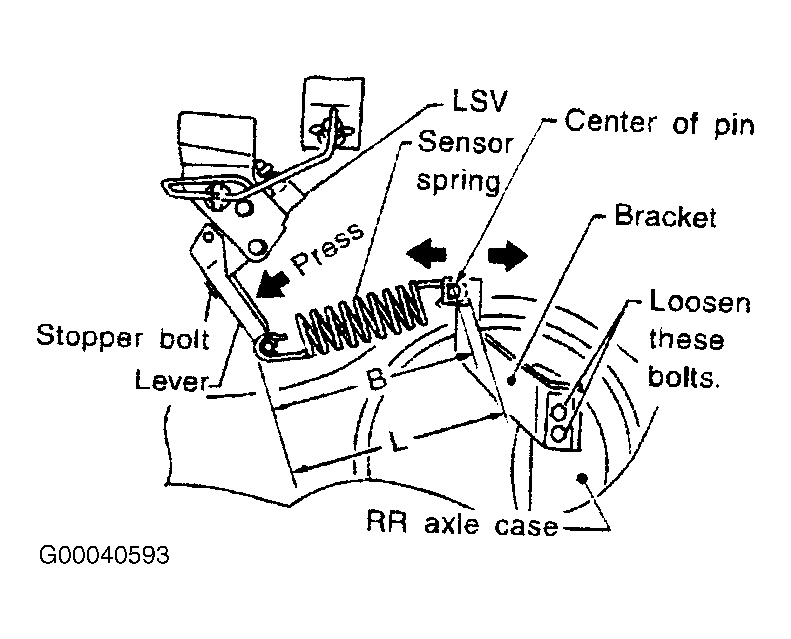

Fig 1: Adjusting LSV (Frontier 2.4L, Pathfinder 4WD & QX4 4WD)

Courtesy of NISSAN MOTOR CO., U.S.A.
