Diagnostic Procedure 5

Self-diagnostic results:

"ID DISCORD, IMM-ECM" displayed on CONSULT-II screen

1. CONFIRM SELF-DIAGNOSTIC RESULTS

   Confirm SELF-DIAGNOSTIC RESULTS "ID DISCORD, IMM-ECM" displayed on CONSULT-II screen.

   Fig 1: Confirming Self-Diagnostic Results


   NOTE: "ID DISCORD IMMU-ECM":
   Registered ID of IMMU is in discord with that of ECM.

   Is CONSULT-II screen displayed as above?

   1. Yes: GO TO 2.
   2. No: GO TO SYMPTOM MATRIX CHART 1  .
2. PERFORM INITIALIZATION WITH CONSULT-II

   Perform initialization with CONSULT-II. Re-register all IVIS (NATS) ignition key IDs.

   For initialization, refer to "CONSULT-II Operation Manual IVIS/NVIS".

   Fig 2: Performing Initialization With Consult-II

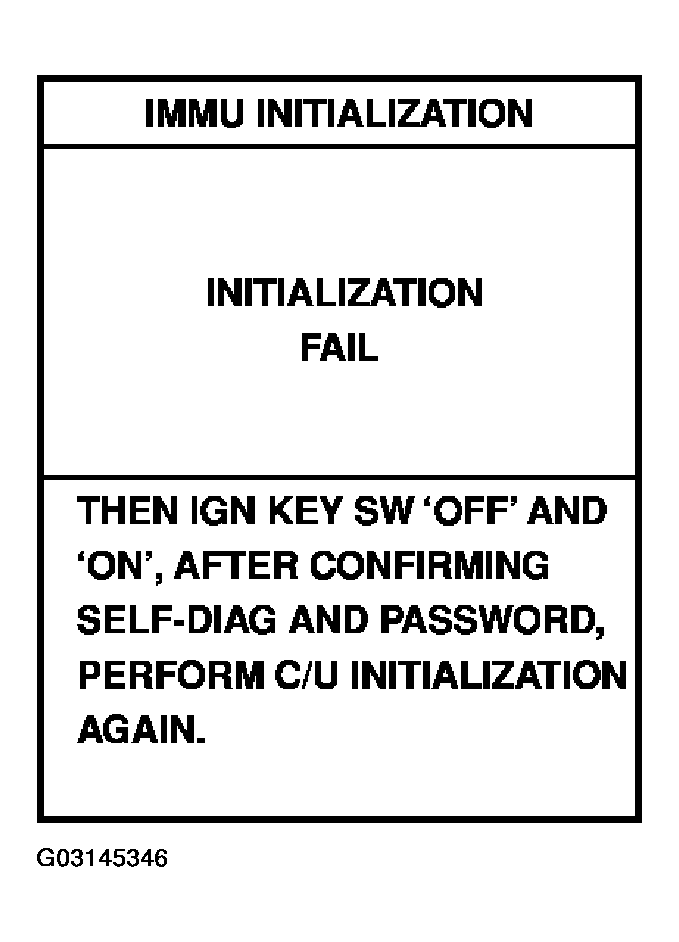

   NOTE: If the initialization is not completed or fails, CONSULT-II shows above message on the screen.

   Can the system be initialized?

   1. Yes: Start engine. (END)

      (System initialization had not been completed. Ref. part No. F  )

   2. No: ECM is malfunctioning.

      Replace ECM. Ref. part No. F

      Perform initialization with CONSULT-II.

      For initialization, refer to "CONSULT-II Operation Manual IVIS/NVIS".
