Washer Nozzle Adjustment

Adjust washer nozzle with suitable tool as shown in the figure at left.

Adjustable range: +/-10° (In any direction)

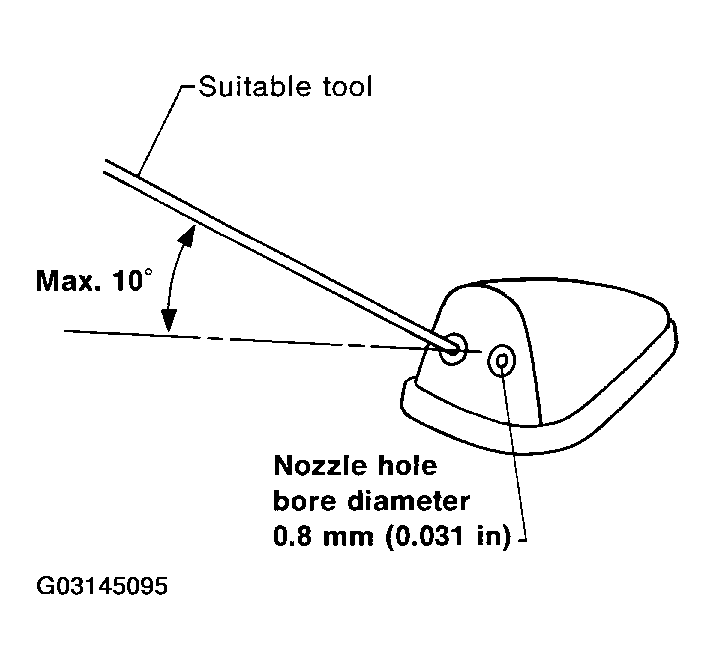

Fig 1: Adjusting Washer Nozzle With Suitable Tool
G03145095
Fig 2: Identifying Washer Nozzle Adjustable Range: +/-10° (In Any Direction)
G03145096
