Wiper Arms

1. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (Auto Stop).
2. Install wiper arm to portion A as in figure below and tighten wiper arm nut to specification.
3. Then, set wiper arm to portion B.

   : 13-18 N.m (1.3-1.8 kg-m, 9-13 ft-lb)

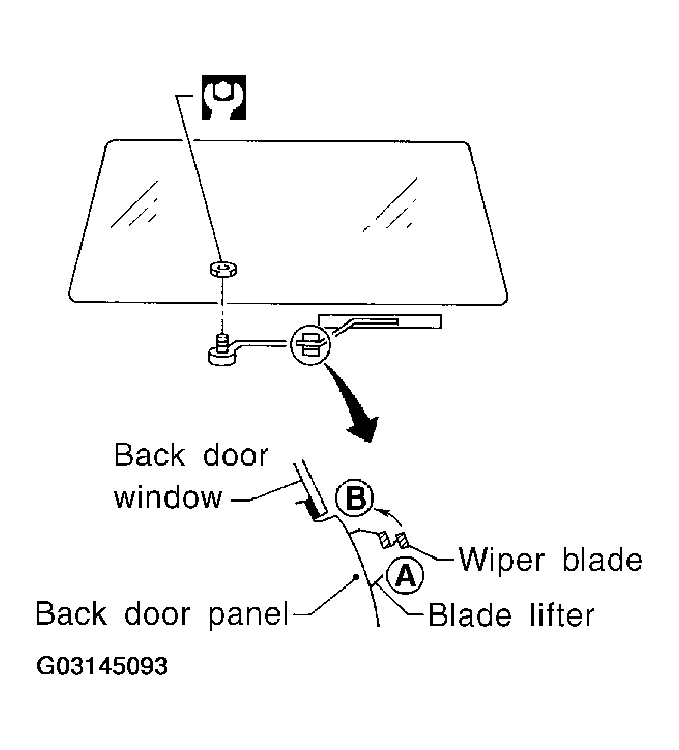

Fig 1: Installing Wiper Arm

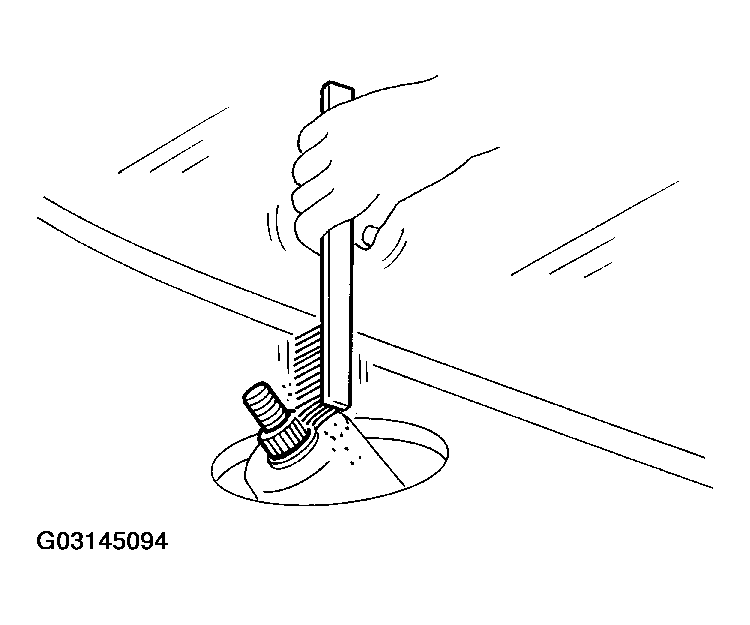

Before reinstalling wiper arm, clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.

Fig 2: Cleaning Up Pivot Area
