Wiper Linkage

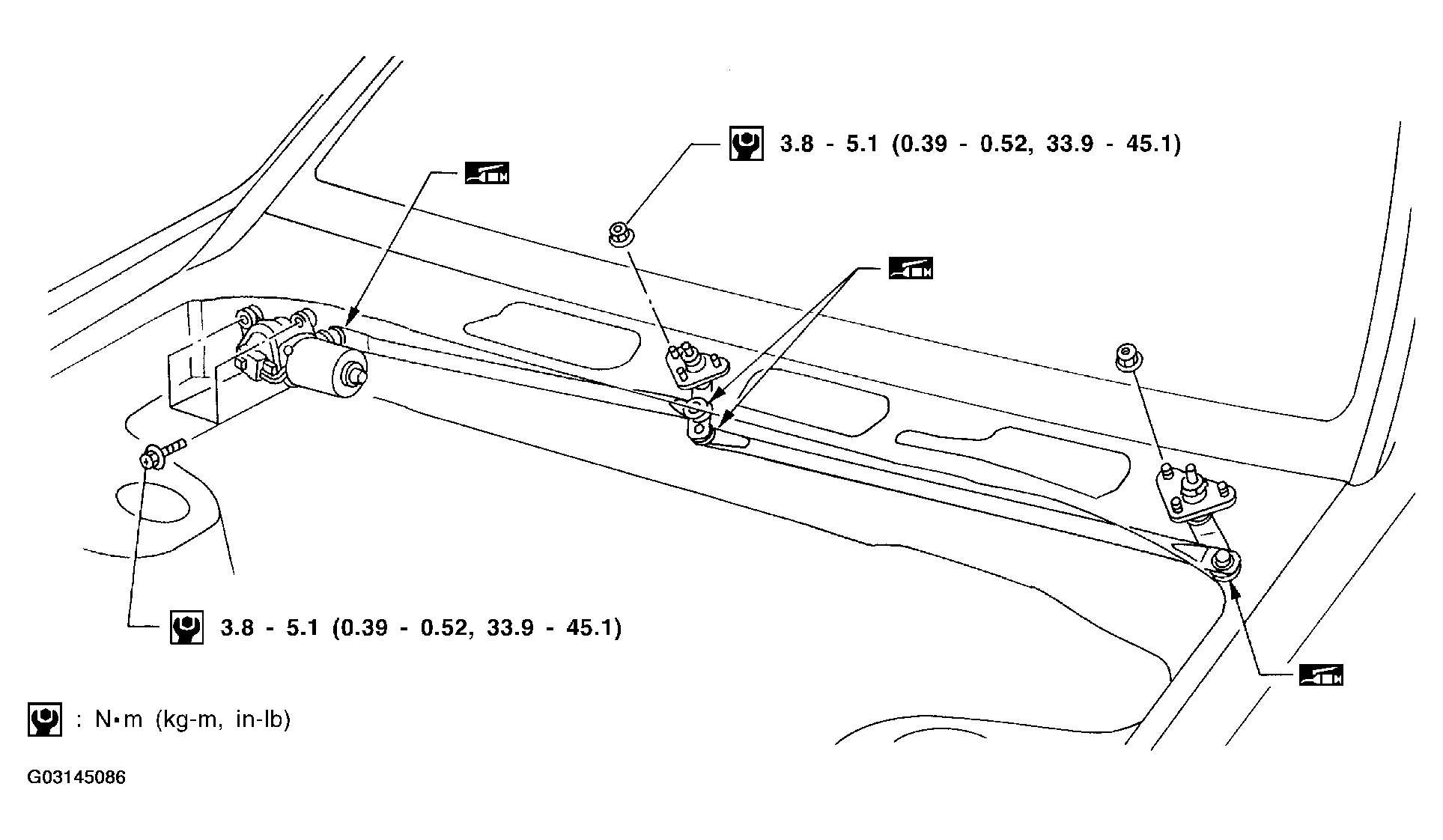

Fig 1: Removing Wiper Linkage
G03145086

Removal

  1. Remove 4 bolts that secure wiper motor.
  2. Detach wiper motor from wiper linkage at ball joint.
  3. Remove wiper linkage.

Be careful not to break ball joint rubber boot.

Installation

Grease ball joint portion before installation.

  1. Installation is the reverse order of removal.
