Wiring Diagram - HSEAT -

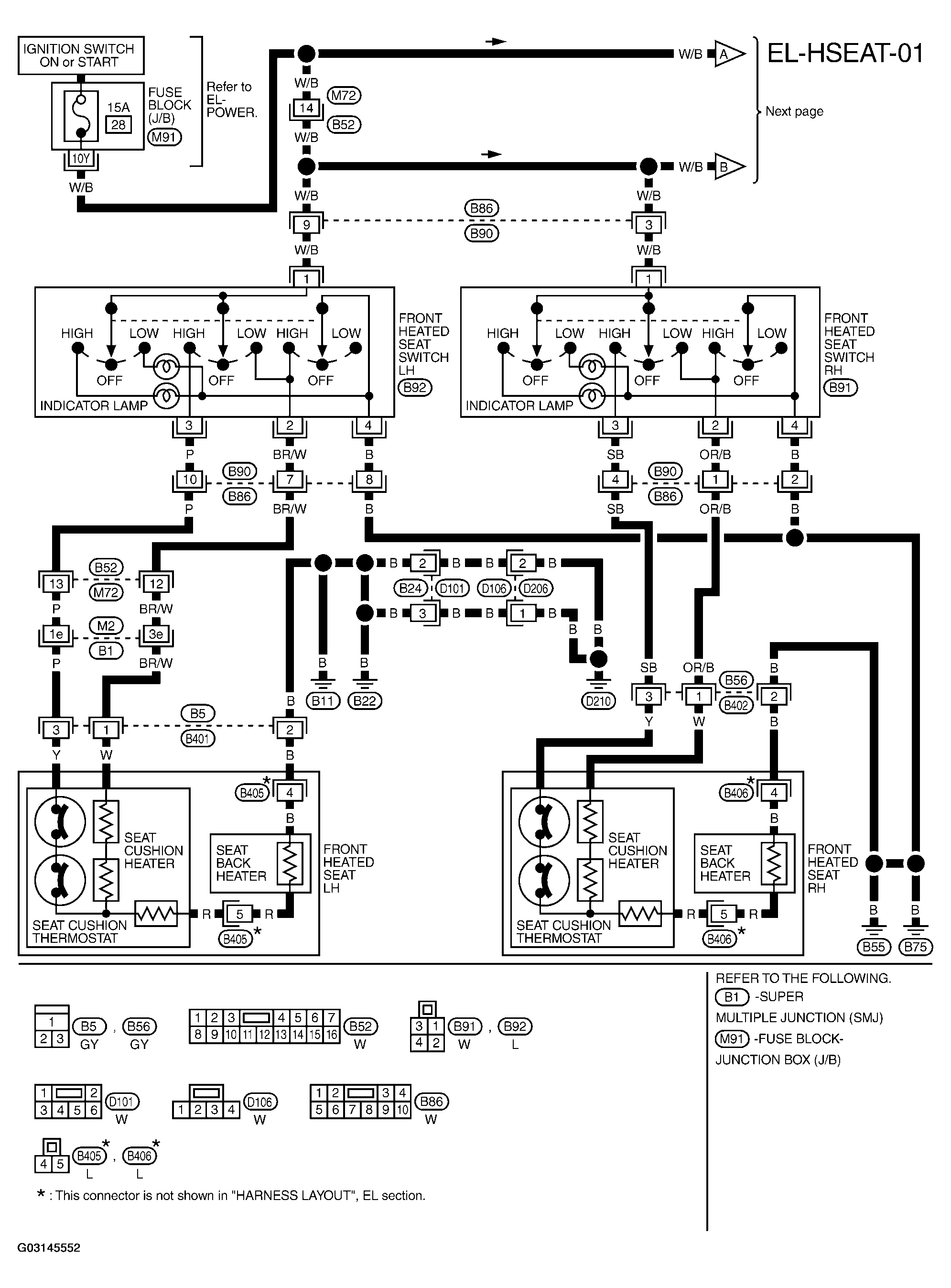

Fig 1: Heated Seat Wiring Diagram (1 Of 2)

G03145552

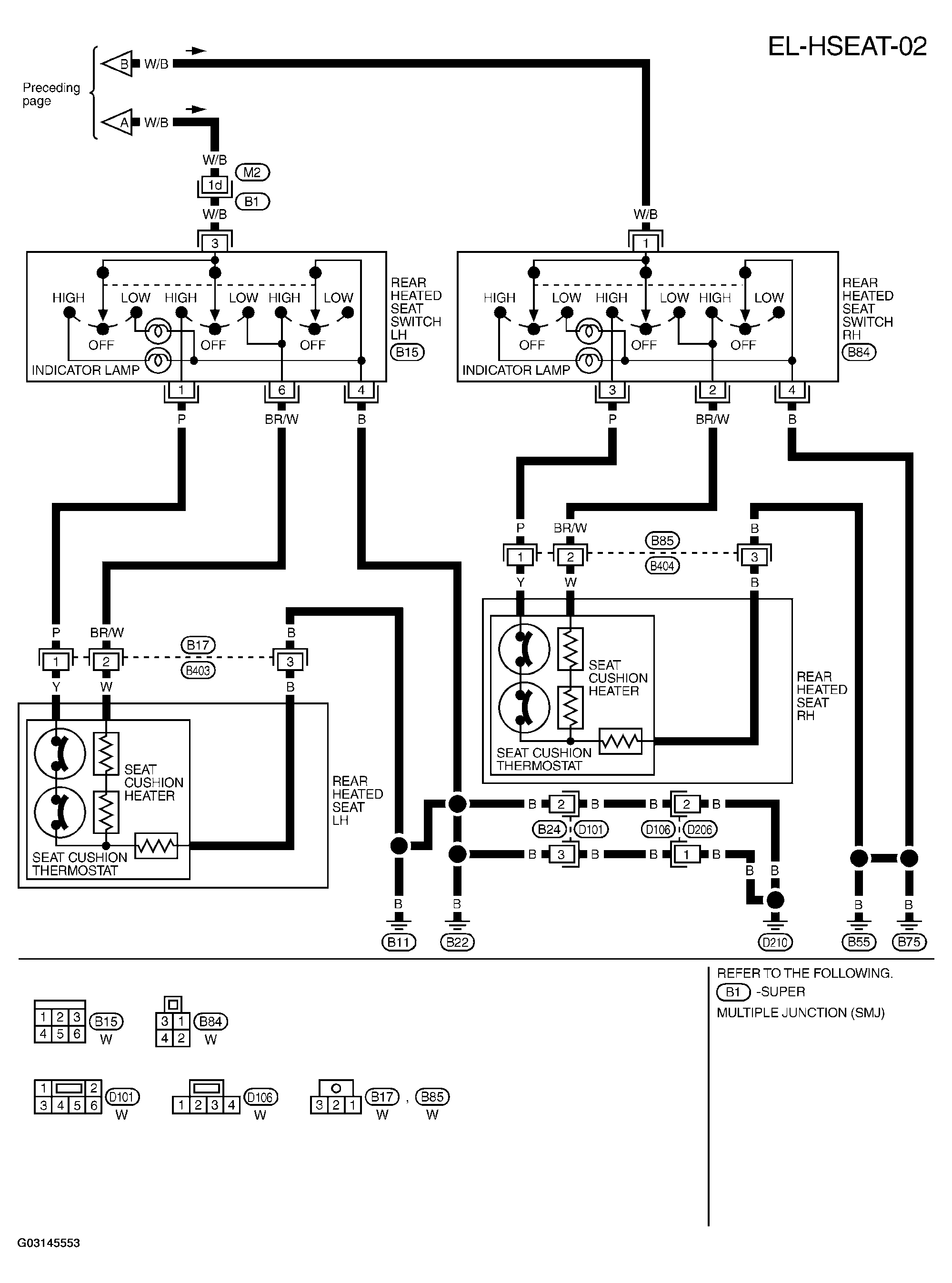

Fig 2: Heated Seat Wiring Diagram (2 Of 2)

G03145553
