Wiring Diagram - HSEAT -

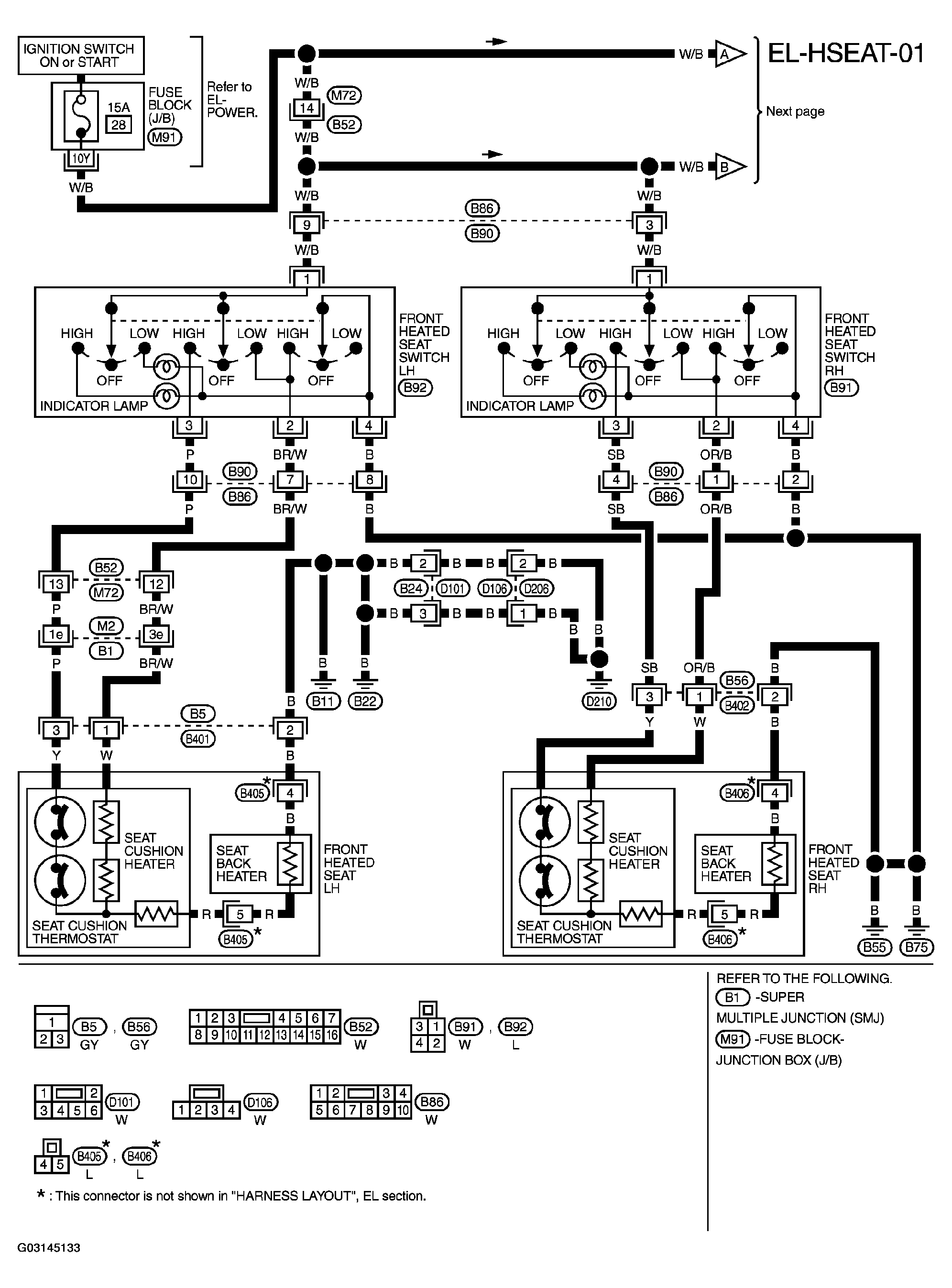

Fig 1: Heated Seat Wiring Diagram (1 Of 2)

G03145133

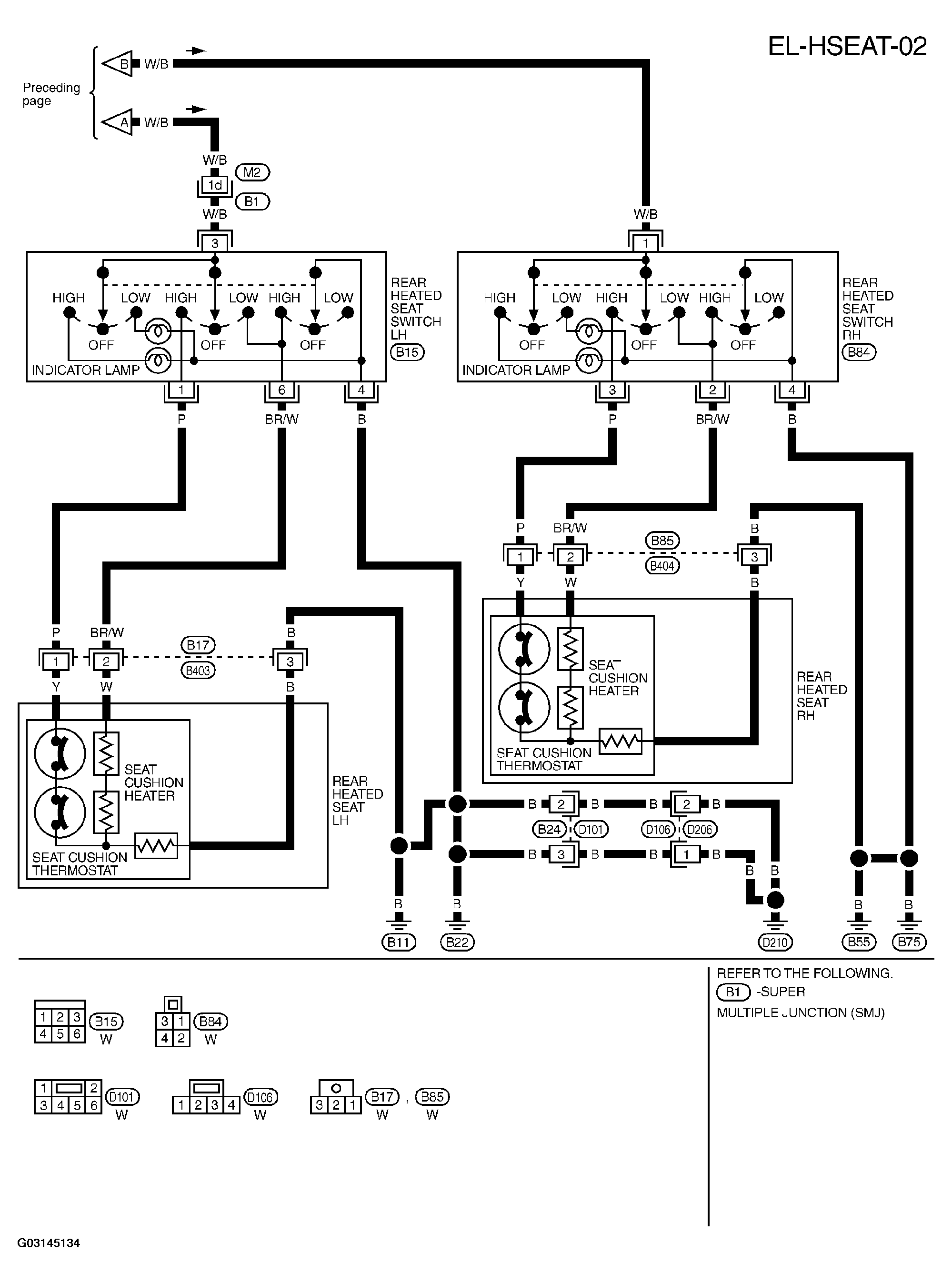

Fig 2: Heated Seat Wiring Diagram (2 Of 2)

G03145134
