Oil Pressure Switch Check
OIL PRESSURE SWITCH CHECK
| - |
Oil pressure kPa (kg/cm2
, psi) |
Continuity |
| Engine start |
More than 10 - 20 (0.1 - 0.2, 1 - 3) |
NO |
| Engine stop |
Less than 10 - 20 (0.1 - 0.2, 1 - 3) |
YES |

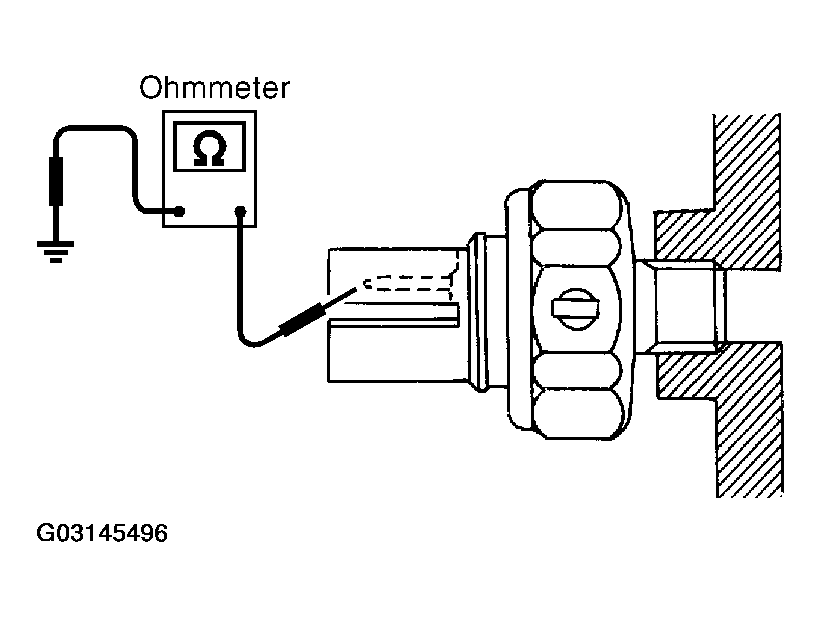

Check the continuity between the terminals of oil pressure switch and body ground.
