Wiring Diagram - CHIME -

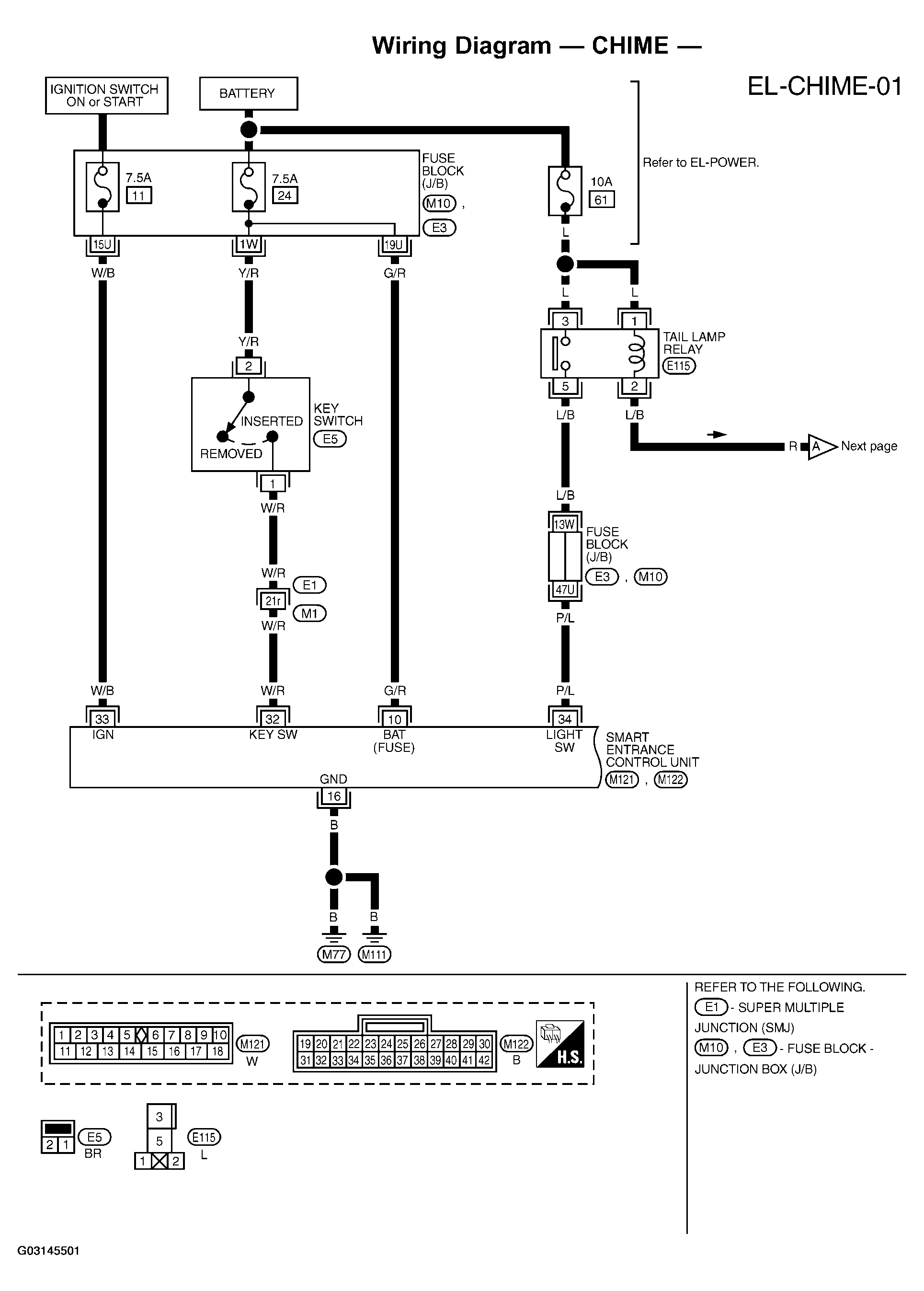

Fig 1: Wiring Diagram - Chime (1 Of 2)

G03145501

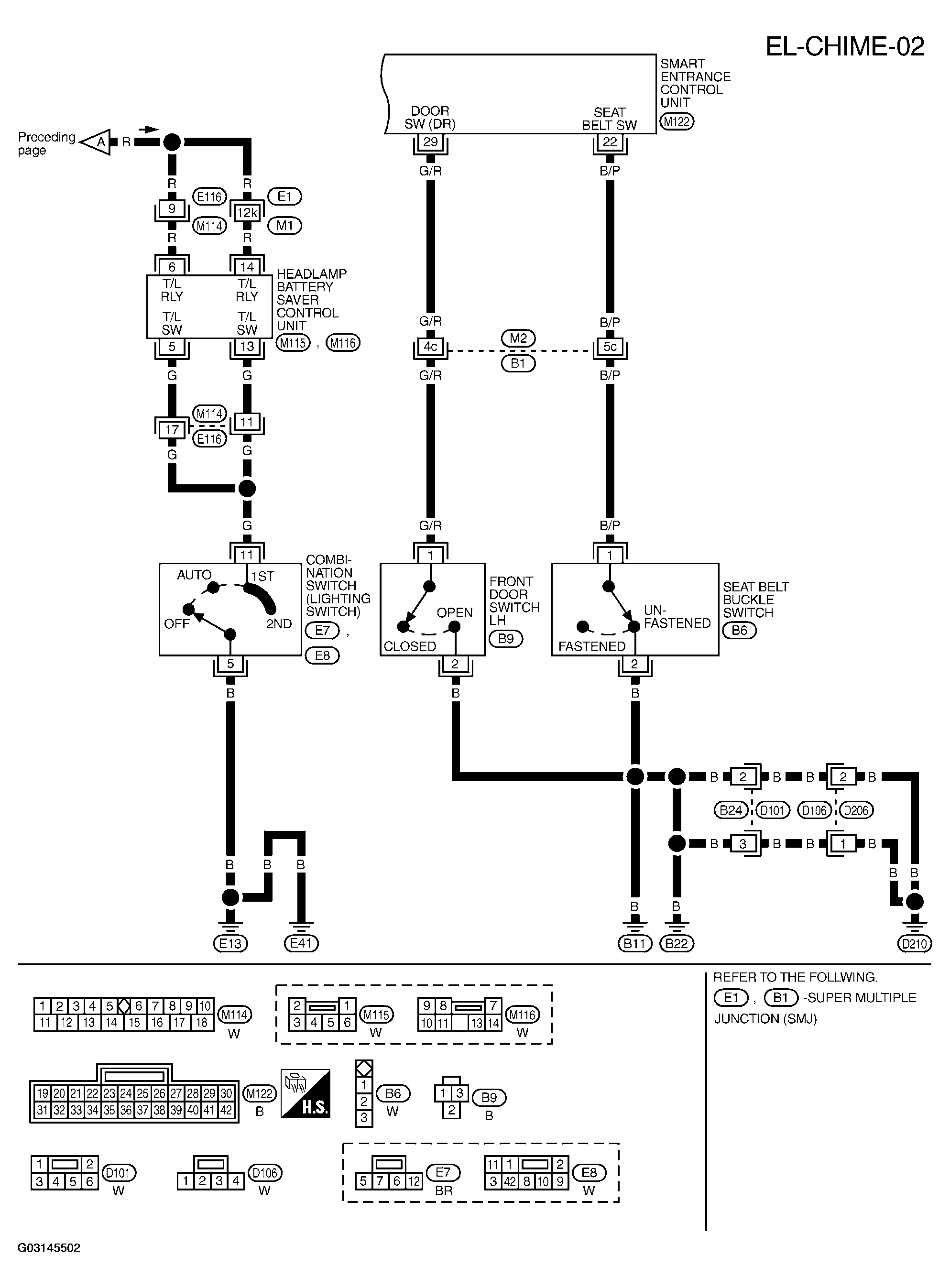

Fig 2: Wiring Diagram - Chime (2 Of 2)

G03145502
