Ground Circuit Check: Notes

GROUND CIRCUIT CHECK

Terminals	Continuity
16 - Ground	Yes

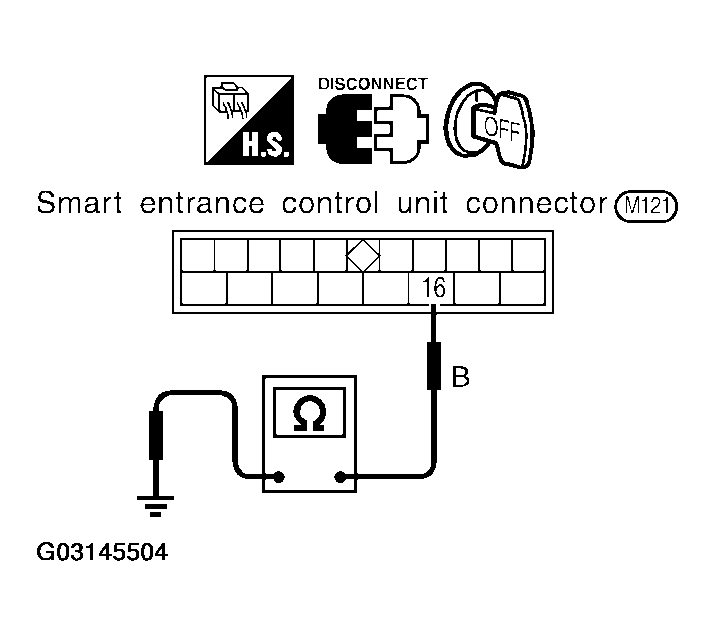

Fig 1: Checking Ground Circuit

G03145504
