Warning Chime - Early
>>
Warning Chime
>>
Wiring Diagram - CHIME -
Wiring Diagram - CHIME -

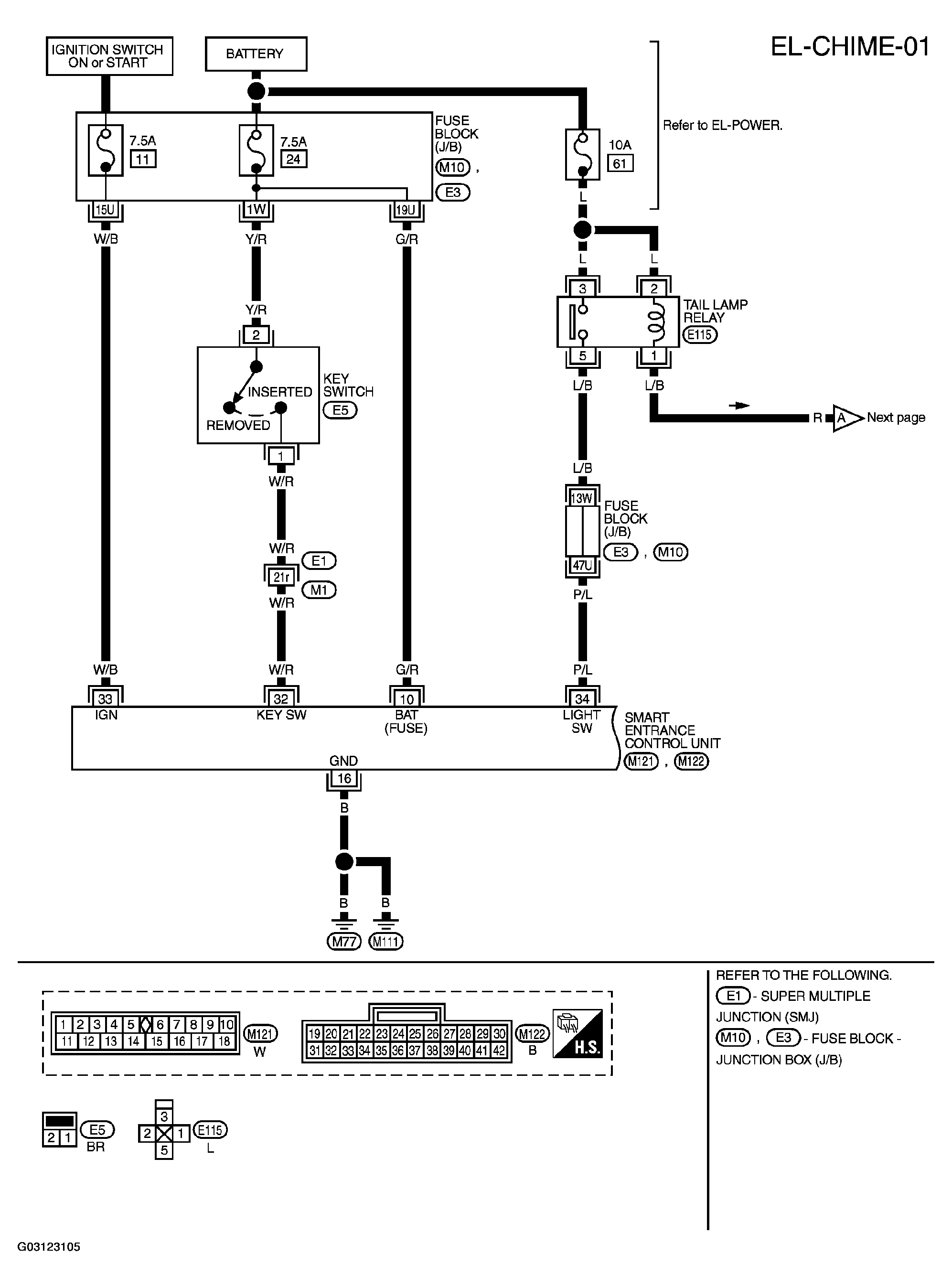

Fig 1: Wiring Diagram - Chime (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

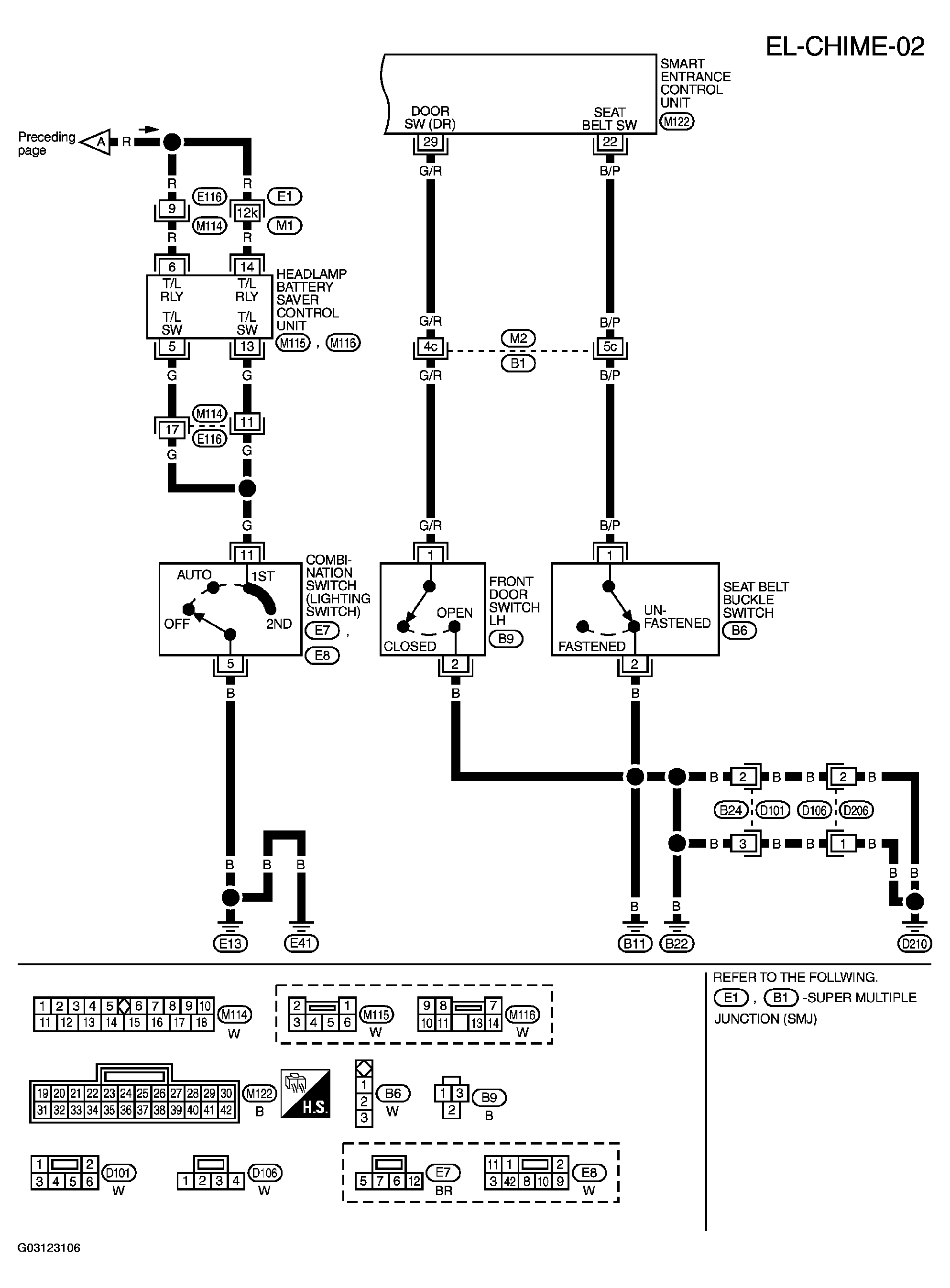

Fig 2: Wiring Diagram - Chime (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
