Power Supply Circuit Check

POWER SUPPLY CIRCUIT SPECIFICATIONS

Terminals Ignition switch position
(+) (-) OFF ACC ON
10 Ground Battery voltage Battery voltage Battery voltage
33 Ground 0V 0V Battery voltage

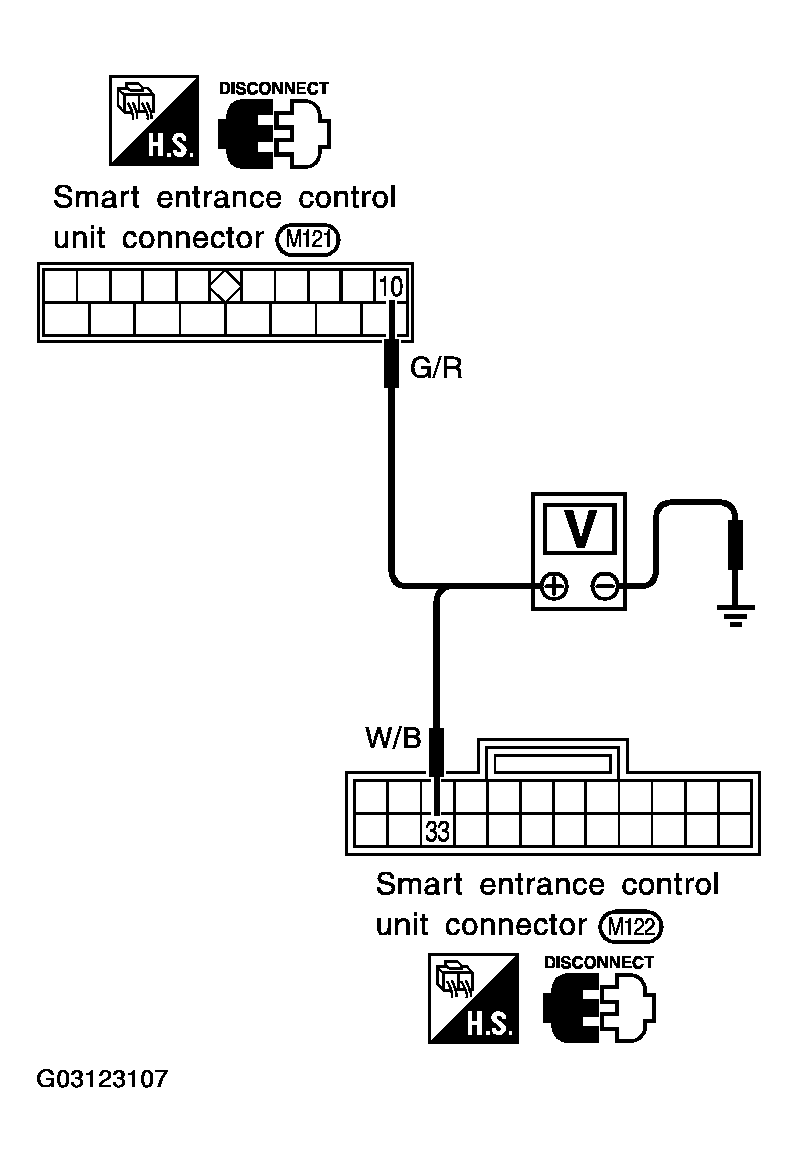

Fig 1: Checking Power Supply Circuit
G03123107Courtesy of NISSAN MOTOR CO., U.S.A.
