Key Switch (Insert) Check

CHECK KEY SWITCH INPUT SIGNAL
Check voltage between smart entrance control unit terminal 32 and ground.

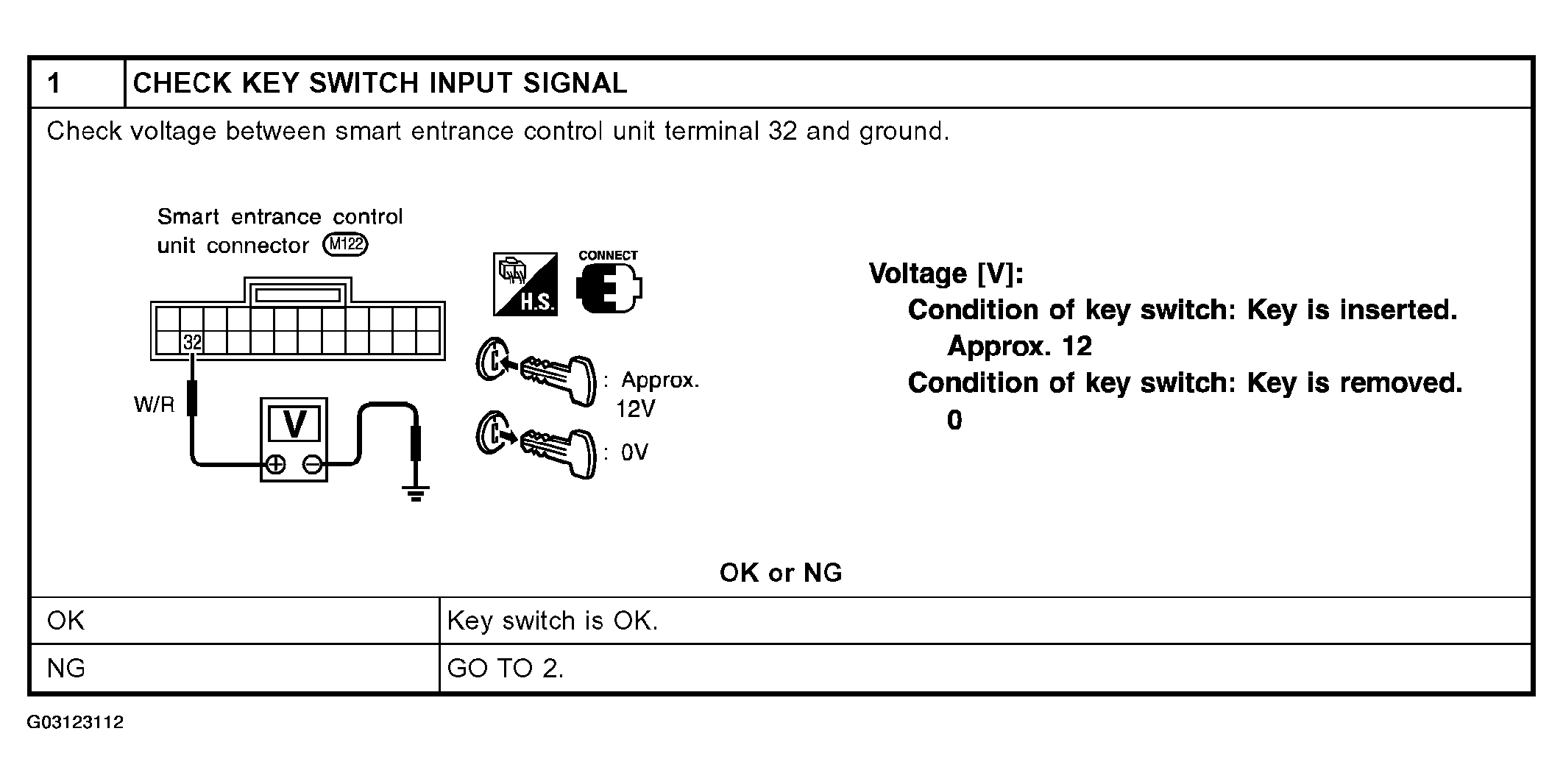

Fig 1: Checking Key Switch Input Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

Voltage [V]:

Condition of key switch: Key is inserted. Approx. 12

Condition of key switch: Key is removed. 0

OK or NG
1. OK: Key switch is OK.
2. NG: GO TO 2.
CHECK KEY SWITCH (INSERT)
Check continuity between terminals 1 and 2.

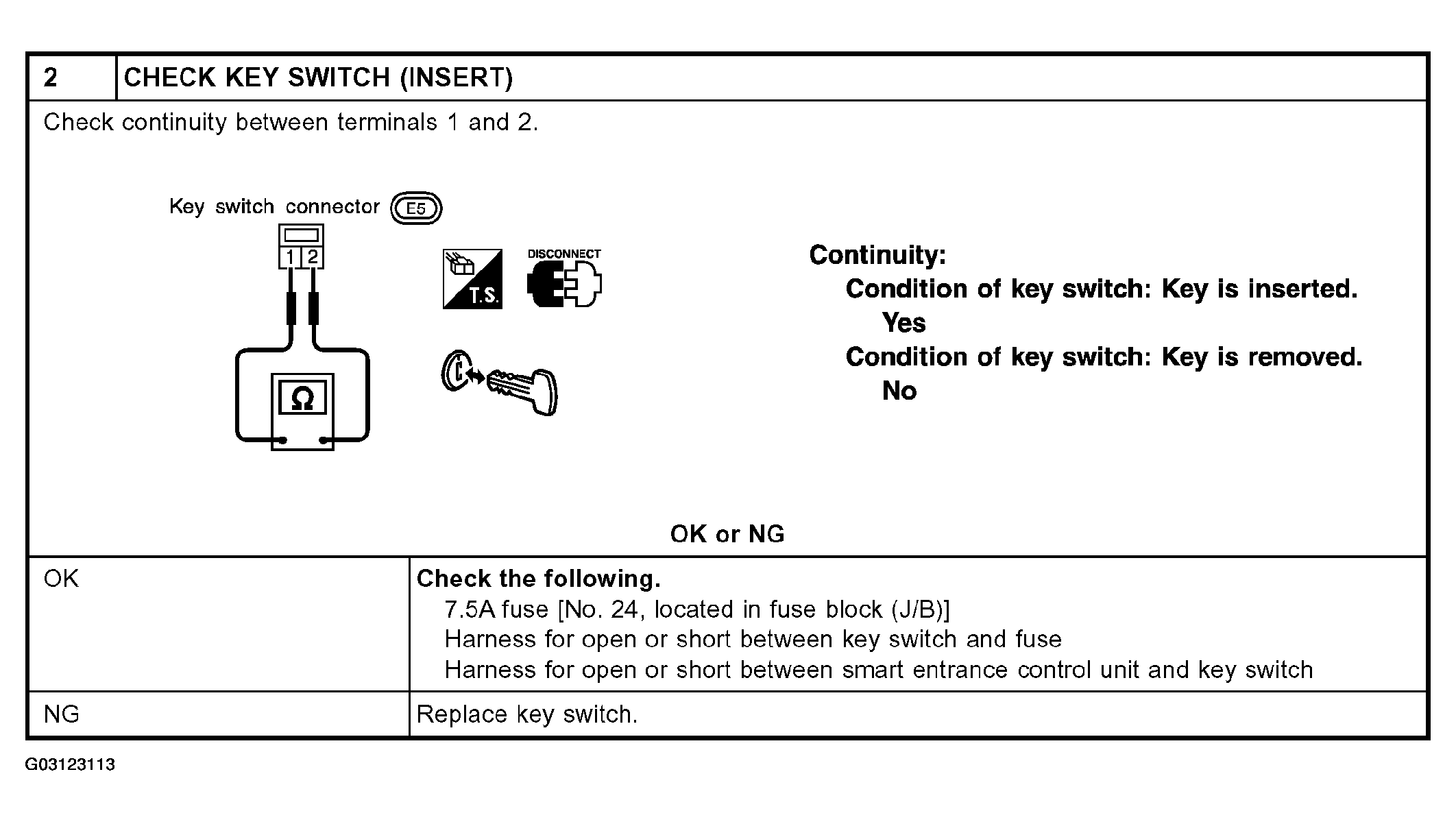

Fig 2: Checking Key Switch (Insert)
Courtesy of NISSAN MOTOR CO., U.S.A.

Continuity:

Condition of key switch: Key is inserted. Yes

Condition of key switch: Key is removed. No

OK or NG
1. OK: Check the following.
  7.5A fuse [No. 24, located in fuse block (J/B)]

  Harness for open or short between key switch and fuse

  Harness for open or short between smart entrance control unit and key switch
2. NG: Replace key switch.
