Driver Side Door Switch Check

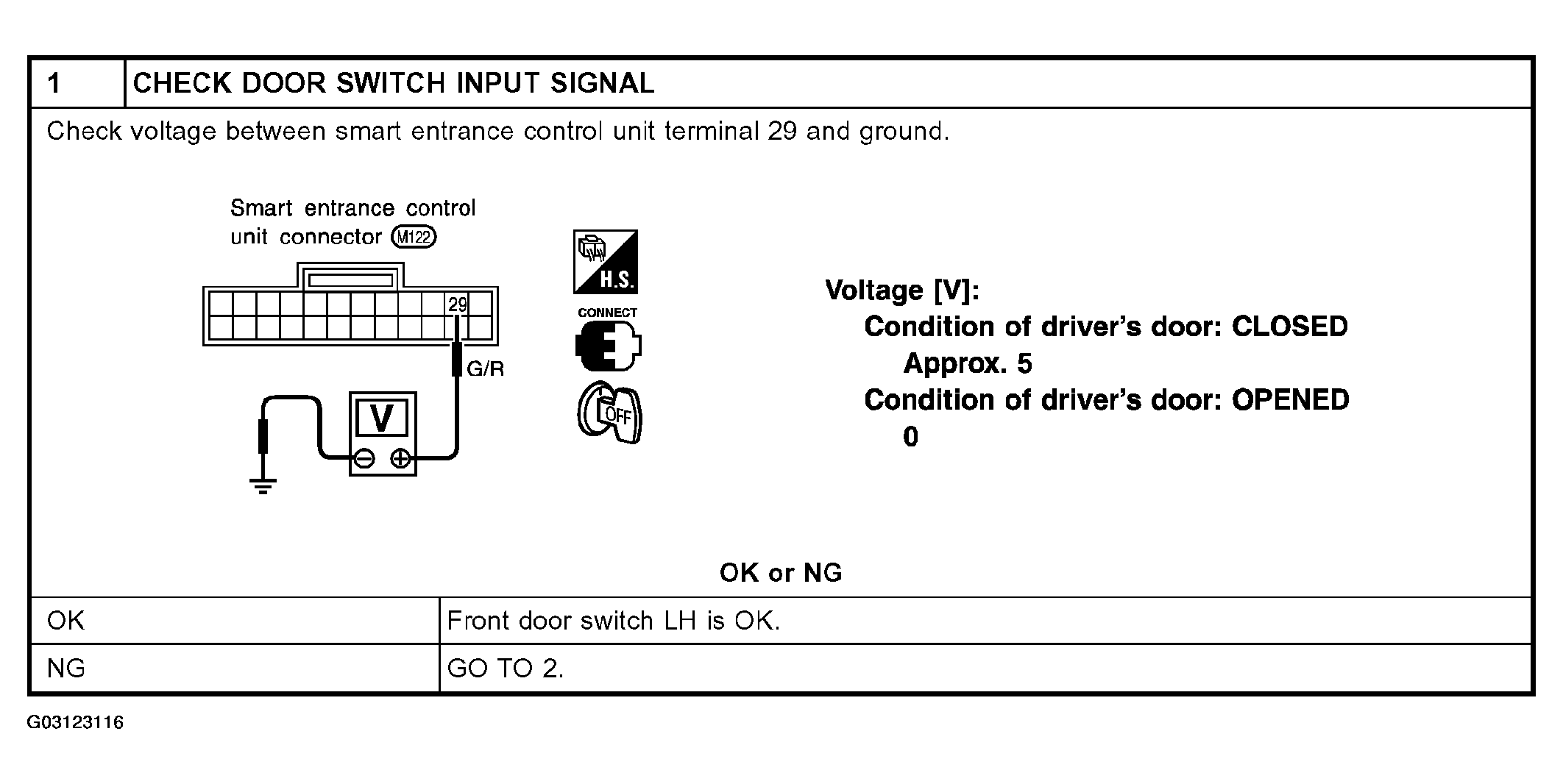

Check voltage between smart entrance control unit terminal 29 and ground.

Fig 1: Checking Door Switch Input Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

Voltage [V]:

Condition of driver's door: CLOSED Approx. 5

Condition of driver's door: OPENED 0

OK or NG

1. OK: Front door switch LH is OK.
2. NG: GO TO 2.

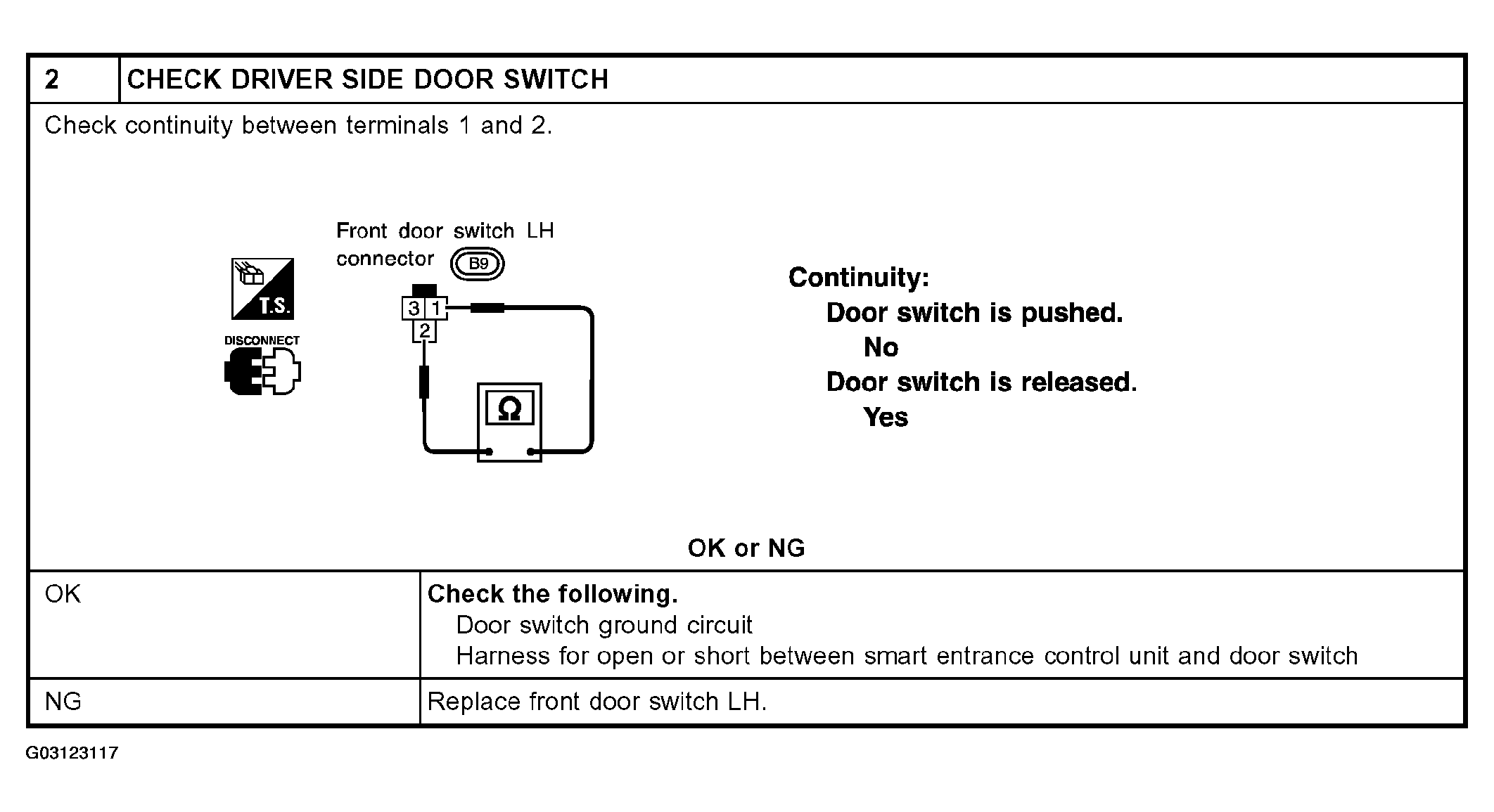

Check continuity between terminals 1 and 2.

Fig 2: Checking Driver Side Door Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Continuity:

Door switch is pushed. No

Door switch is released. Yes

OK or NG

1. OK: Check the following.

   Door switch ground circuit

   Harness for open or short between smart entrance control unit and door switch

2. NG: Replace front door switch LH.
