Power Supply And Ground Circuit Check

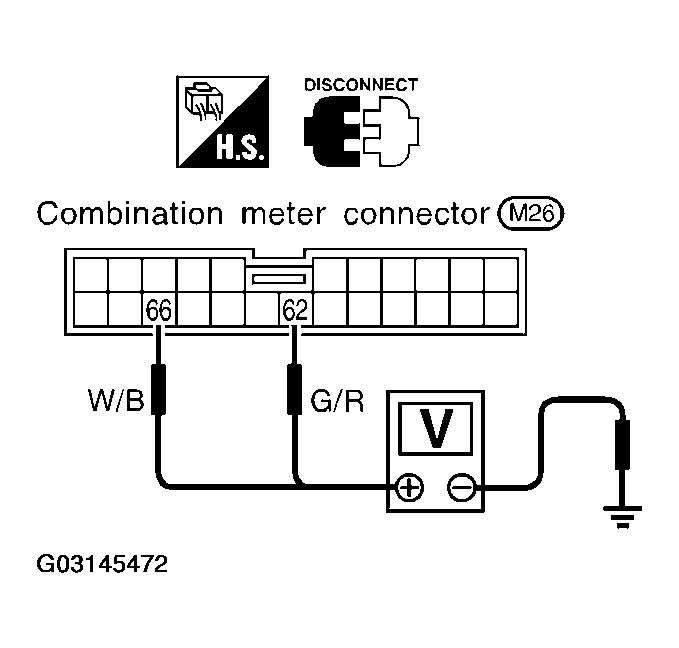

Power Supply Circuit Check
POWER SUPPLY CIRCUIT CHECK
| Terminals | Ignition switch position | |||
|---|---|---|---|---|
| (+) | (-) | OFF | ACC | ON |
| 62 | Ground | Battery voltage | Battery voltage | Battery voltage |
| 66 | Ground | 0V | 0V | Battery voltage |
If NG, check the following.
10A fuse [No. 12, located in fuse block (J/B)]
10A fuse [No. 30, located in fuse block (J/B)]
Harness for open or short between fuse and combination meter

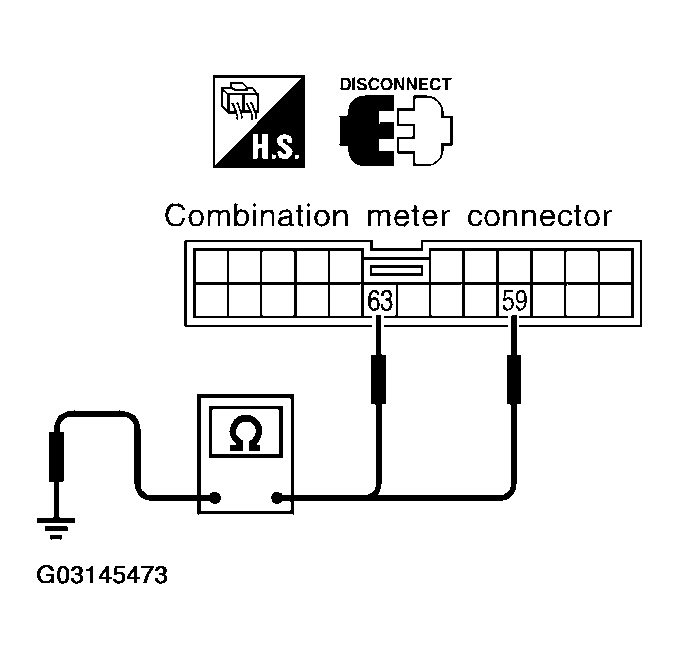

Ground Circuit Check
GROUND CIRCUIT CHECK
| Terminals | Continuity | ||
|---|---|---|---|
| (+) | (-) | ||
| Connector | Terminal (wire color) | ||
| M26 | 59 (B) | Ground | Yes |
| 63 (SB) | |||
