Inspection/Thermal Transmitter

Refer to THERMAL TRANSMITTER CHECK  .

OK or NG

1. OK: GO TO 2.
2. NG: Replace.

1. Disconnect combination meter connector and thermal transmitter connector.
2. Check continuity between combination meter terminal 18 and thermal transmitter terminal 1.

   Continuity should exist.

3. Check continuity between combination meter terminal 18 and ground.

Continuity should not exist.

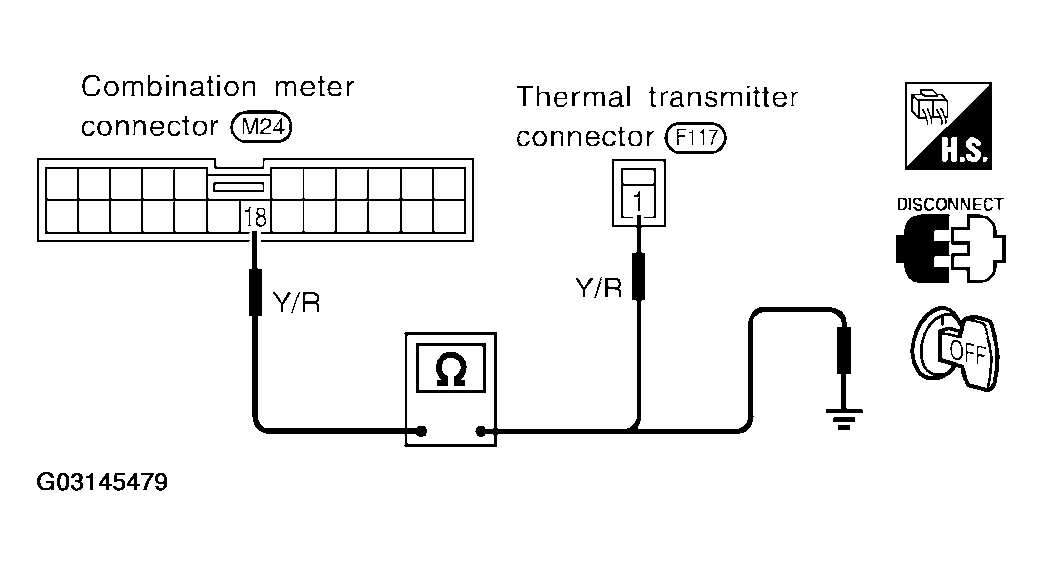

Fig 1: Checking Continuity Between Terminal 18 And Thermal Transmitter Terminal 1

OK or NG

1. OK: Thermal transmitter is OK.
2. NG: Repair harness or connector.
