Inspection/Engine Revolution Signal

  1. CHECK ECM OUTPUT
    1. Start engine.
    2. Check voltage between combination meter terminals 16 and ground at idle and 2,000 rpm.

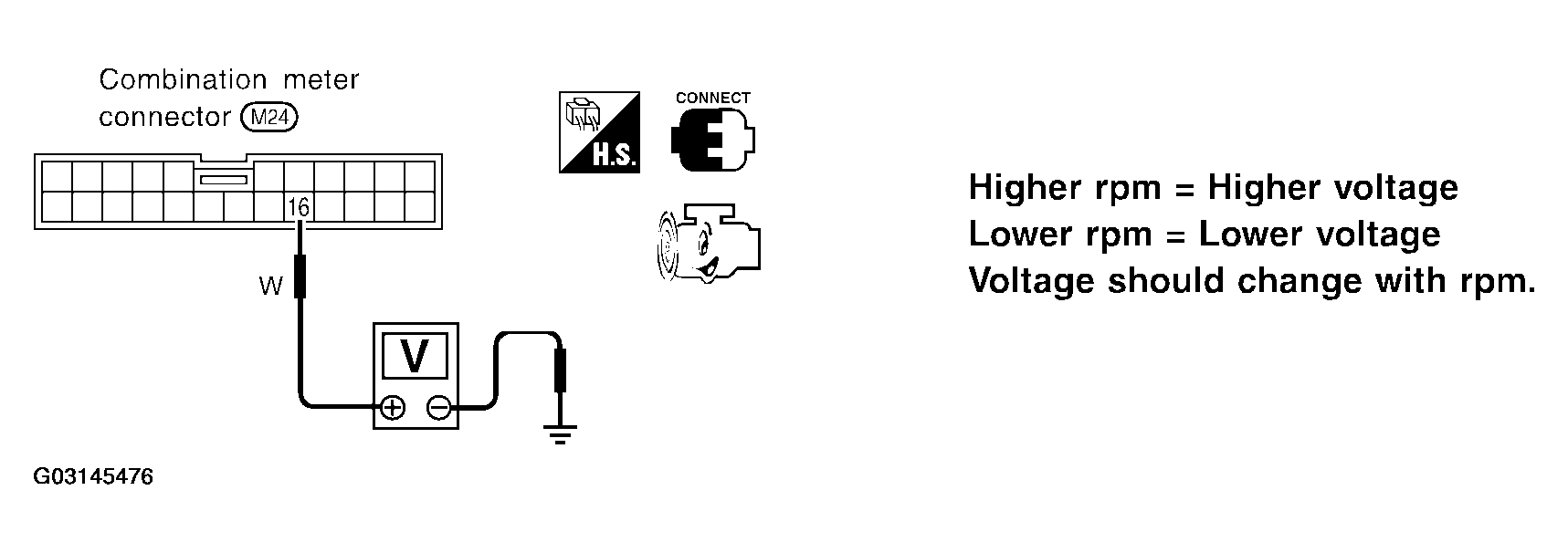

    Fig 1: Checking Voltage Between Terminals 16 And Ground
    G03145476

    OK or NG

    1. OK: Engine revolution signal is OK.
    2. NG: Harness for open or short between ECM and combination meter
