How To Alternate Diagnosis Mode
- Turn ignition switch to ON and change odo/trip meter to "TRIP A" or "TRIP B".
- Turn ignition switch to OFF.

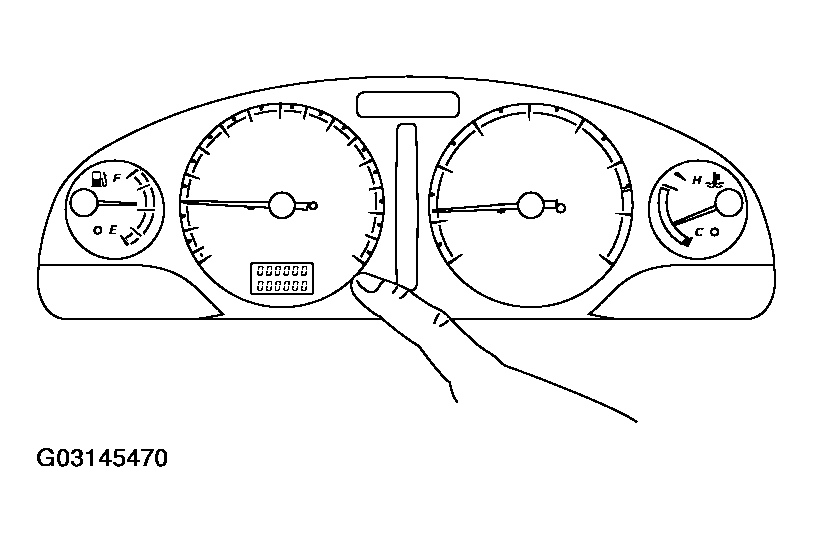

- Turn ignition switch to ON when pushing odo/trip meter switch.
- Push odo/trip meter switch 1 second.
- Release odo/trip meter switch.
- Push odo/trip meter switch more than three times within 7 seconds.

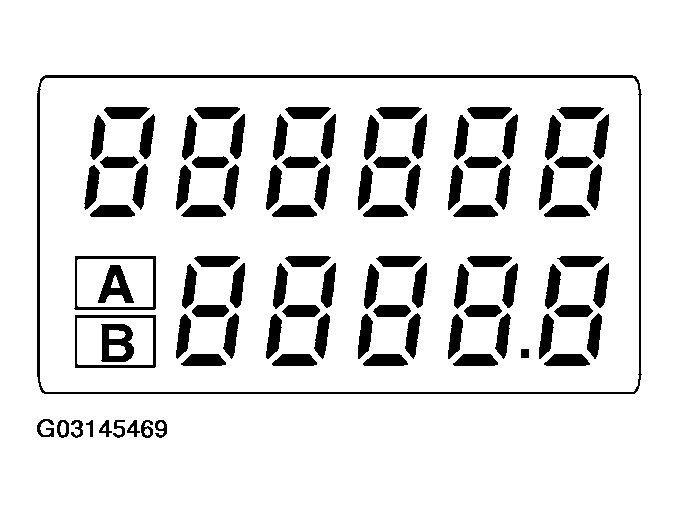

- All odo/trip meter segments should be turned on.NOTE: If some segments are not turned on, unified meter control unit with odo/trip meter should be replaced.
At this point, the unified control meter is turned to diagnosis mode.
- Push odo/trip meter switch. Indication of each meter/gauge should be as shown left during pushing odo/trip meter switch if it is no malfunctioning.
NOTE:
It takes about a few seconds for indication of fuel gauge and water temperature gauge to become stable.
