Thermal Transmitter Check

Check the resistance between the terminals of thermal transmitter and body ground.

THERMAL TRANSMITTER CHECK

Water temperature Resistance
60°C (140°F) Approx. 170 - 210ohm
100°C (212°F) Approx. 47 - 53ohm

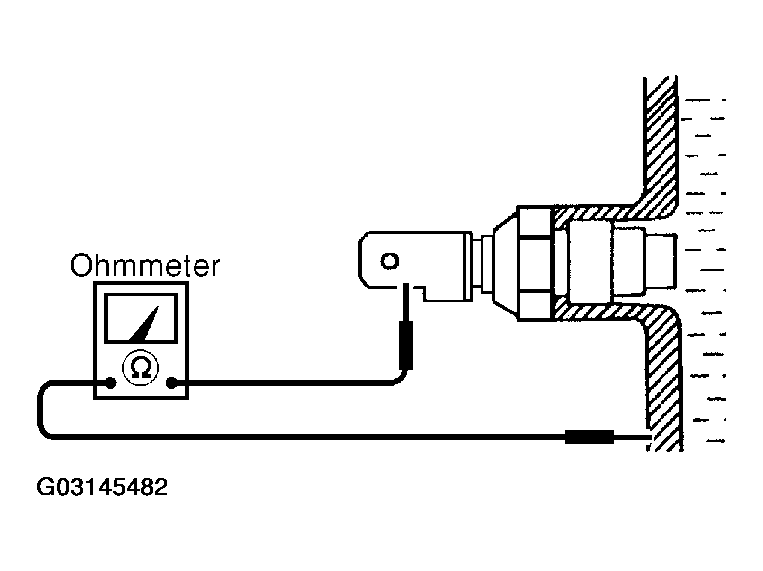

Fig 1: Checking Thermal Transmitter
G03145482
