Consult-II Inspection Procedure

1. Turn ignition switch OFF.
2. Insert IVIS (NATS) program card into CONSULT-II.

   Program card

   NATS (AEN00A)

3. Connect CONSULT-II to data link connector.

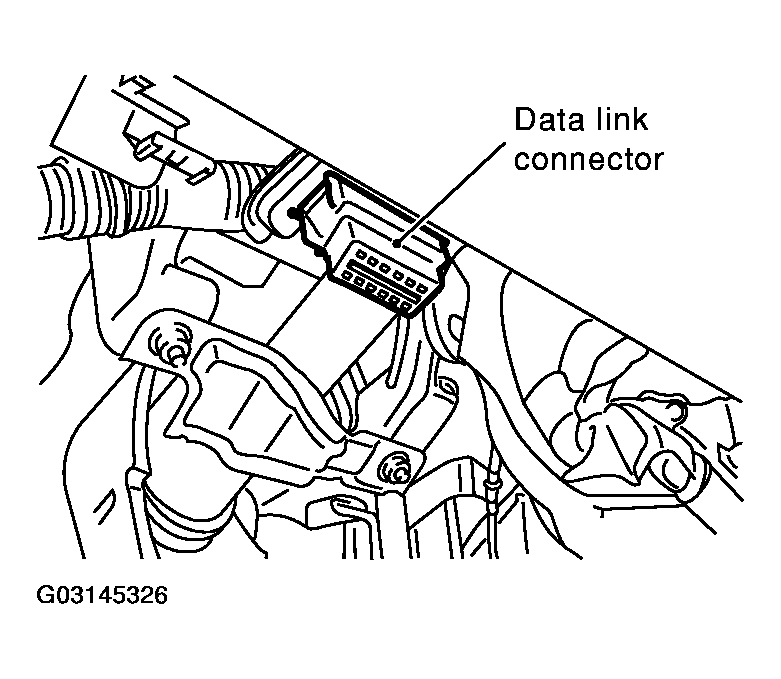

   Fig 1: Connecting CONSULT-II To Data Link Connector


4. Turn ignition switch ON.
5. Touch "START".
   Fig 2: Displaying START On Consult-II Screen


6. Select "NATS V.5.0".
   Fig 3: Displaying NATS V.5.0 On Consult-II Screen


7. Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual, IVIS/NVIS.

Fig 4: Identifying Diagnostic Test Mode
