DTC C1210/36, C1336/39: Zero Point Calibration Of Yaw Rate Sensor Undone, Zero Point Calibration Of Deceleration Sensor Undone: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

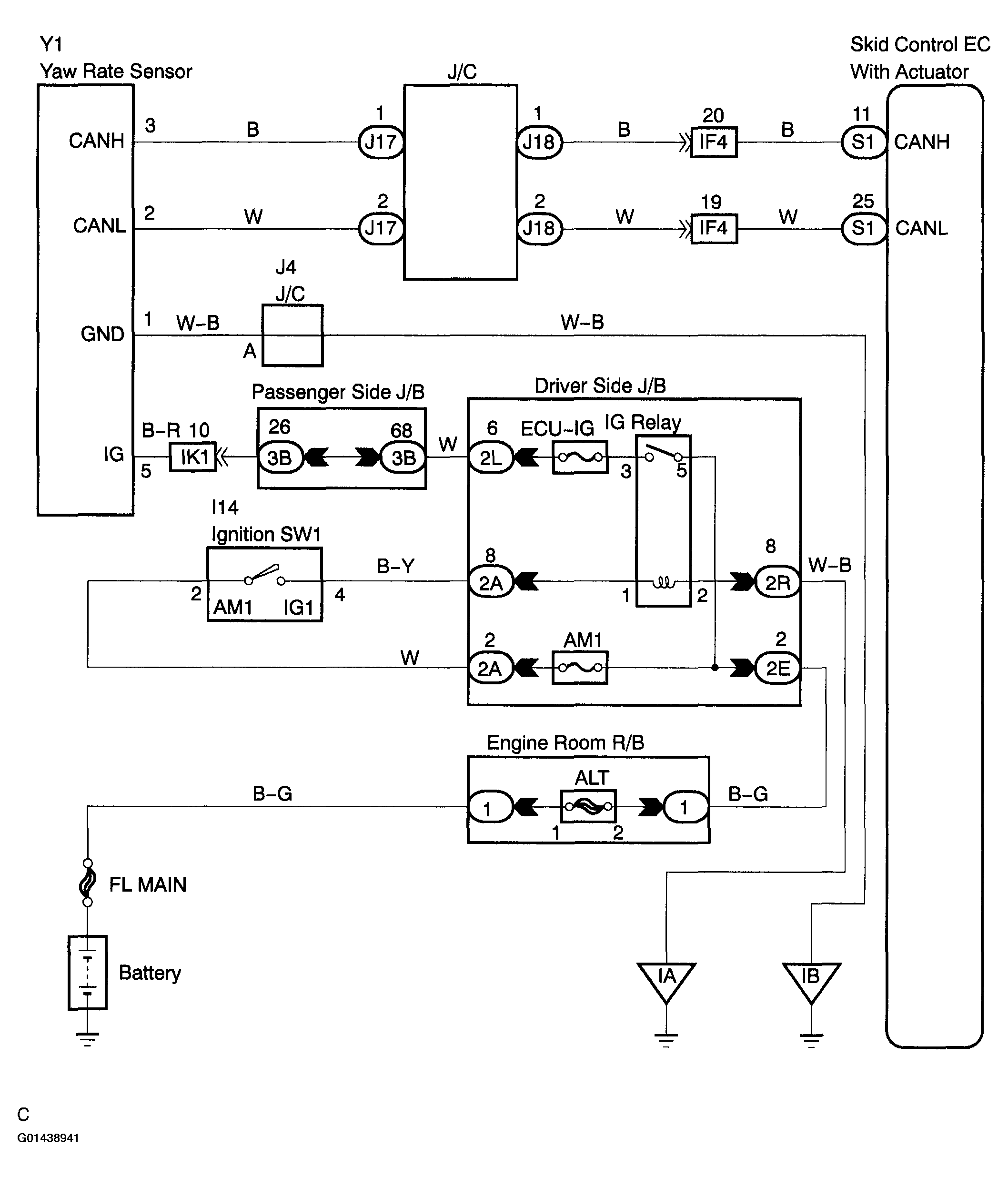

Fig 1: Zero Point Calibration Of Yaw Rate & Deceleration Sensor Wiring Diagram
G01438941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
