Seat Belt Buckle Switch Check

1. Turn ignition switch "ON".
2. Check voltage between smart entrance control unit terminal 22 and ground.

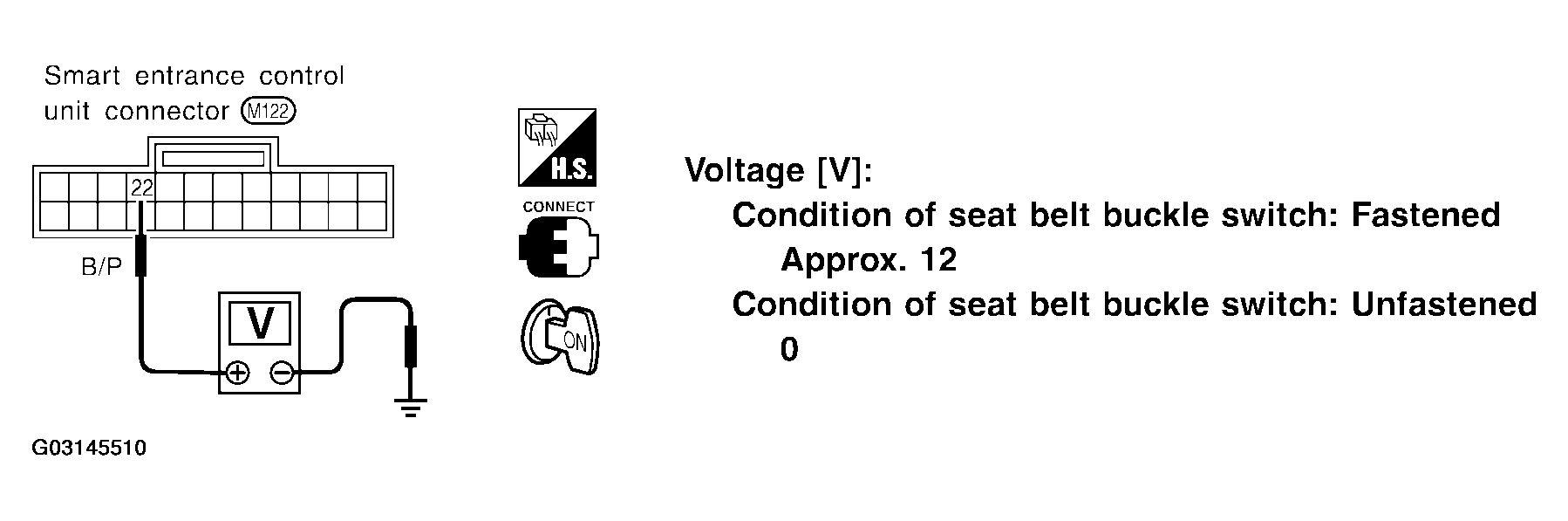

Fig 1: Checking Voltage Between Terminal 22 And Ground

OK or NG

1. OK: Seat belt buckle switch is OK.
2. NG: GO TO 2.

Check continuity between terminals 1 and 2 when seat belt is fastened and unfastened.

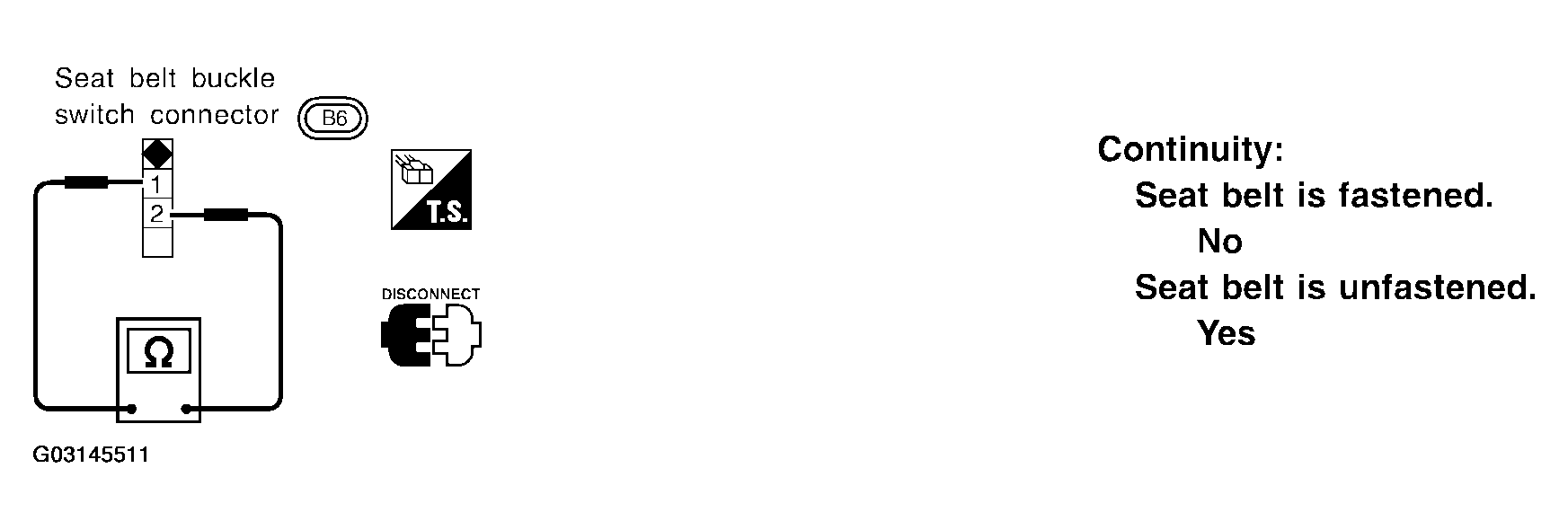

Fig 2: Checking Continuity Between Terminals 1 And 2

OK or NG

1. OK: Check the following.

   Seat belt buckle switch ground circuit

   Harness for open or short between smart entrance control unit and seat belt buckle switch

2. NG: Replace seat belt buckle switch.
