Home >> Infiniti >> 2001 >> QX4 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Warning Chime - Late - Previous >> Warning Chime >> Component Parts and Harness Connector Location

Component Parts and Harness Connector Location

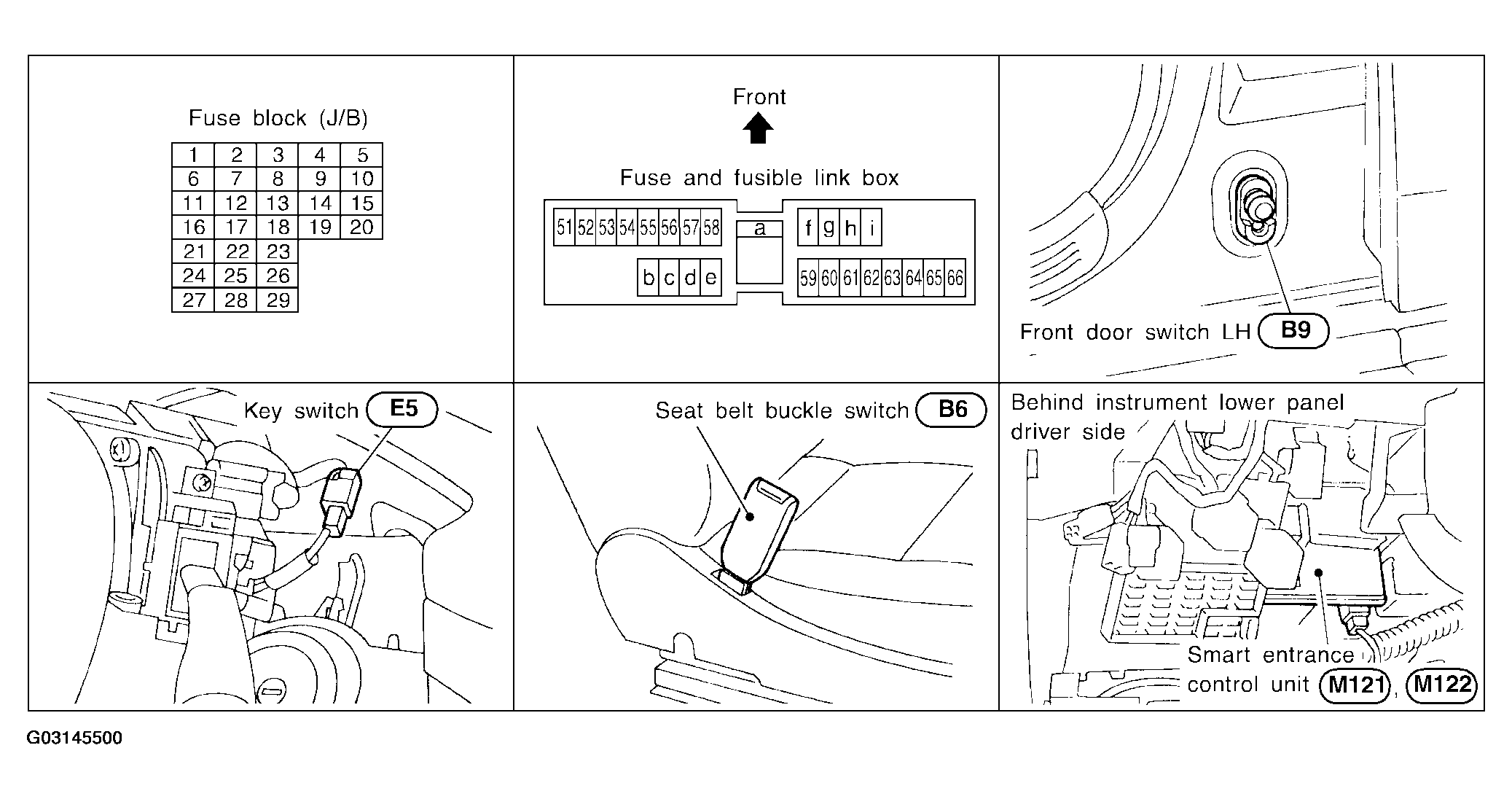

Fig 1: Warning Chime Component Parts And Harness Connector Location

G03145500
