Fuel Level Sensor Unit Check

Check the resistance between terminals 3 and 2.

FUEL LEVEL SENSOR UNIT CHECK

Ohmmeter

Float position mm (in)

Resistance value ohm

(+)

(-)

⁽¹⁾ 1

Full

95 (3.74)

Approx. 4 - 6

1/2

184 (7.24)

31 - 34

⁽¹⁾ 3

Empty

265 (10.43)

80 - 83

⁽¹⁾	When float rod is in contact with stopper.

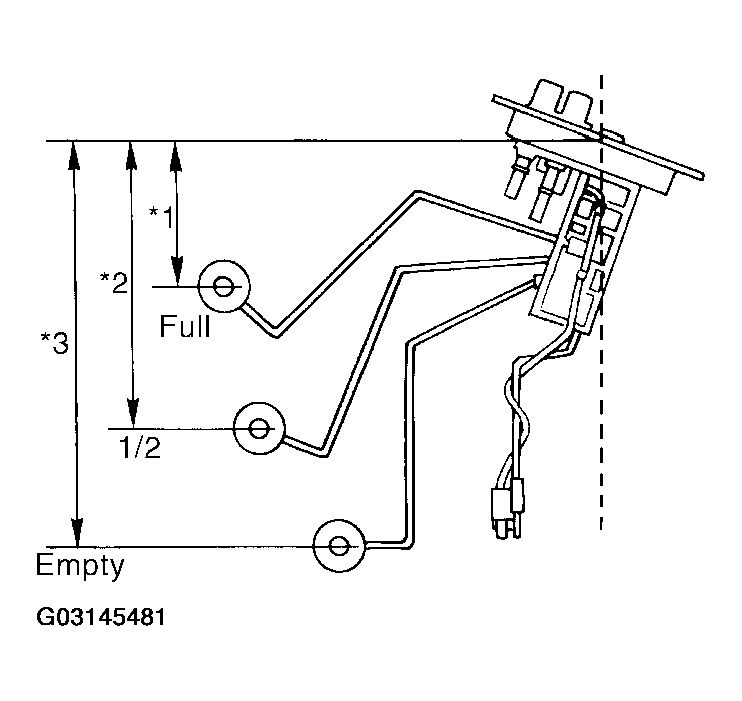

Fig 1: Checking Fuel Level Sensor Unit
