Wiring Diagram - WARN

NOTE: For complete System Wiring Diagram information see WARNING SYSTEMS .

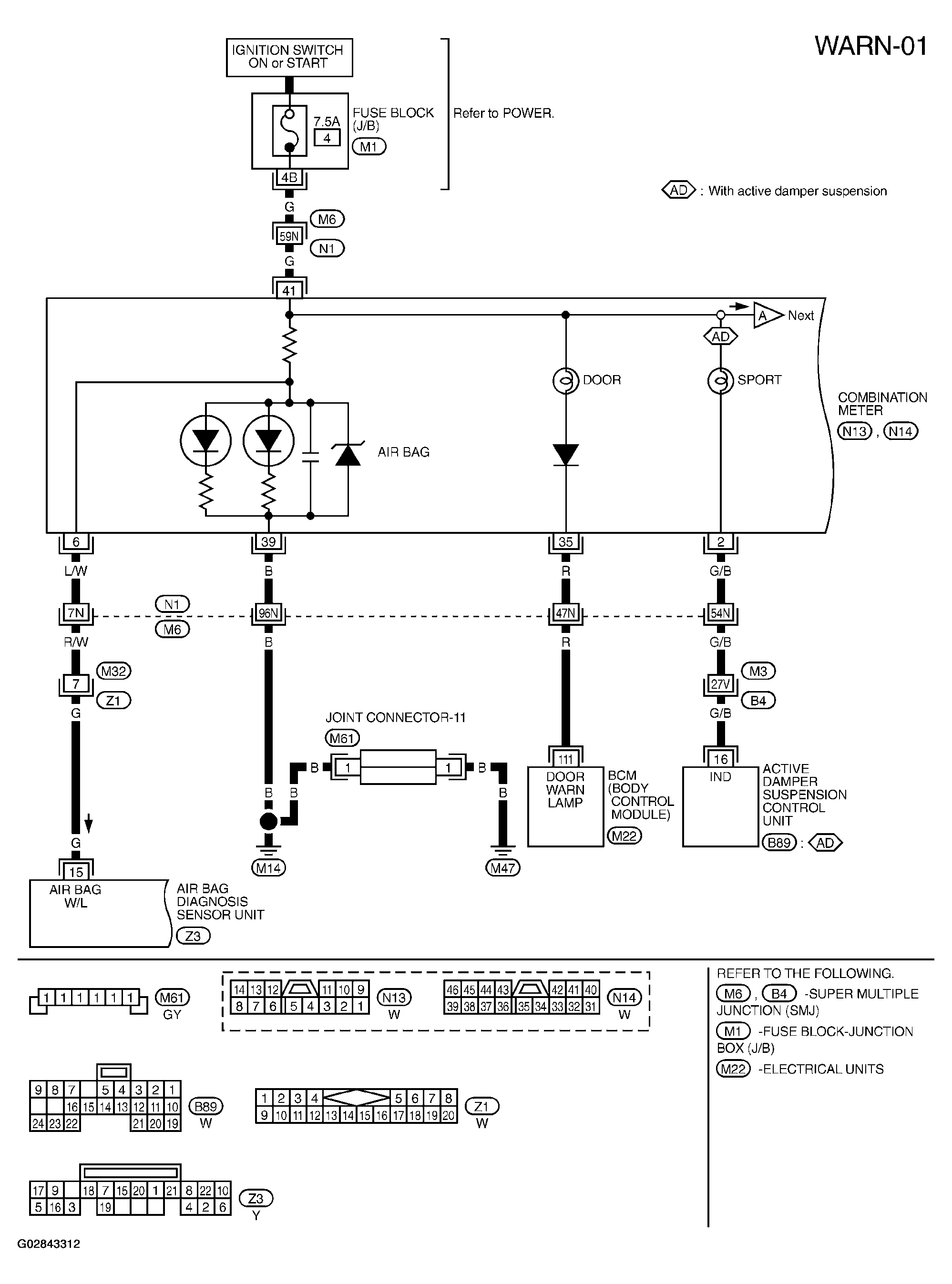

Fig 1: Warning Lamps - Wiring Diagram (1 Of 4)

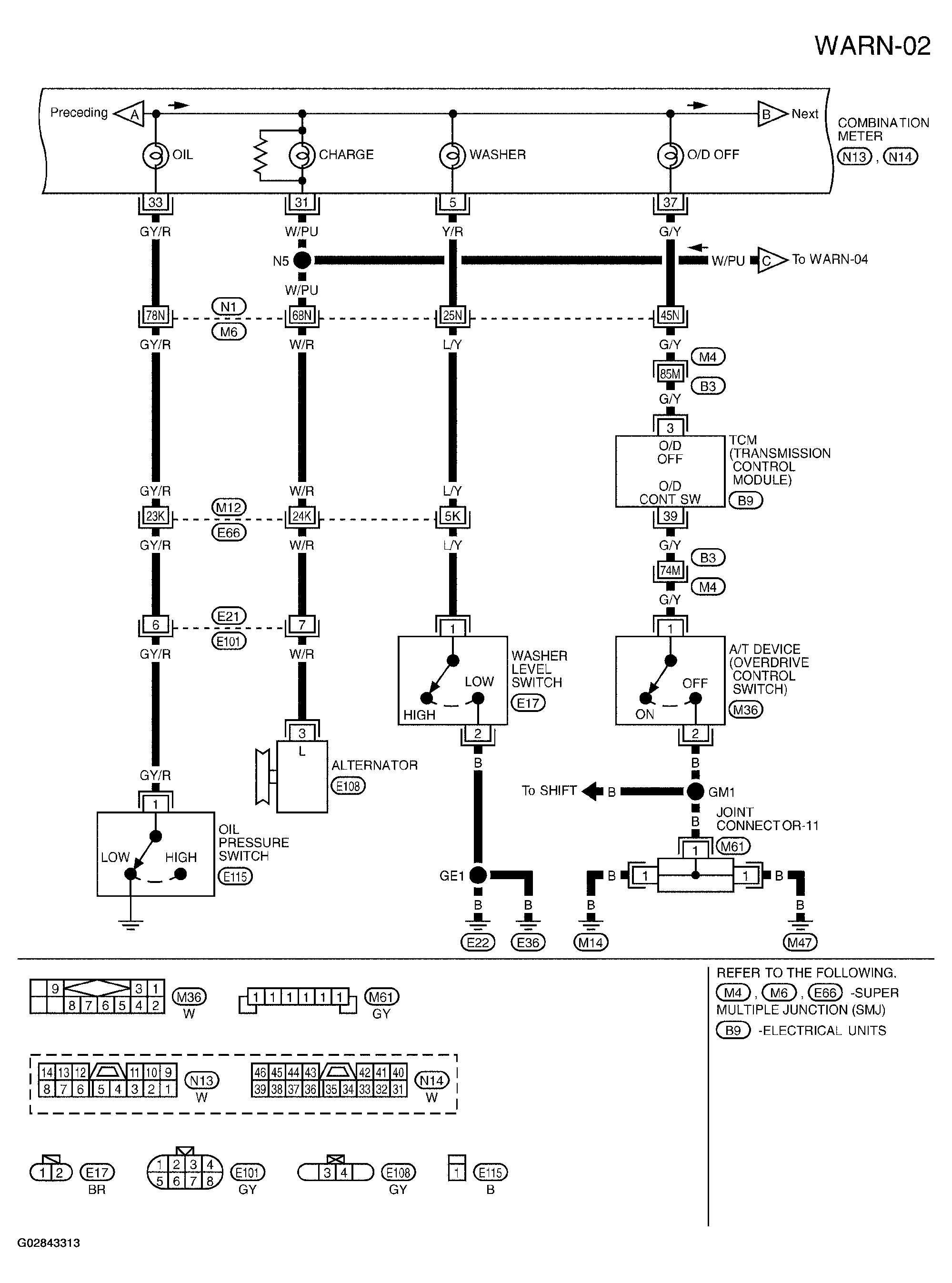

Fig 2: Warning Lamps - Wiring Diagram (2 Of 4)

Fig 3: Warning Lamps - Wiring Diagram (3 Of 4)

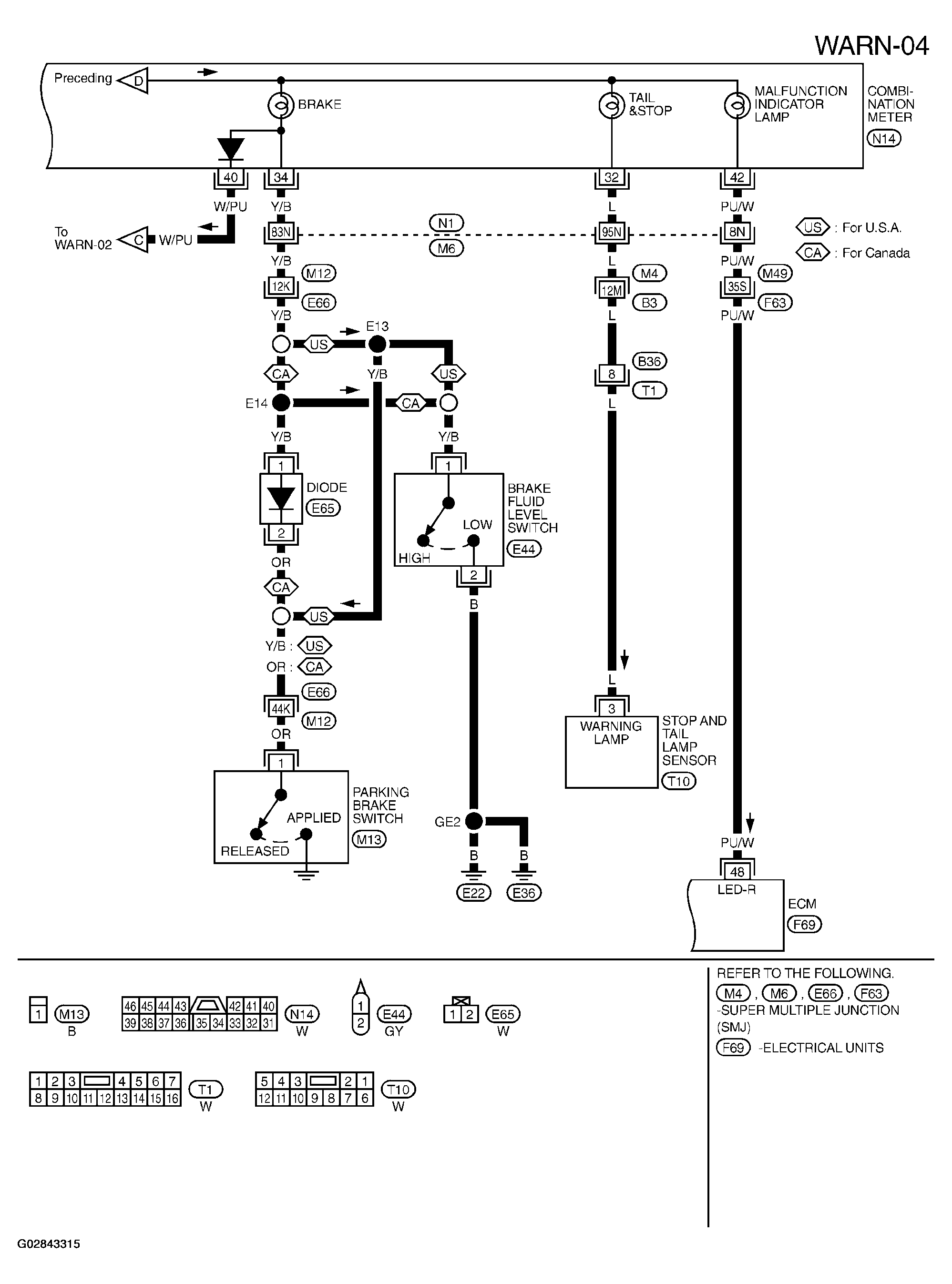

Fig 4: Warning Lamps - Wiring Diagram (4 Of 4)
