Stop And Tail Lamp Sensor Inspection Table

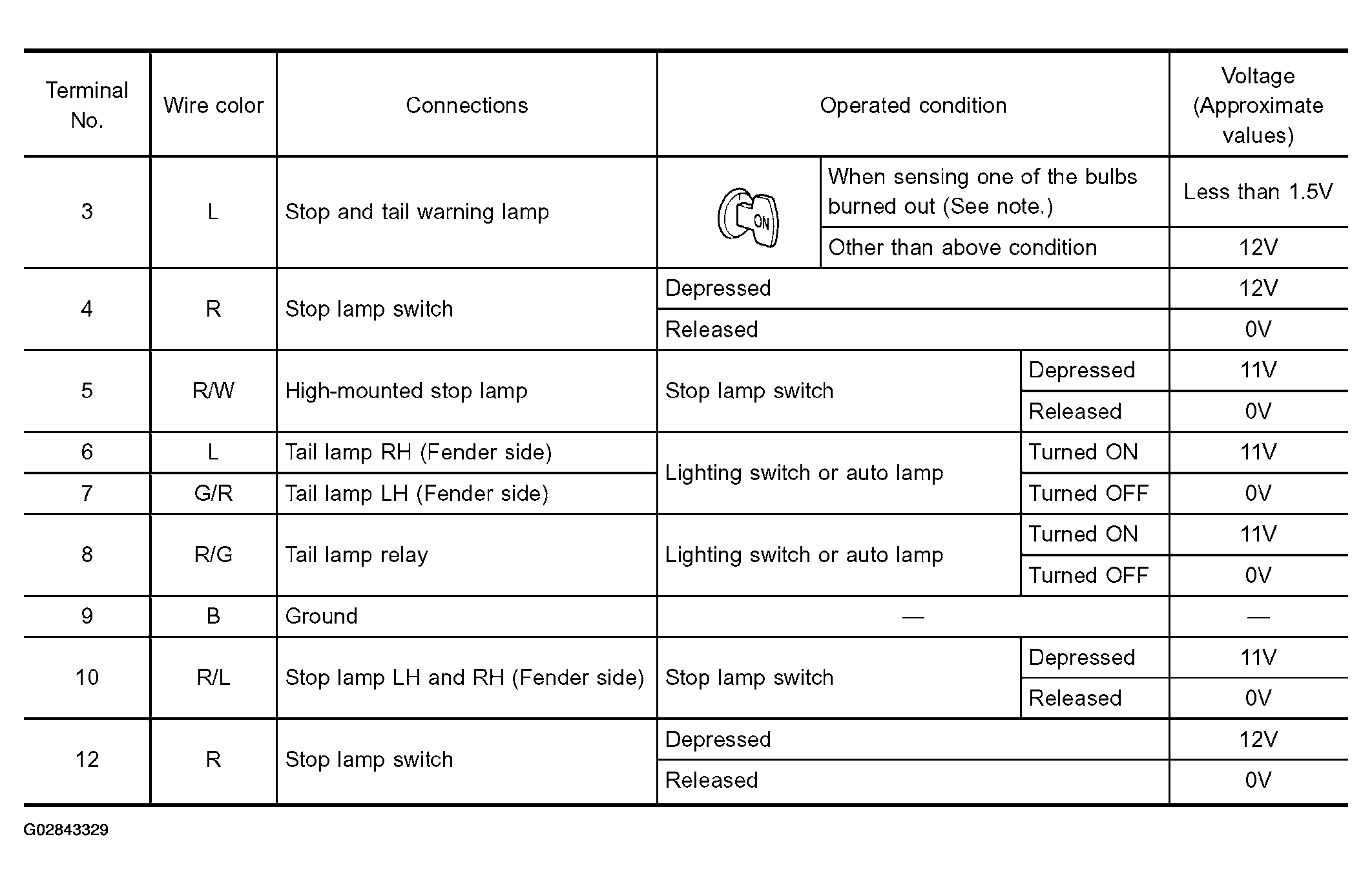

Fig 1: Stop And Tail Lamp Sensor Inspection Table
G02843329
NOTE: The system senses bulb burnout only when the stop lamp switch is depressed for stop lamps or tail lamp relay is energized for tail lamps.
