Trouble Diagnoses/Stop and Tail Lamp Sensor: Notes

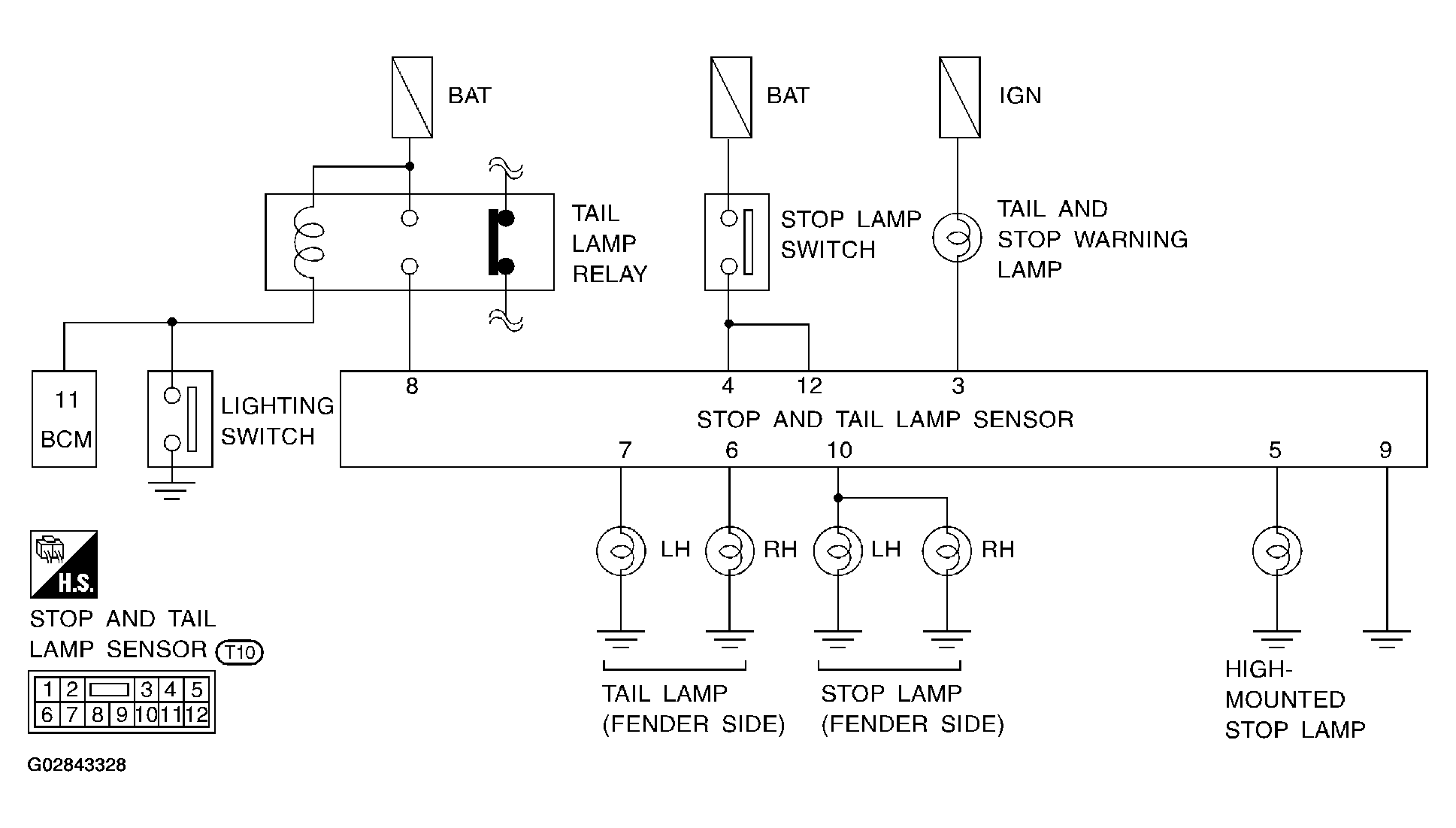

Fig 1: Stop And Tail Lamp Sensor Trouble Diagnoses Diagram

G02843328
