Diagnostic Procedure

SYMPTOM: Door warning lamp is not operating correctly.

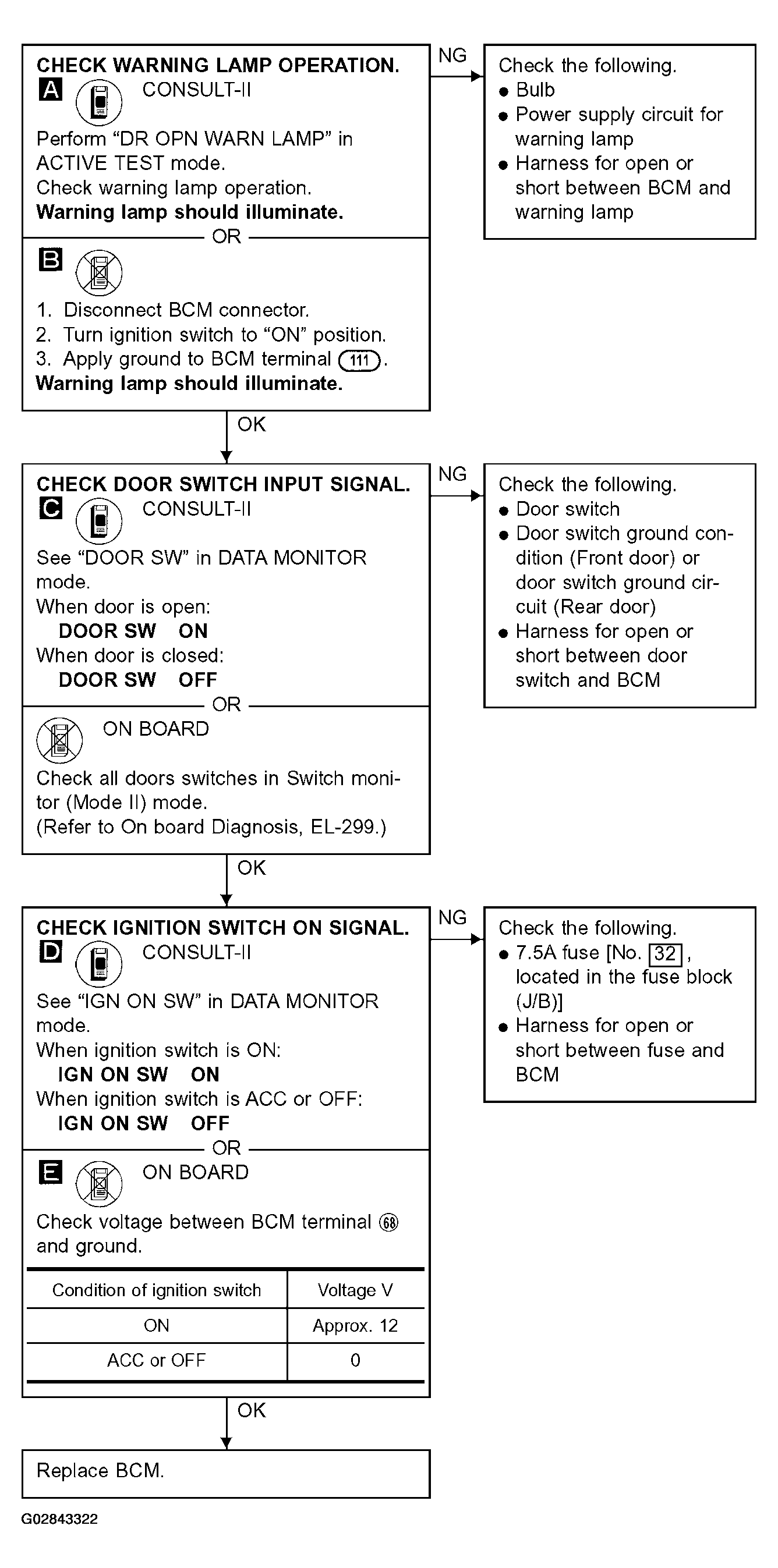

Fig 1: Diagnostic Procedure (Door Warning Lamp Is Not Operating Correctly)

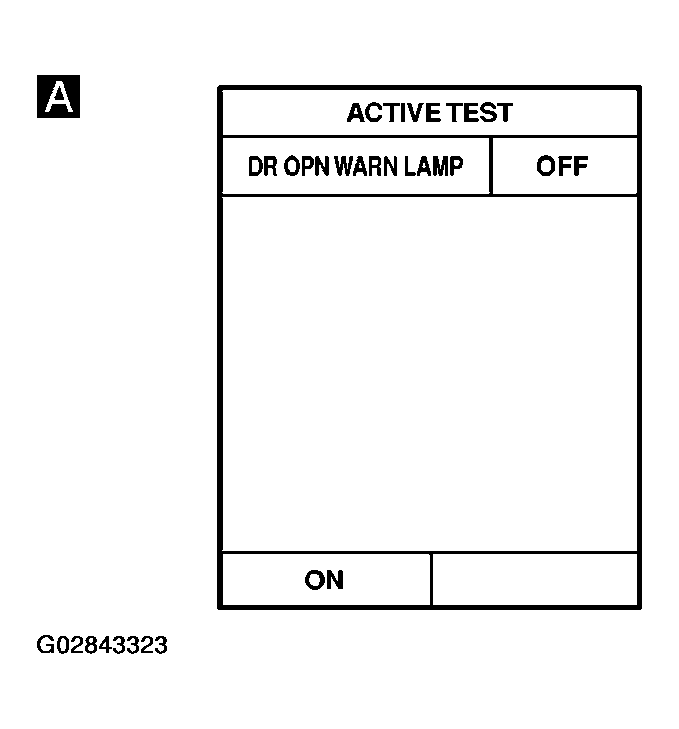

Fig 2: Displaying DR OPEN WARNING LAMP in ACTIVE TEST MODE

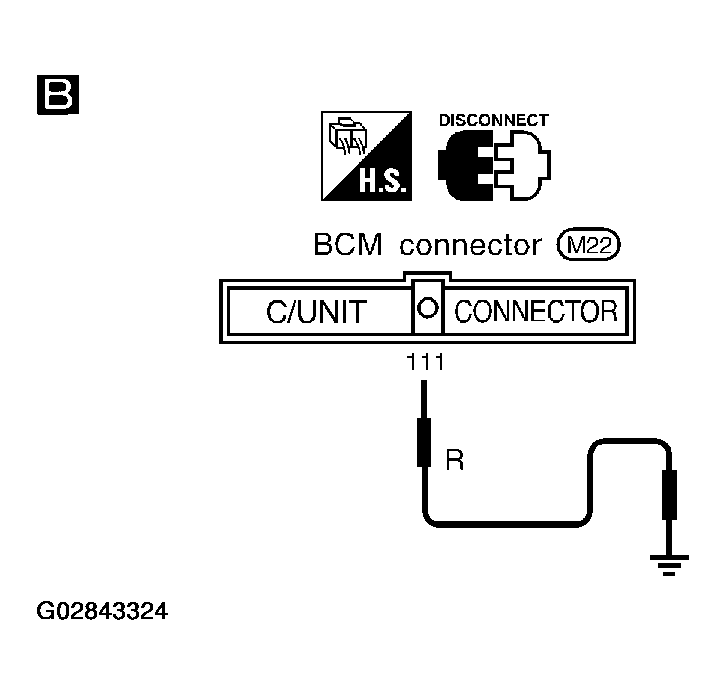

Fig 3: Applying Ground To BCM Terminal

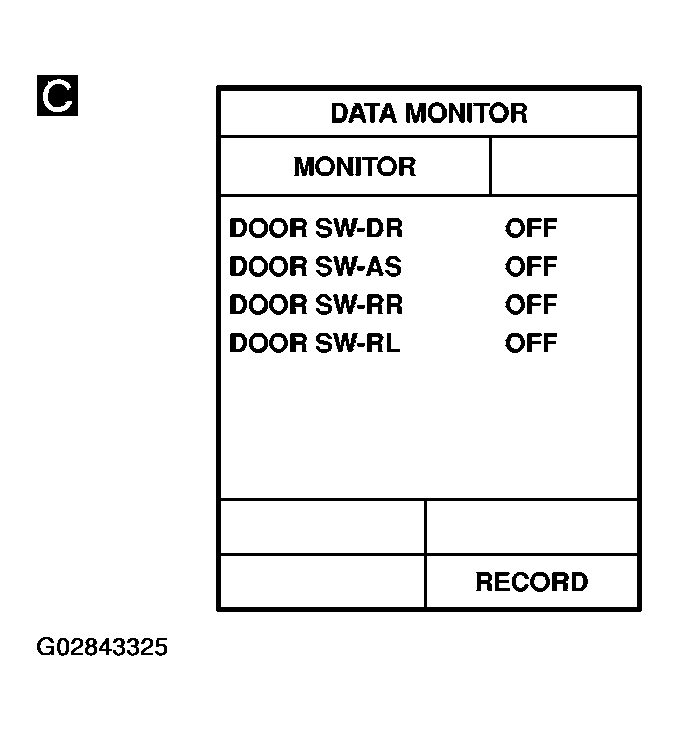

Fig 4: Displaying DOOR SW In DATA MONITOR MODE

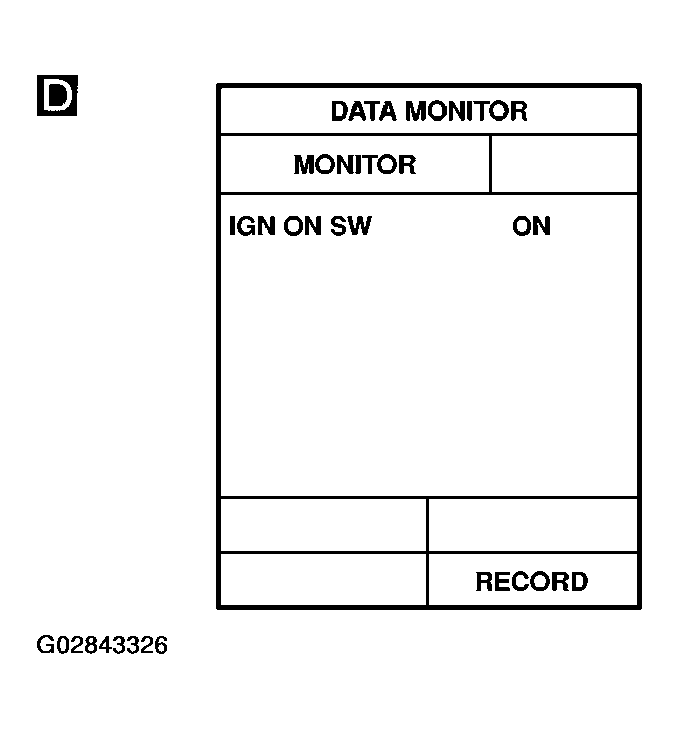

Fig 5: Displaying IGN ON SW In DATA MONITOR MODE

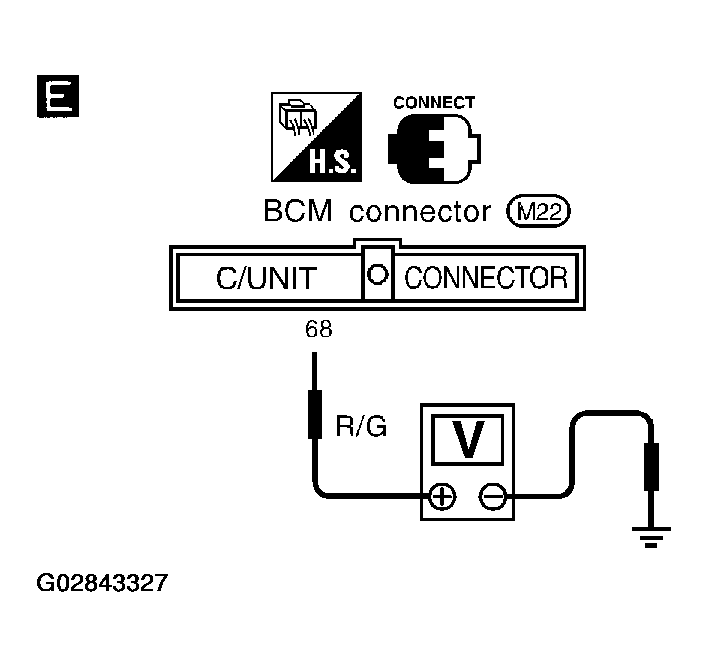

Fig 6: Checking Voltage Between BCM Terminal And Ground
