Consult-II Inspection Procedure

Turn ignition switch "OFF".
Connect "CONSULT-II" to the data link connector.

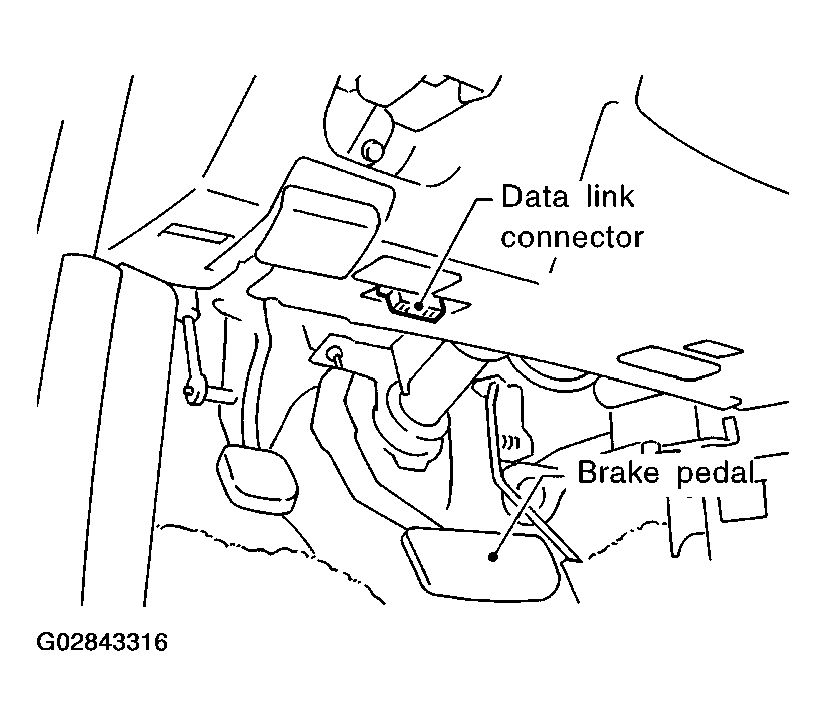

Fig 1: Data Link Connector
Turn ignition switch "ON".
Touch "START".

Fig 2: Displaying START Mode
Touch "IVMS".

Fig 3: Displaying SELECT SYSTEM Mode
Touch "DOOR OPEN WARNING".

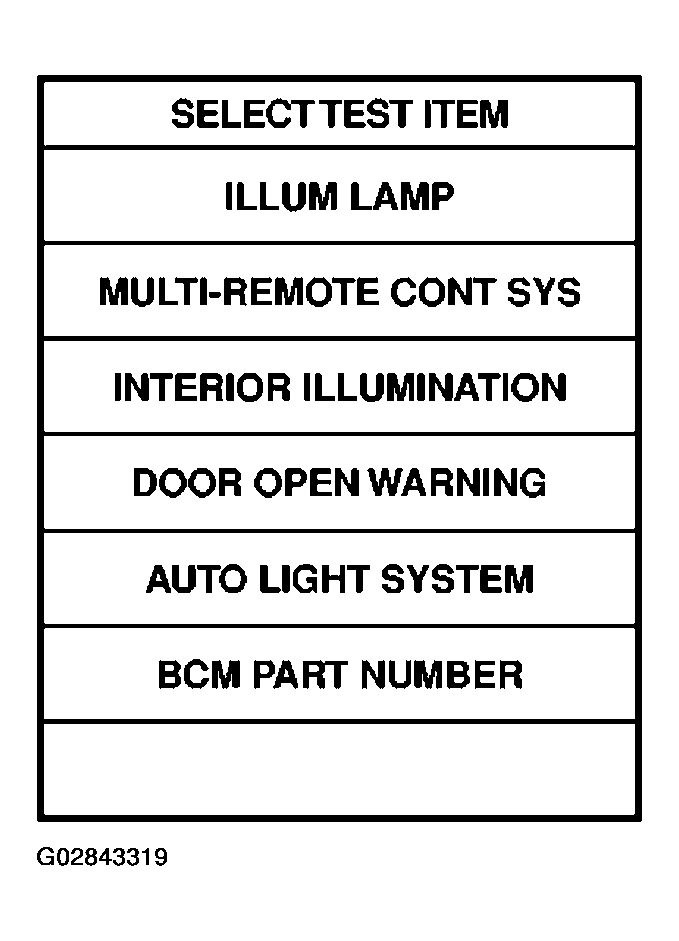

Fig 4: Displaying SELECT TEST ITEM Mode

DATA MONITOR and ACTIVE TEST are available for door open warning lamp.

Fig 5: Displaying SELECT DIAG MODE
