Wiring Diagram - Tail/L

NOTE: For complete wiring diagram information see EXTERIOR LIGHTS .

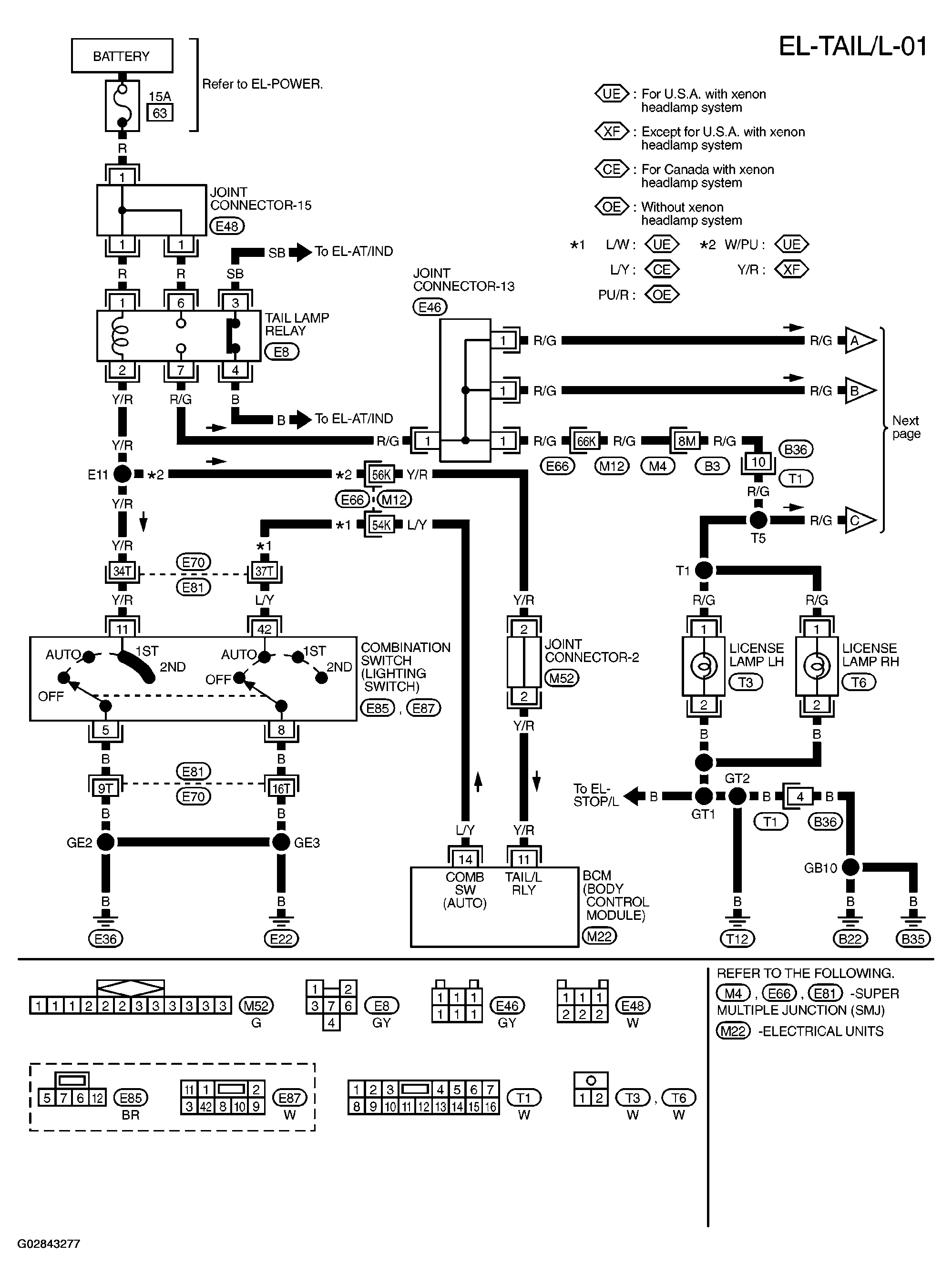

Fig 1: Tail Lamp Wiring Diagram (1 Of 2)

G02843277

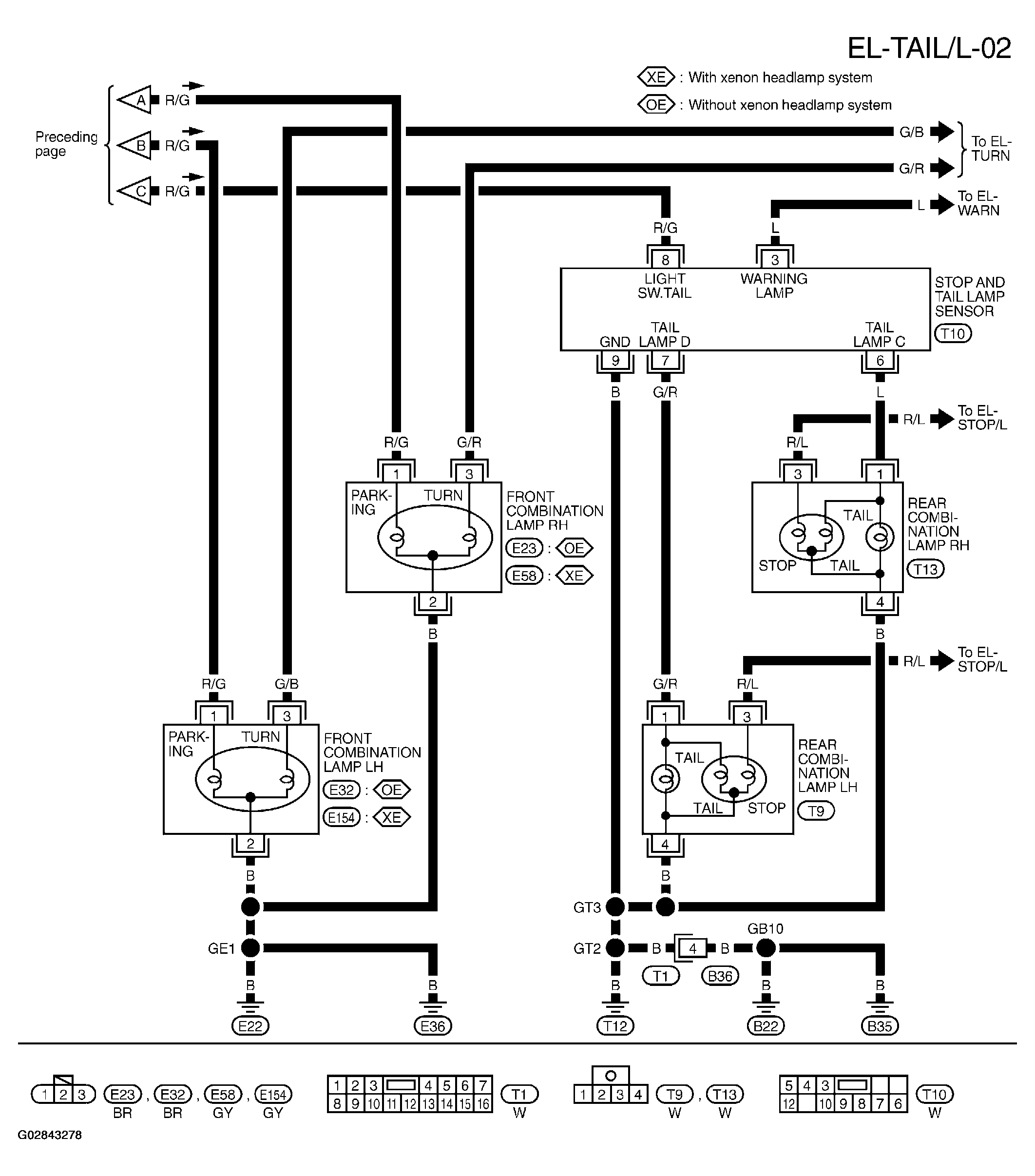

Fig 2: Tail Lamp Wiring Diagram (2 Of 2)

G02843278
