Combination Meter

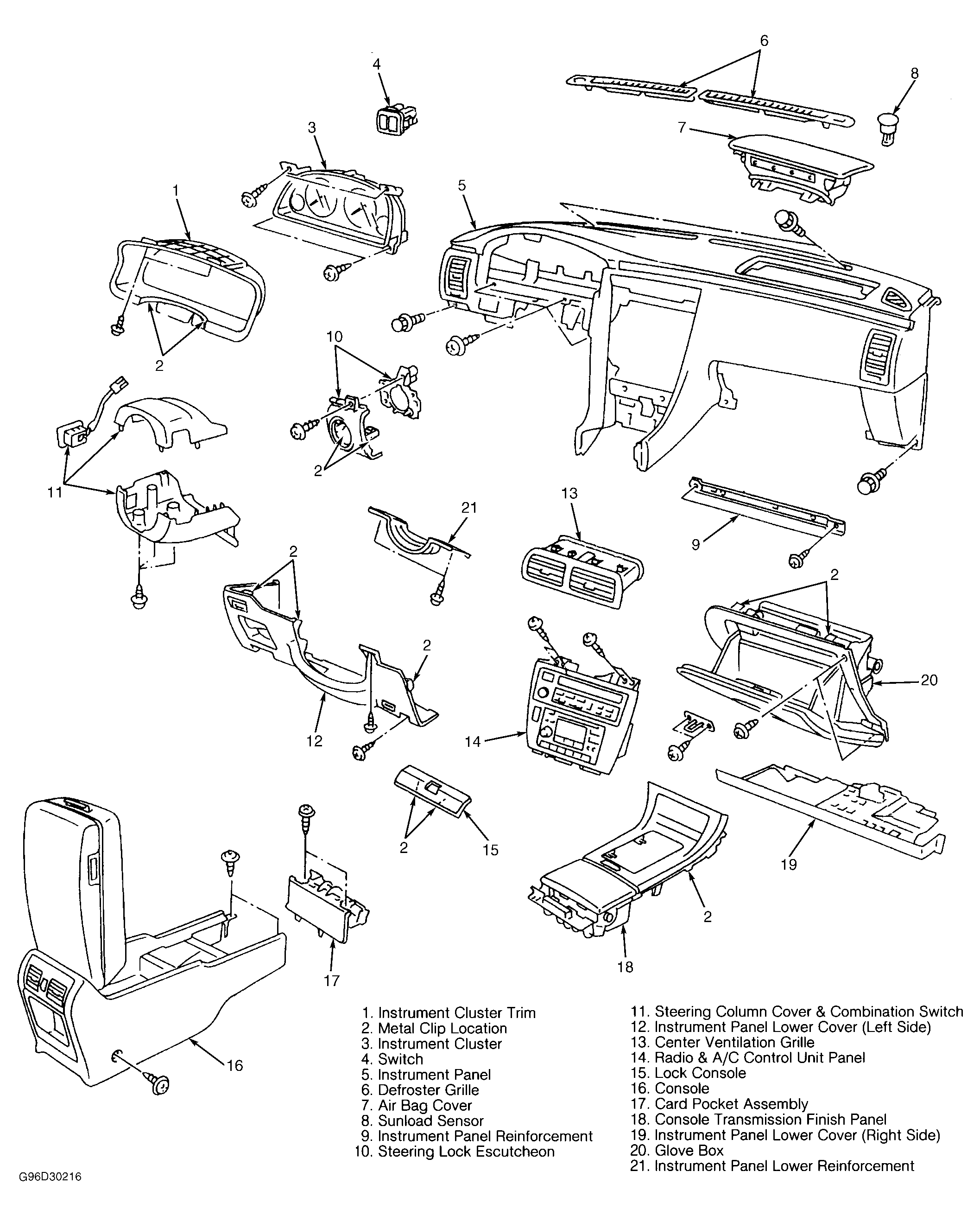

- Disable air bag system. See AIR BAG RESTRAINT SYSTEMS article. Disconnect negative battery cable. Remove steering wheel. Remove lower instrument panel finishers. Remove steering column cover and combination switch. See Figure .
- Remove driver-side lower instrument panel. Remove lower instrument panel reinforcement. Remove instrument cluster lids and steering lock shield. Remove combination meter gauge retaining screws. Pull combination meter (instrument cluster) back enough to disconnect harness connectors. Disconnect harness connectors and remove combination meter. To install, reverse removal procedure.
