Removing & Installing

When removing and installing stabilizer bar, fix portion A. See Fig 1 . Install stabilizer bar with ball joint socket properly placed. See Fig 2 .

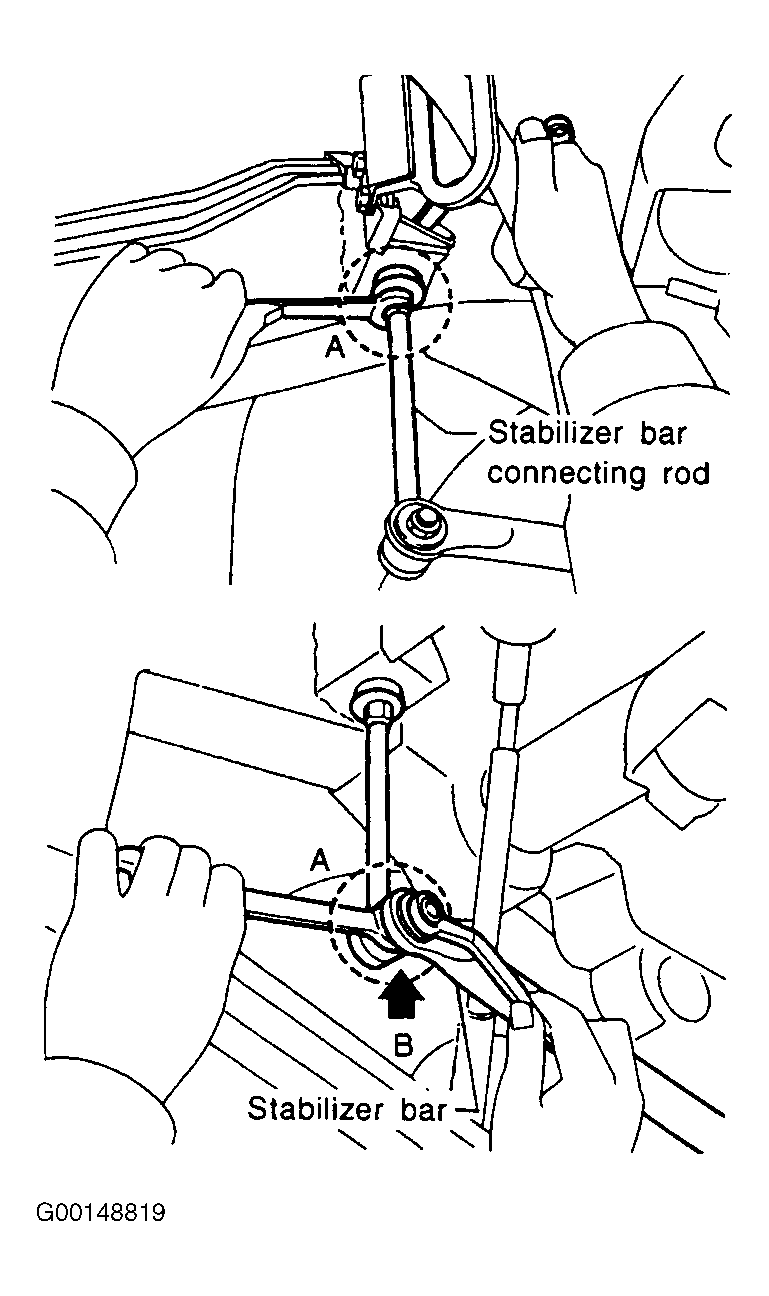

Fig 1: Removing & Installing Stabilizer Bar

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Positioning Stabilizer Bar Ball Joint Socket

Courtesy of NISSAN MOTOR CO., U.S.A.
