Removal (Pathfinder & QX4)

For removal procedures, see Fig 1-Fig 3 .

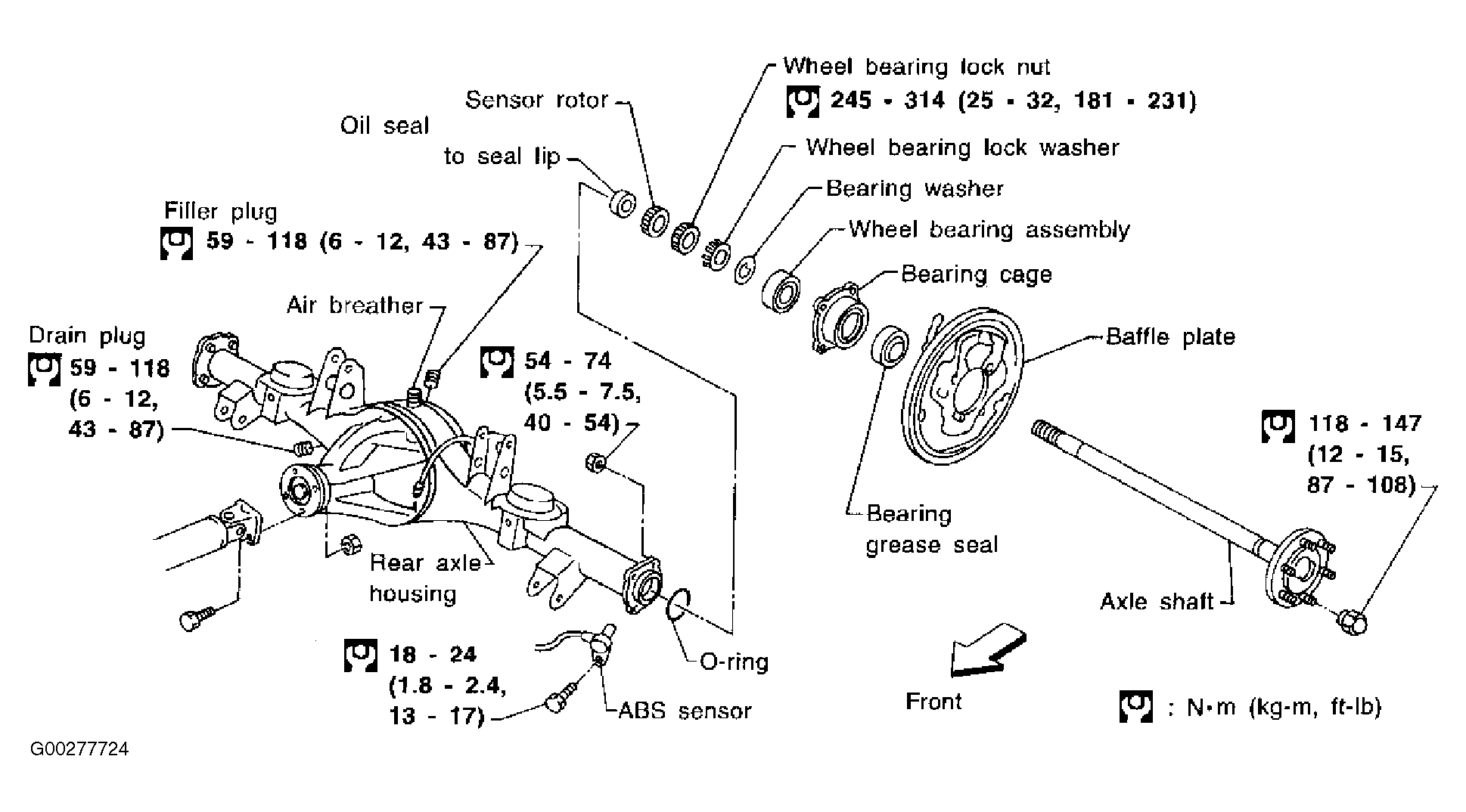

Fig 1: Exploded View Of Rear Axle Housing (Pathfinder & QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

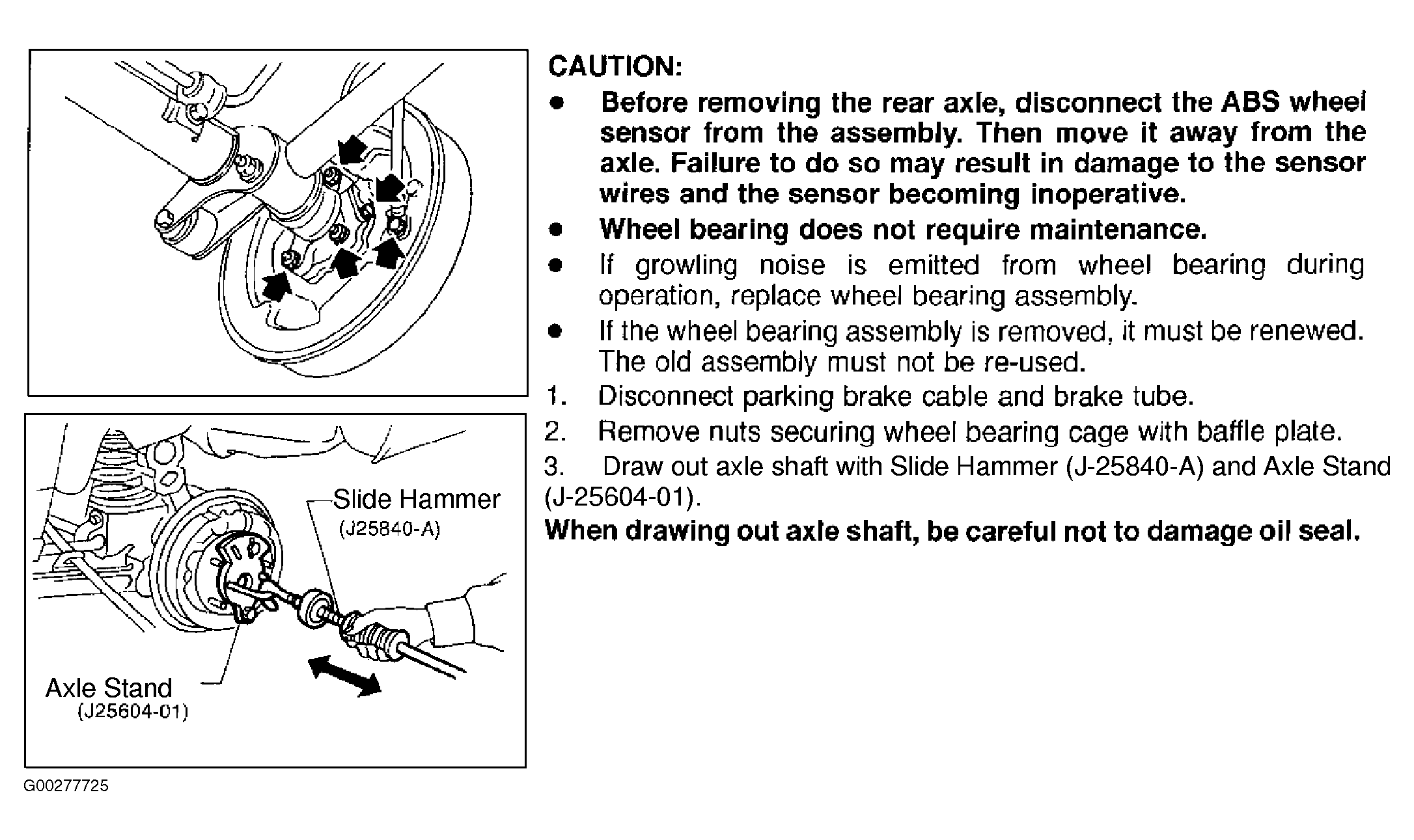

Fig 2: Removing Axle Shaft (Pathfinder & QX4 - Steps 1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

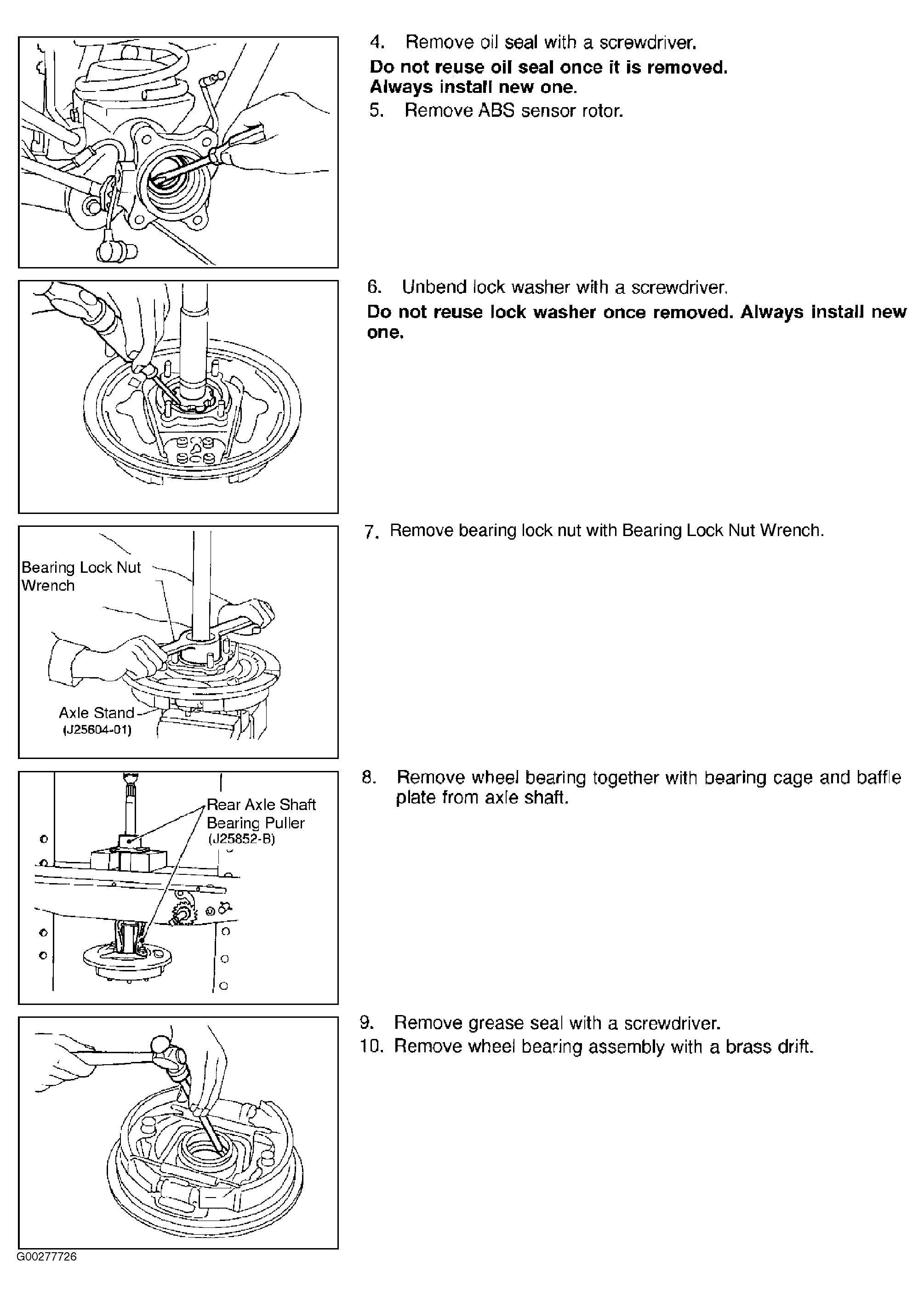

Fig 3: Removing Axle Shaft (Pathfinder & QX4 - Steps 4-10)

Courtesy of NISSAN MOTOR CO., U.S.A.
