Removal (Frontier)

For removal procedures, see Fig 1-Fig 3.

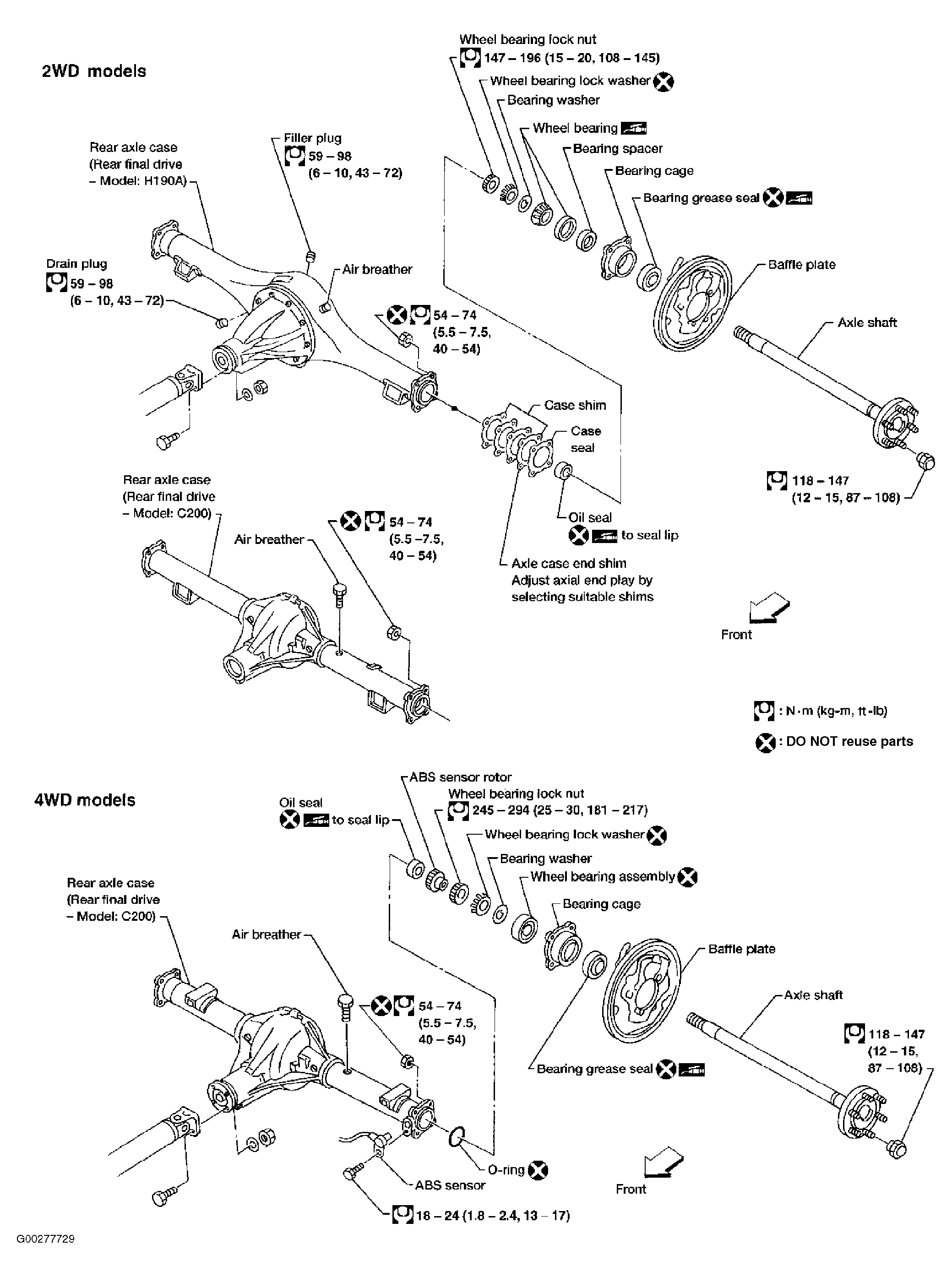

Fig 1: Exploded View Of Rear Axle Housing (Frontier 2WD & 4WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

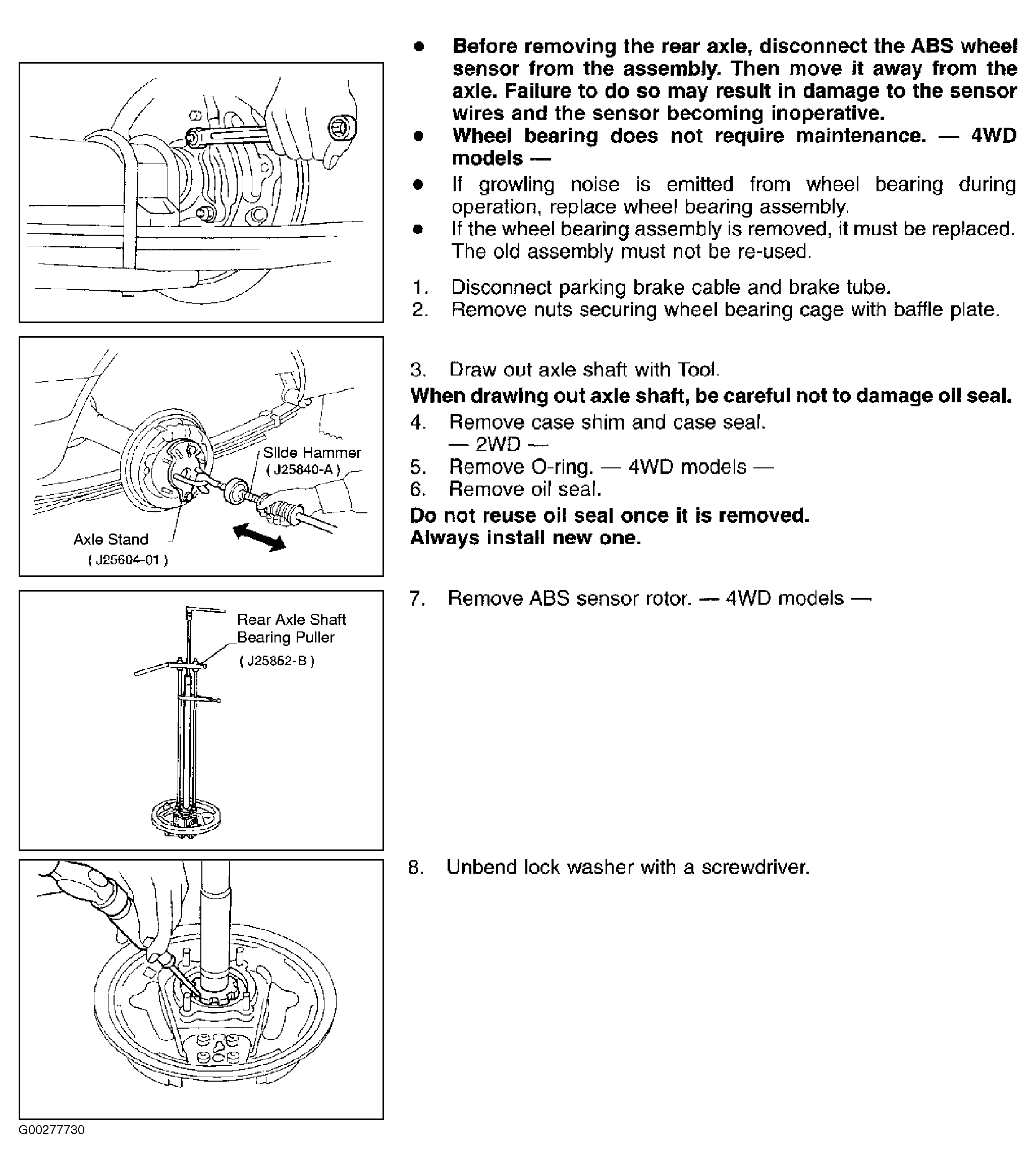

Fig 2: Removing Axle Shaft (Frontier 2WD & 4WD - Steps 1-8)

Courtesy of NISSAN MOTOR CO., U.S.A.

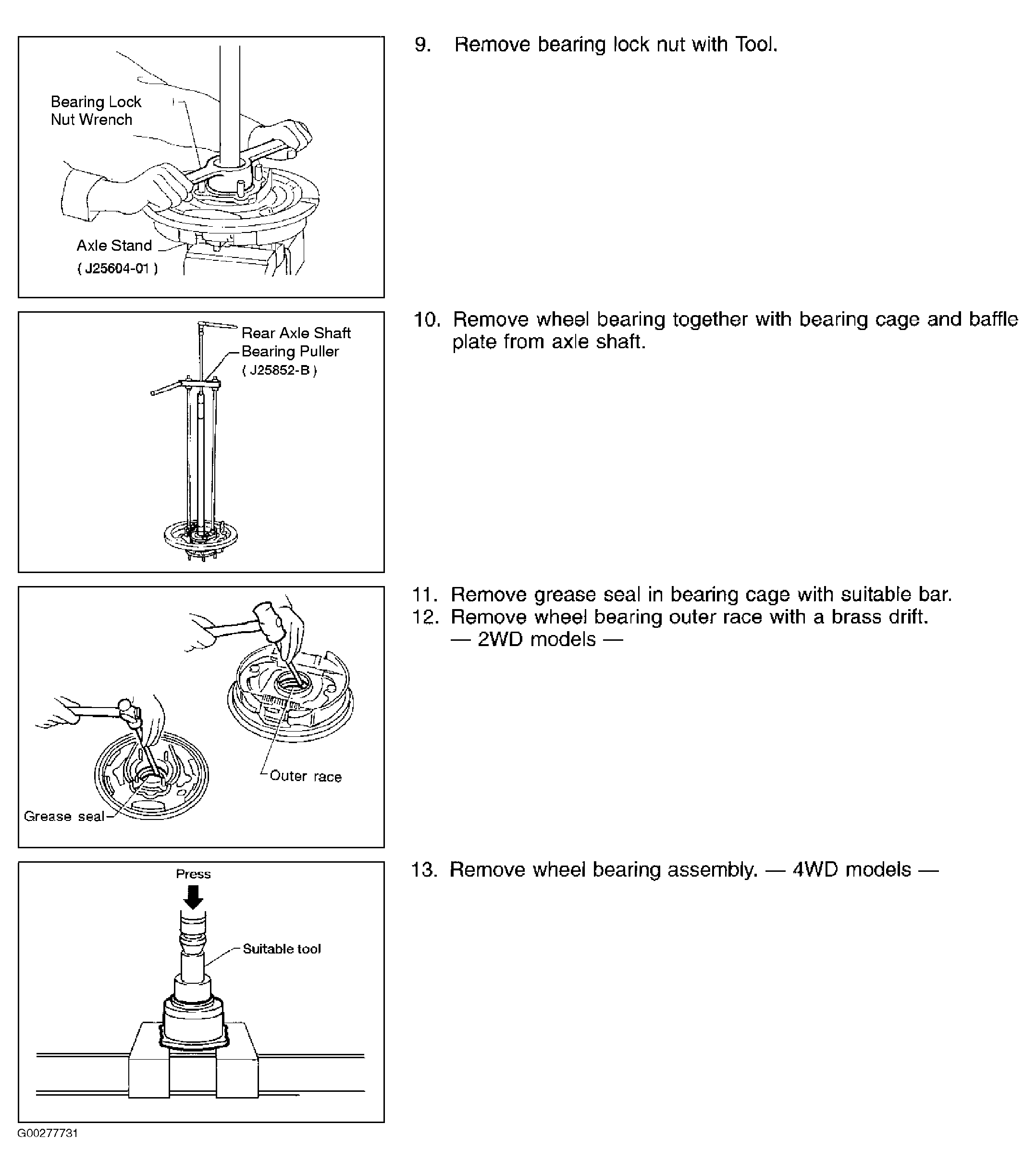

Fig 3: Removing Axle Shaft (Frontier 2WD & 4WD - Steps 9-13)

Courtesy of NISSAN MOTOR CO., U.S.A.
