Drive Axle - Rear - H190A & H233B
>>
Removal & Installation
>>
Axle Shafts & Bearings
>>
Installation (Pathfinder & QX4)
Installation (Pathfinder & QX4)
For installation procedures, see
Fig 1
-
Fig 2
.

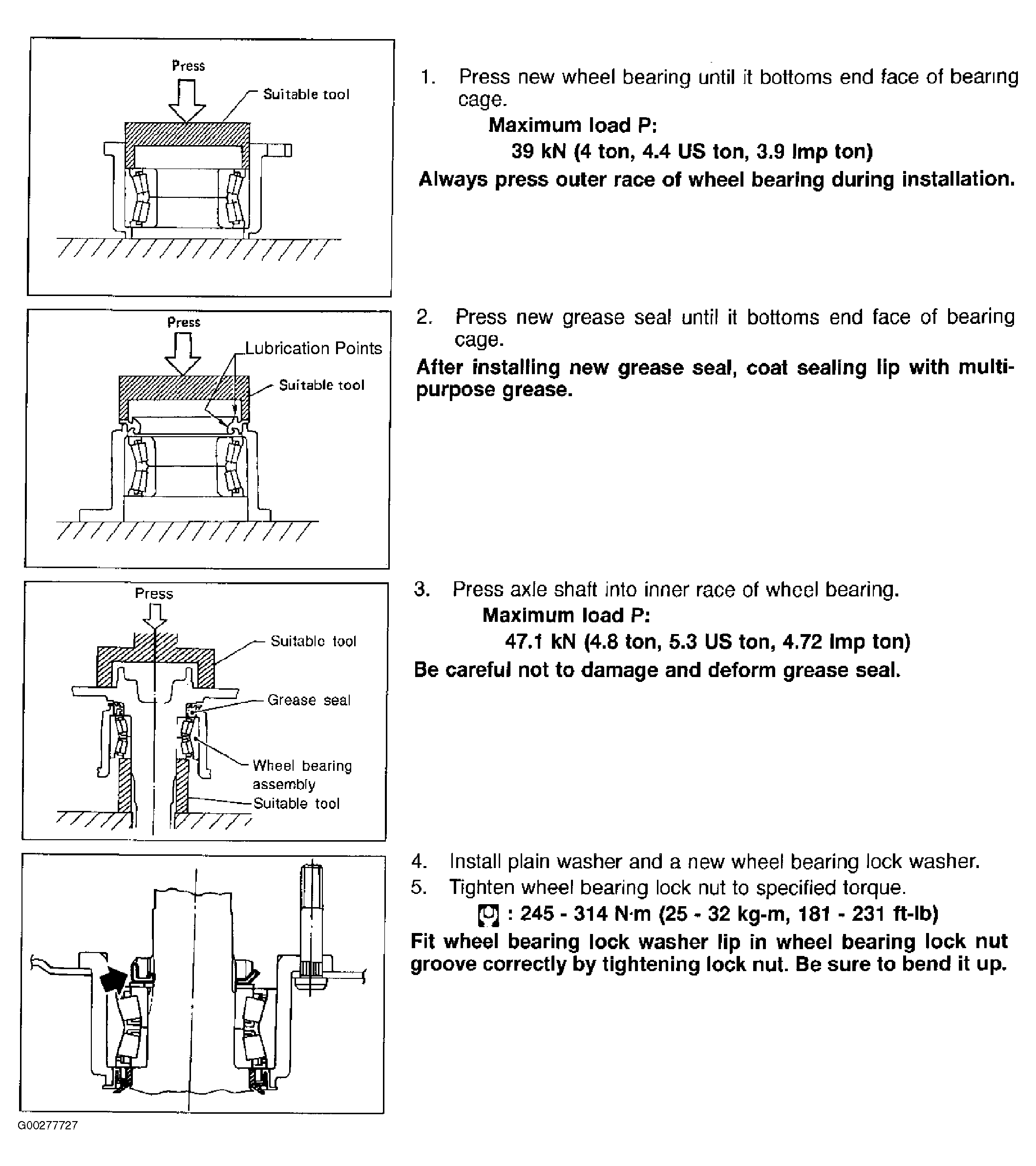

Fig 1: Installing Axle Shaft (Pathfinder & QX4 - Steps 1-5)
Courtesy of NISSAN MOTOR CO., U.S.A.

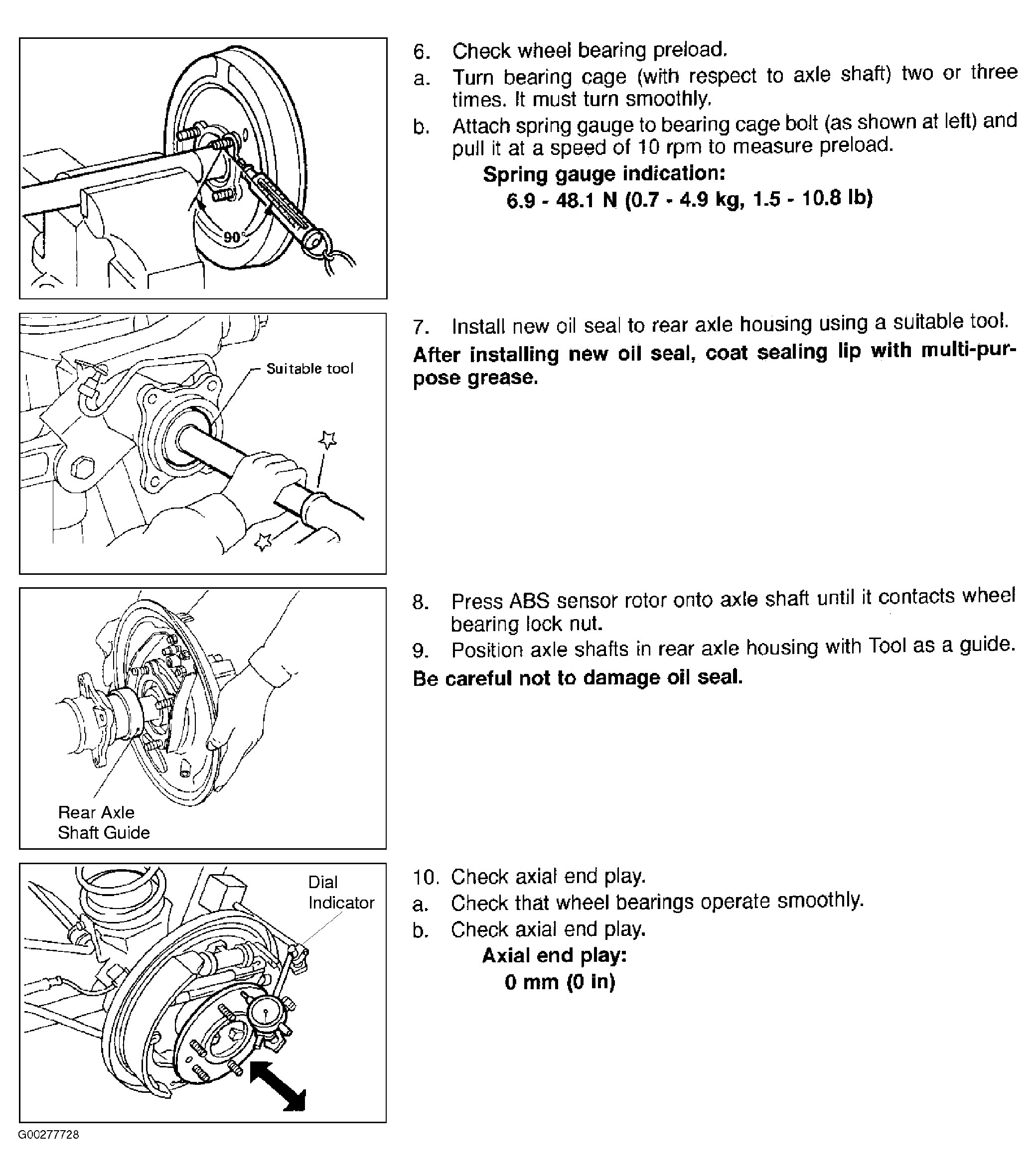

Fig 2: Installing Axle Shaft (Pathfinder & QX4 - Steps 6-10)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
