Installation (Frontier)

NOTE: If necessary, use the axle shaft shim selection table to adjust axle end play with proper shim. See AXLE SHAFT SHIM SELECTION .

For installation procedures on 2WD models, see Fig 1 and Fig 2 . For installation procedures on 4WD models, see Fig 3 and Fig 4 .

AXLE SHAFT SHIM SELECTION

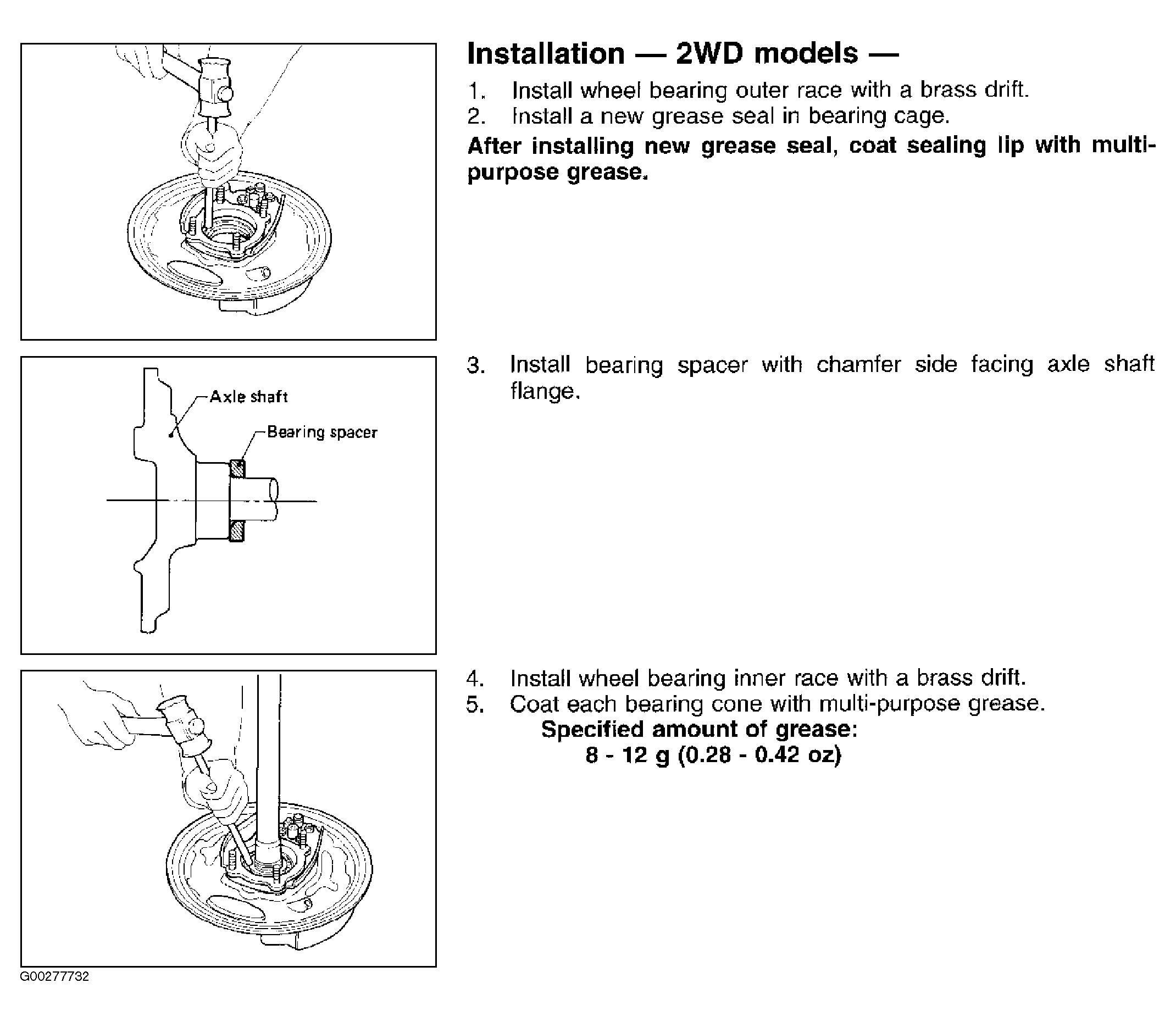

Fig 1: Installing Axle Shaft (Frontier 2WD - Steps 1-5)

Courtesy of NISSAN MOTOR CO., U.S.A.

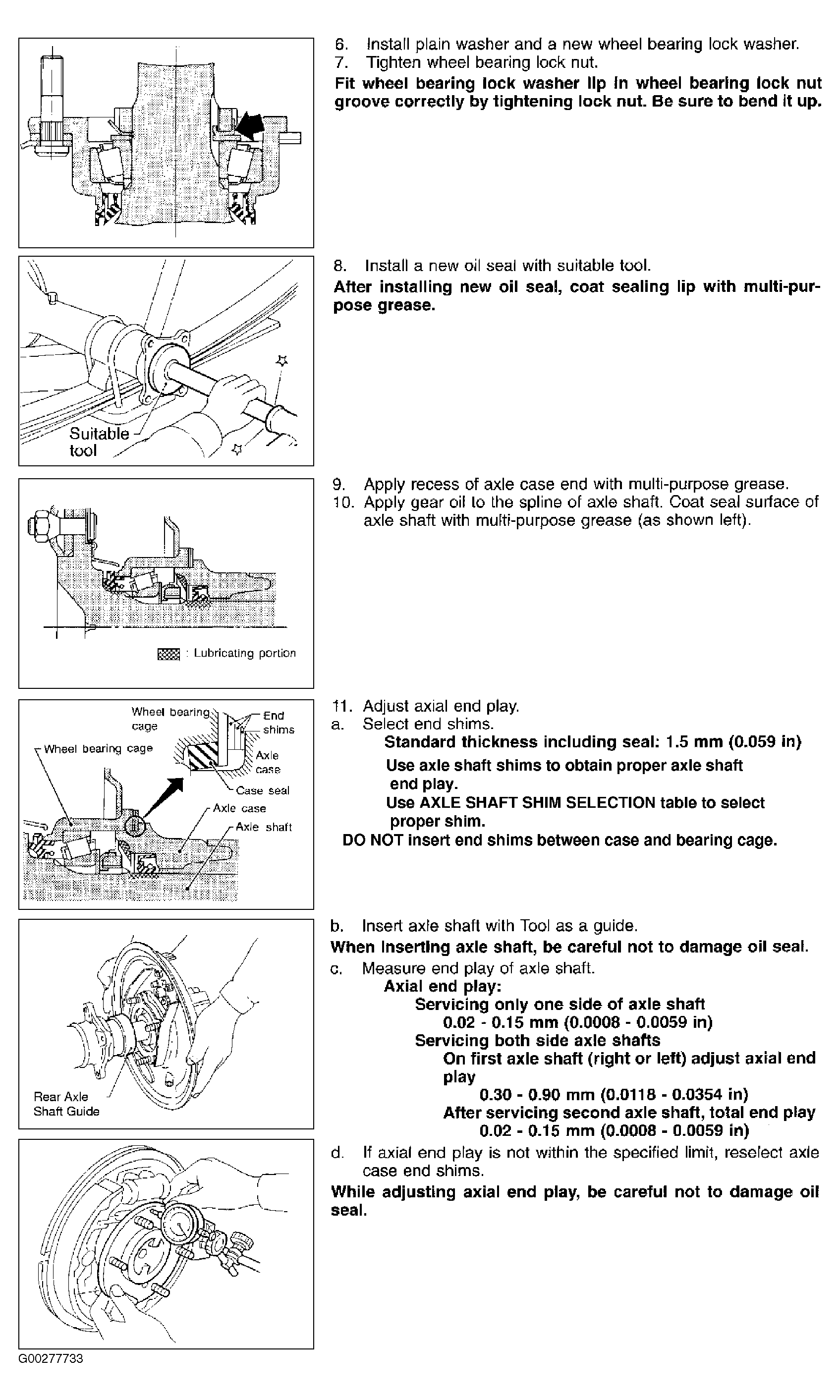

Fig 2: Installing Axle Shaft (Frontier 2WD - Steps 6-11)

Courtesy of NISSAN MOTOR CO., U.S.A.

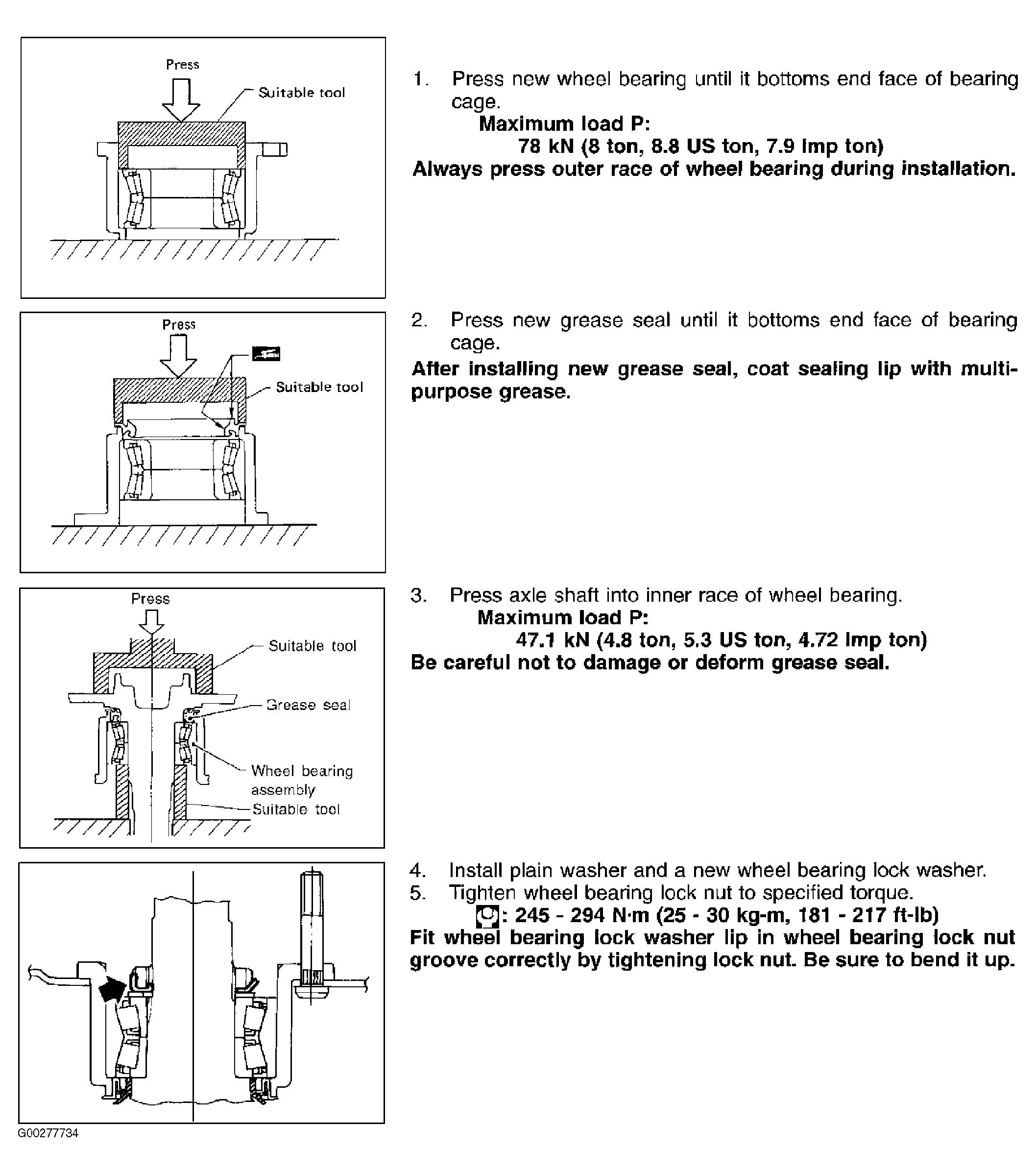

Fig 3: Installing Axle Shaft (Frontier 4WD - Steps 1-5)

Courtesy of NISSAN MOTOR CO., U.S.A.

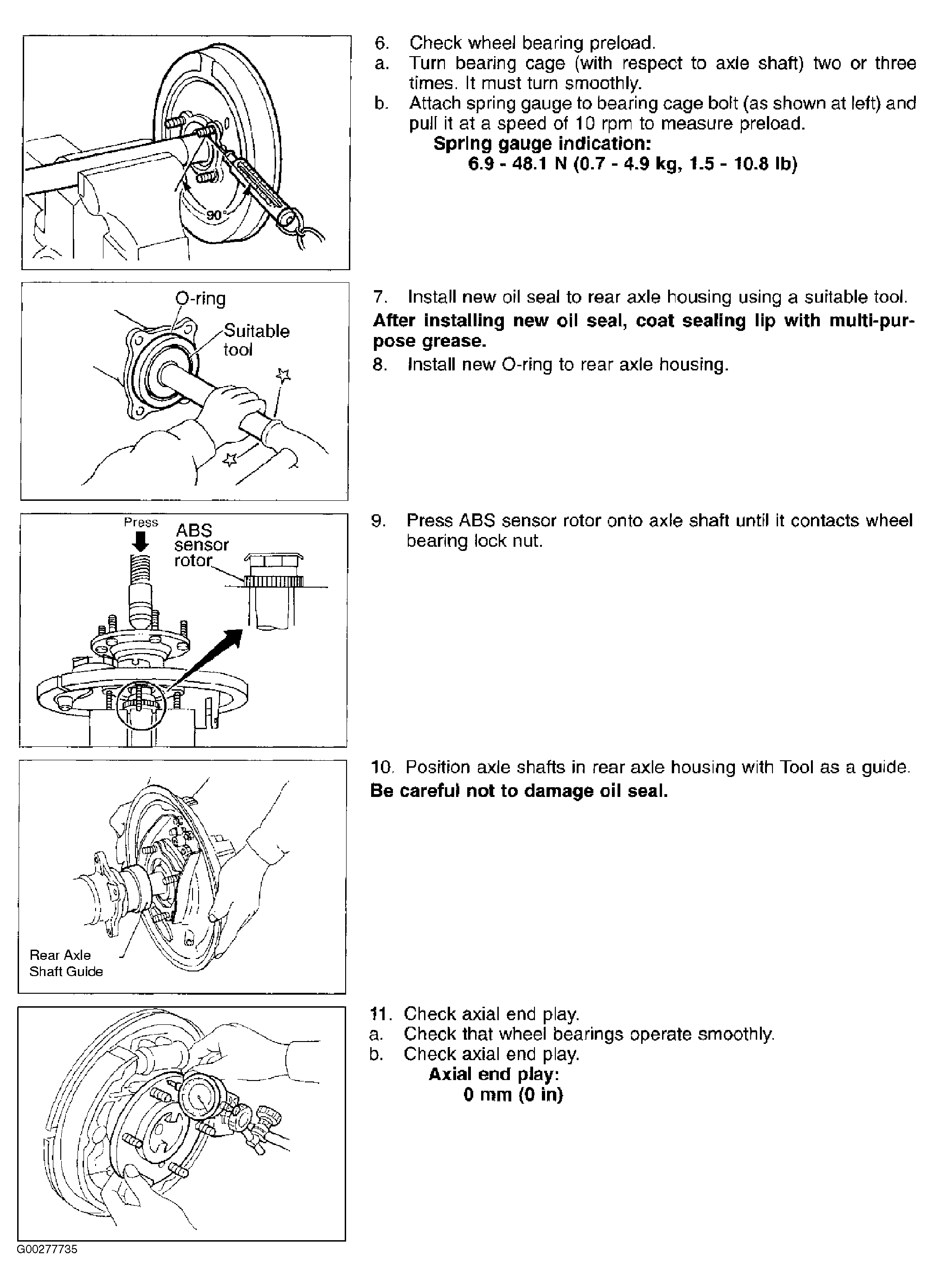

Fig 4: Installing Axle Shaft (Frontier 4WD - Steps 6-11)

Courtesy of NISSAN MOTOR CO., U.S.A.
